1692041 - Simplicity Snow Thrower Hitch Snowthrower Hitch - Bracket & Lift Rod Group Parts Diagram

Snow Thrower Hitch

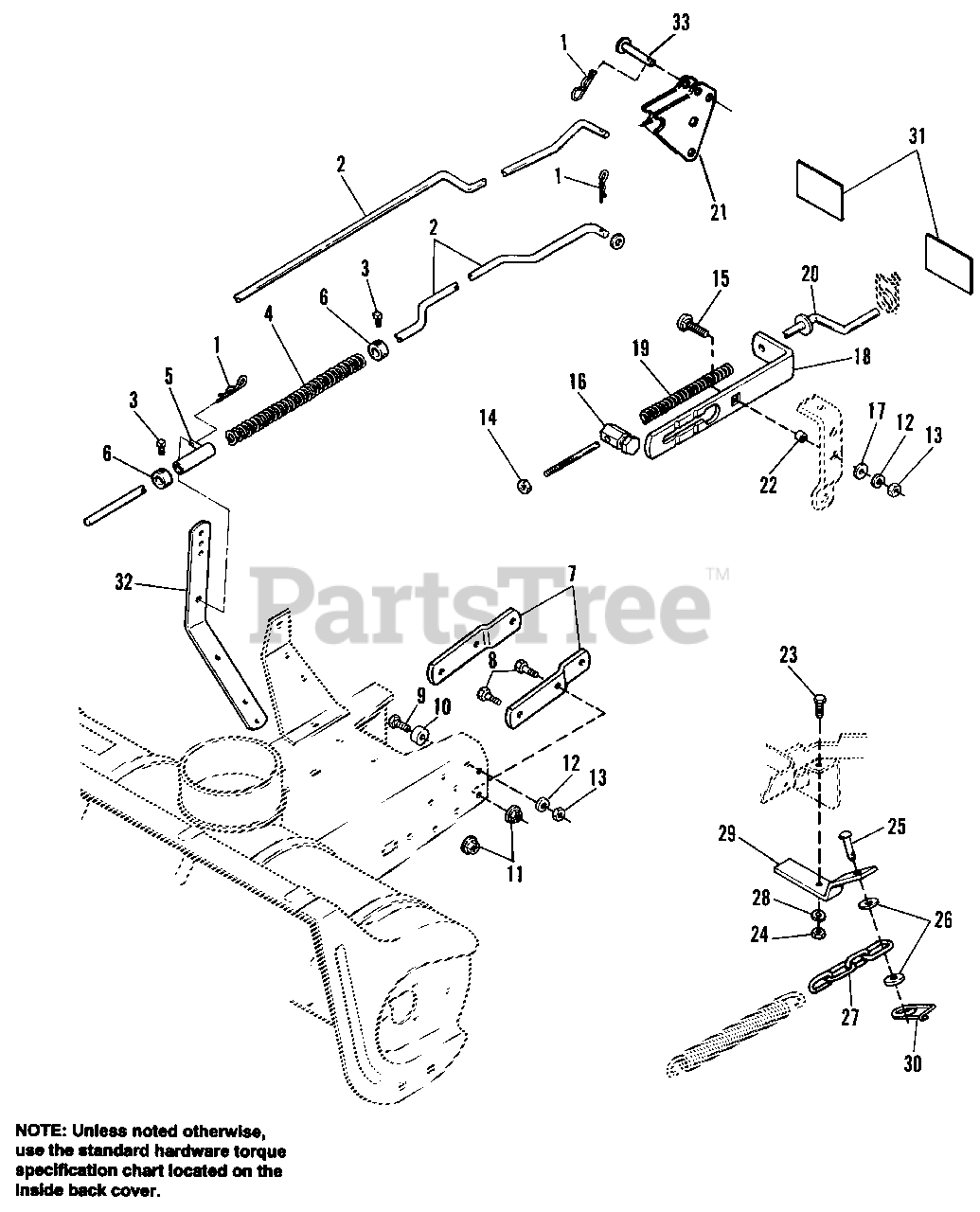

Snowthrower Hitch - Bracket & Lift Rod Group Parts Diagram

  • Title

1

Simplicity 1960033SM

CLIP, Spring

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1665887SM

ROD, Lift (Manual Lift Only)

$69.99

$

Usually ships in 2-12 days

0

2

Snapper 1707542SM

ROD, Lift (Electric Lift Only)

$

$

Not available

3

Simplicity 1928721SM

SETSCREW, 5/16 x 1/2

$4.99

$

In Stock, only 3 left!

0

4

Simplicity 2171011SM

SPRING

$75.99

$

In Stock, only 1 left!

0

5

Simplicity 2171679SM

GUIDE ASSY., Rod

$76.99

$

Usually ships in 2-12 days

0

6

Simplicity 1729258SM

COLLAR, Set
(Superseded to 5010477YP)

$

$

Not available

7

Simplicity 2177565ASM

CLIP, Frame

$13.99

$

In Stock, only 2 left!

0

8

Simplicity 1920676SM

CAPSCREW, Hex, 7/16 x 1

$5.49

$

In Stock, Qty 12

0

9

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4 (Manual Lift Only)
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

10

Simplicity 2174242SM

SPACER (Manual Lift Only)

$14.99

$

Usually ships in 2-12 days

0

11

Simplicity 1930650SM

LOCKNUT, Hex, Flange, 7/16-14

$5.49

$

In Stock, only 4 left!

0

12

Simplicity 1916965SM

LOCKWASHER (Manual Lift Only)
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

13

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16 (Manual Lift Only)
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1930645SM

LOCKNUT, Hex, Full, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Simplicity 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 10

0

16

Simplicity 1704743SM

TRUNION

$37.99

$

Usually ships in 2-12 days

0

17

Simplicity 1924940SM

WASHER, Plain, 5/16
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1722972SM

GUIDE, Spring
(Superseded to 1722972ASM)

$79.99

$

Usually ships in 2-12 days

0

19

Simplicity 1668282SM

SPRING

$22.99

$

Usually ships in 2-12 days

0

20

Simplicity 1723681SM

ROD ASSY., Adjustment
(Superseded to 1757604YP)

$92.99

$

Usually ships in 2-12 days

0

21

Simplicity 1686765SM

LIFT ARM ASSY. (Incl. Ref. No. 33 and Qty. 1 Ref. No. 1)

$170.99

$

Usually ships in 2-12 days

0

22

Simplicity 2158227SM

SPACER

$32.99

$

In Stock, only 1 left!

0

23

Simplicity 1921333SM

CAPSCREW, Hex, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

24

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1655651SM

PIN, Hitch
(Superseded to 1733568SM)

$6.99

$

In Stock, only 2 left!

0

26

Simplicity 1919381SM

WASHER, Plain
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

27

Simplicity 1669241SM

CHAIN, 4-Link

$7.99

$

Usually ships in 2-12 days

0

28

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1704757SM

BRACKET, Spring Anchor
(Superseded to 1704757ASM)

$29.99

$

Usually ships in 2-12 days

0

30

Simplicity 2176012SM

CLIP, Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1701600SM

REFLECTOR

$11.99

$

Usually ships in 2-12 days

0

32

Simplicity 1707522A

ARM, Support

$

$

Not available

33

Simplicity 1729275SM

PIN, Round Hd., Drilled, 1/2 x 2-1/2

$18.99

$

Usually ships in 2-12 days

0
