1692032 - Simplicity Electric Lift Kit Group Electric Lift Kit - Power Lift Assembly (P/N 1706733) Parts Diagram

Electric Lift Kit Group

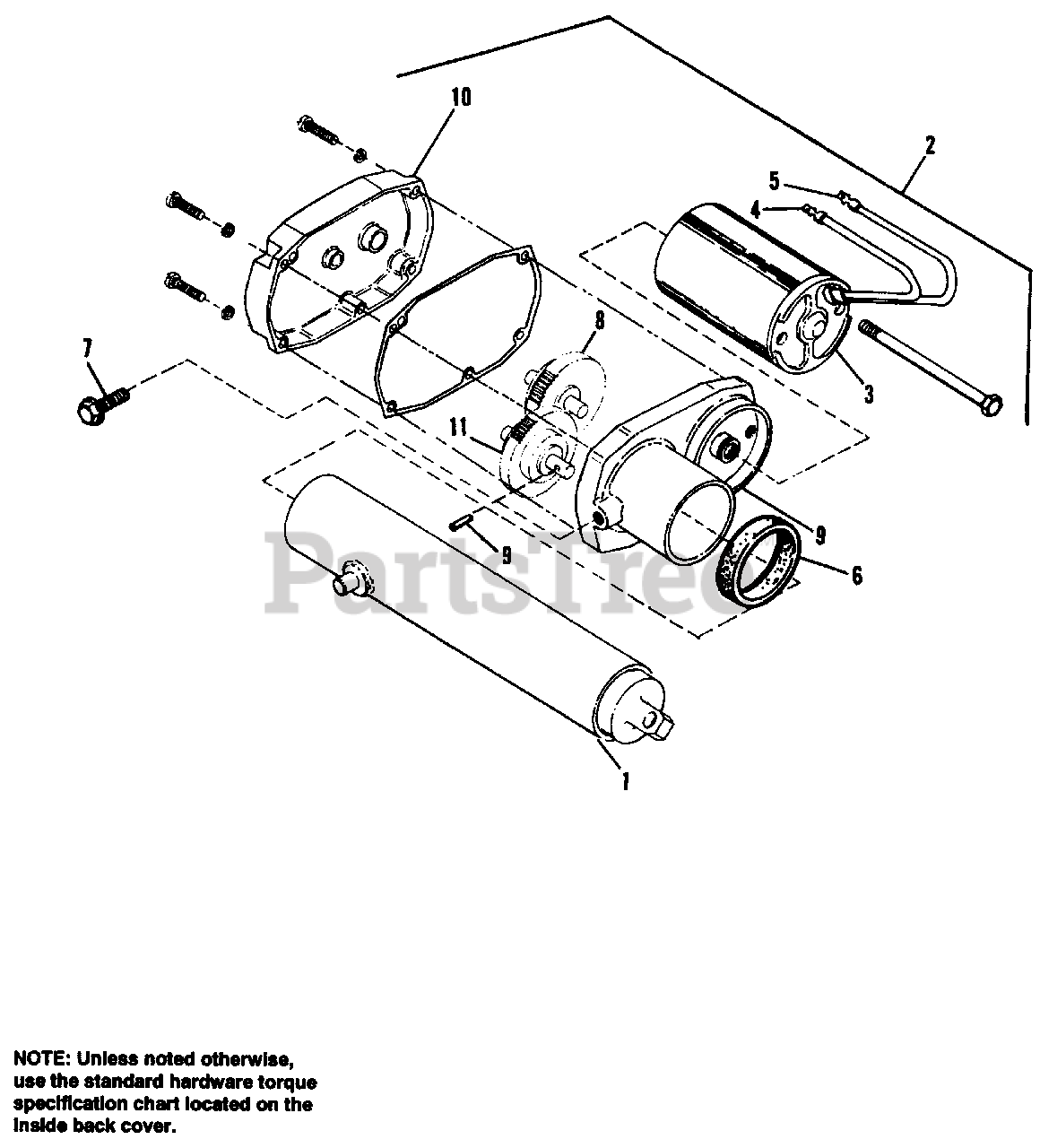

Electric Lift Kit - Power Lift Assembly (P/N 1706733) Parts Diagram

  • Title

1

Simplicity 1709104SM

LIFT TUBE ASSY.

$

$

Not available

2

Simplicity 1709105SM

MOTOR & GEAR BOX, 12V DC, 17:1 Ratio

$780.99

$

Usually ships in 2-12 days

0

3

Simplicity 1663966

MOTOR KIT, 12 VDC

$

$

Not available

4

Simplicity 1709106SM

BRUSH & LEAD (Rcd)

$

$

Not available

5

Simplicity 1709107

BRUSH & LEAD (Black)

$

$

Not available

6

Simplicity 1703531SM

SEAL, Outer Tube (Top)

$9.49

$

Usually ships in 2-12 days

0

7

Simplicity 1605773

CAPSCREW, Thd. Forming

$

$

Not available

8

Simplicity 1720713SM

GEAR ASSY., 2nd & 3rd

$655.99

$

Usually ships in 2-12 days

0

9

Simplicity 1605778SM

PIN, Drive

$

$

Not available

10

Simplicity 1667788SM

GASKET, Housing

$29.99

$

Usually ships in 2-12 days

0

11

Simplicity 1720713SM

OUTPUT GEAR & SLIP CLUTCH ASSY.

$655.99

$

Usually ships in 2-12 days

0
