1692030 - Simplicity 50" Turbo Blower 44" & 50" Turbo Blower - Arbor & Deflector Group Parts Diagram

50" Turbo Blower

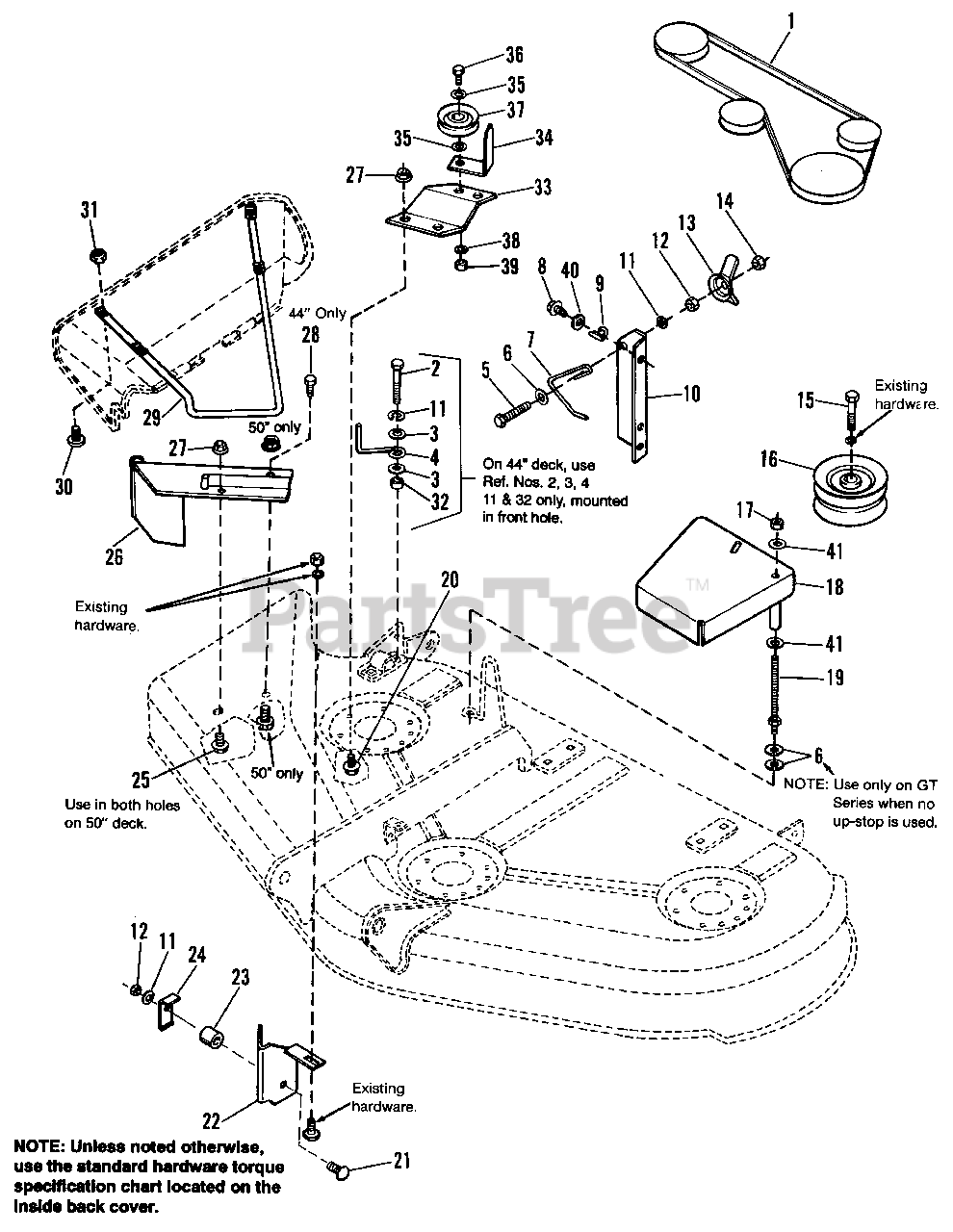

44" & 50" Turbo Blower - Arbor & Deflector Group Parts Diagram

  • Title

1

Simplicity 1732945SM

V-BELT (44" Only)

$25.99

$

In Stock, only 1 left!

0

1

Simplicity 1707956SM

V-BELT (50" Only)
(Superseded to 1734005SM)

$25.99

$

In Stock, only 4 left!

0

2

Simplicity 1921221SM

CAPSCREW, 5/16-18 x 1-1/2 (44" Only)
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

3

Simplicity 1919326SM

WASHER, Flat (44" Only)

$4.49

$

In Stock, Qty 8

0

4

Simplicity 2172845SM

BELT STOP

$11.99

$

Usually ships in 2-12 days

0

5

Simplicity 1960318SM

CAPSCREW, Hex Hd., 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 1919381SM

WASHER, Flat
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

7

Simplicity 1705064SM

SPRING LATCH

$44.99

$

Usually ships in 2-12 days

0

8

Simplicity 1925003SM

SCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

9

Simplicity 1678435SM

BELT STOP

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1704982ASM

ANCHOR, Turbo

$67.99

$

Usually ships in 2-12 days

0

11

Simplicity 1917356SM

LOCKWASHER, 5/16 (Qty. 3 used on 44")
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1679163SM

NUT, Wing Assy., 5/16

$69.99

$

In Stock, only 1 left!

0

14

Simplicity 1923362SM

NUT, Hex, Center Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

15

Simplicity 1927531SM

CAPSCREW, Hex Hd., 7/16-14 x 2

$5.49

$

In Stock, Qty 5

0

16

Simplicity 1704796SM

PULLEY ASSY., Turbo
(Superseded to 1704796ASM)

$219.99

$

In Stock, only 1 left!

0

17

Simplicity 1919438SM

NUT, Hex, Ny-lock
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1705279SM

SHIELD ASSY., Belt

$45.99

$

Usually ships in 2-12 days

0

19

Simplicity 1705123SM

STUD, 5/16-18 x 5-13/64

$27.99

$

Usually ships in 2-12 days

0

20

Simplicity 1923325SM

CAPSCREW, Hex Hd., 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

21

Simplicity 1960223SM

CARRIAGE BOLT, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

22

Simplicity 1704880ASM

BRACKET ASSY., Cut off

$112.99

$

Usually ships in 2-12 days

0

23

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

24

Simplicity 1705308ASM

BRACKET, "L"

$33.99

$

Usually ships in 2-12 days

0

25

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 (Qty. 2 used on 44")
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

26

Simplicity 1722546

PIVOT ASSY., (44" Only)
(Superseded to 1722546ASM)

$216.99

$

Usually ships in 2-12 days

0

26

Simplicity 1722546

PIVOT ASSY., (50" Only)
(Superseded to 1722546ASM)

$216.99

$

Usually ships in 2-12 days

0

27

Simplicity 1931277SM

NUT, Hex, Flange, Whizlock, 5/16-18 (Qty. 3 used on 44")
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

28

Simplicity 1931648SM

SCREW, Hex, Whizlock, 5/16-18 x 1/2 (44" Only)
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

29

Simplicity 1718295

ROD, Deflector
(Superseded to 1718295ASM)

$112.99

$

Usually ships in 2-12 days

0

30

Simplicity 1960404SM

SCREW, Truss Hd.

$3.99

$

In Stock, only 4 left!

0

31

Simplicity 1933896SM

NUT, Nylock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

32

Simplicity 1710703SM

SPACER (44" Only)

$6.49

$

In Stock, Qty 20+

0

33

Simplicity 1704768ASM

BRACKET, Idler, Turbo

$13.99

$

Usually ships in 2-12 days

0

34

Simplicity 1705277SM

LATCH, Belt Cover

$8.49

$

Usually ships in 2-12 days

0

35

Simplicity 1924940SM

WASHER, Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

36

Simplicity 1921969SM

CAPSCREW, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

37

Simplicity 1714817SM

PULLEY ASSY., Idler
(Superseded to 703056)

$42.99

$

In Stock, Qty 6

0

38

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

39

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1921319SM

WASHER, Flat, .25 x .05 Thk.
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

41

Simplicity 1924874SM

WASHER, Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0
