1692002 - Simplicity 42" Turbo Collection System 42" Turbo Collection System - Cover & Support Group Parts Diagram

42" Turbo Collection System

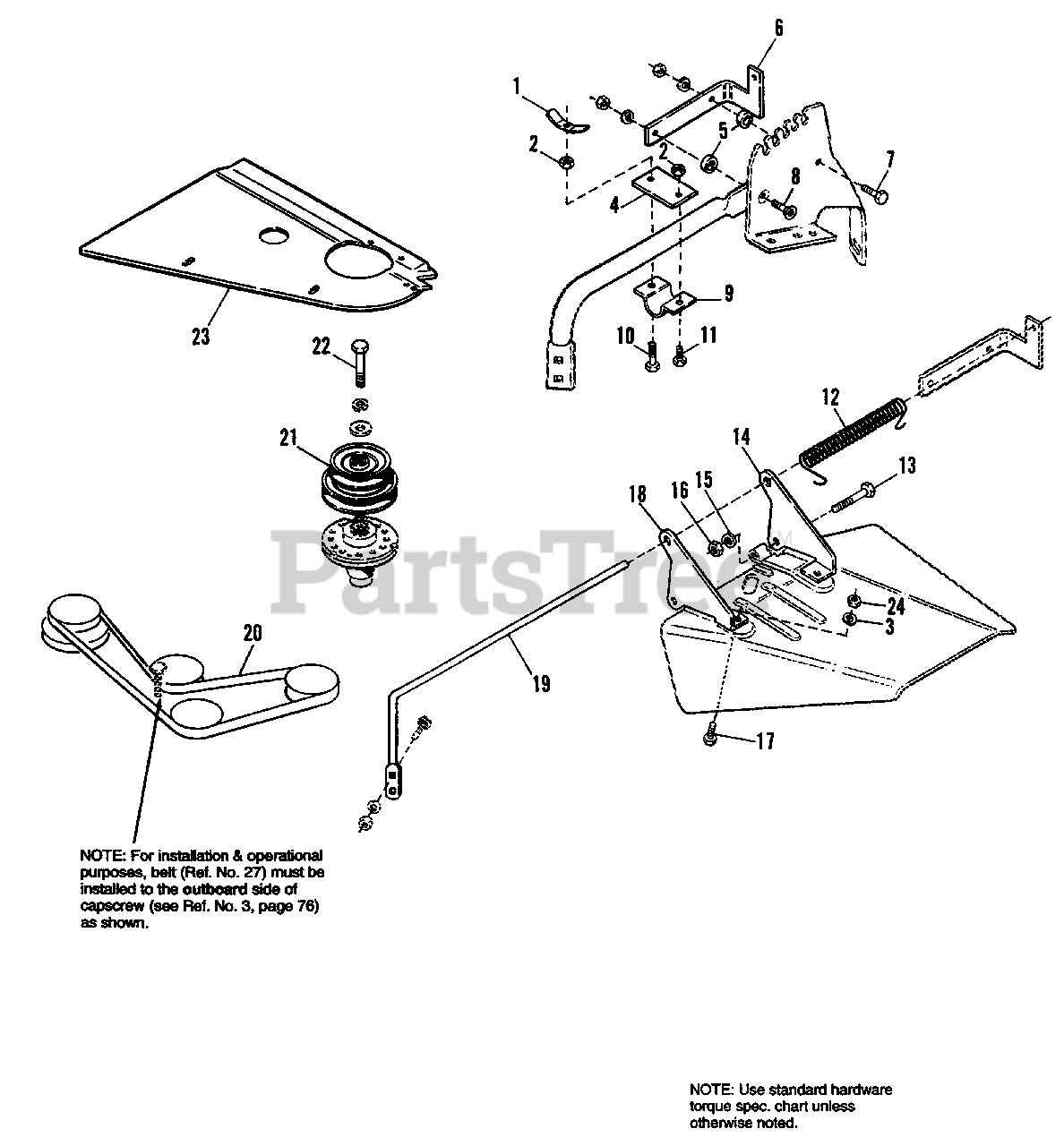

42" Turbo Collection System - Cover & Support Group Parts Diagram

  • Title

1

Simplicity 1702157SM

WING NUT

$27.99

$

Usually ships in 2-12 days

0

2

Simplicity 1928698SM

NUT, Hex Jam Lock, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1679899SM

CLAMP, Upper

$10.99

$

Usually ships in 2-12 days

0

5

Simplicity 1666697SM

SPACER

$6.49

$

In Stock, only 2 left!

0

6

Simplicity 1722049SM

PIVOT ASSY., Deflector

$

$

Not available

7

Simplicity 1921977SM

CAPSCREW, Hex, 5/16-18 x 1-1/4
(Superseded to 703570)

Note: (1691257 only)

$4.99

$

In Stock, Qty 7

0

Simplicity 1922127SM

CAPSCREW, Hex, 5/16-18 x 1-3/4
(Superseded to 704288)

Note: (1691607 & 1692002 only)

$4.99

$

Usually ships in 2-12 days

0

8

Simplicity 1960487SM

SCREW, Flat Hd., Hex Soc., 5/16-18 1-3/4

$

$

Not available

9

Simplicity 1679898SM

CLAMP, Lower

$8.49

$

Usually ships in 2-12 days

0

10

Simplicity 1921977SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

11

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

12

Simplicity 1700852SM

SPRING, Torsion

$43.99

$

Usually ships in 2-12 days

0

13

Simplicity 1926109

CAPSCREW, Hex Hd., 7/16-14 x 2-1/4

Note: (1691257 & 16291607 only)

$

$

Not available

14

Simplicity 1700802ASM

PIVOT, Bracket, R.H.

$55.99

$

Usually ships in 2-12 days

0

15

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1918213SM

NUT, Hex, Full, 7/16-14

$4.99

$

In Stock, only 2 left!

0

17

Simplicity 1923325SM

CAPSCREW, Hex, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

18

Simplicity 1700801ASM

PIVOT, Bracket, L.H.

$43.99

$

Usually ships in 2-12 days

0

19

Simplicity 1700846SM

ROD, Hinge

$37.99

$

Usually ships in 2-12 days

0

20

Simplicity 1679913SM

V-BELT

$28.99

$

In Stock, only 2 left!

0

21

Simplicity 1679904SM

PULLEY ASSY.

Note: (Arbor)

$

$

Not available

22

Simplicity 1927120SM

CAPSCREW, Hex Hd., 7/16-14 x 2-1/4

$6.99

$

Usually ships in 2-12 days

0

23

Simplicity 1700012SM

COVER, L.H., Mower

$61.99

$

Usually ships in 2-12 days

0

24

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
