1691978 - Simplicity 36" Tiller Attachment 36" Tiller - Drive Group Parts Diagram

36" Tiller Attachment

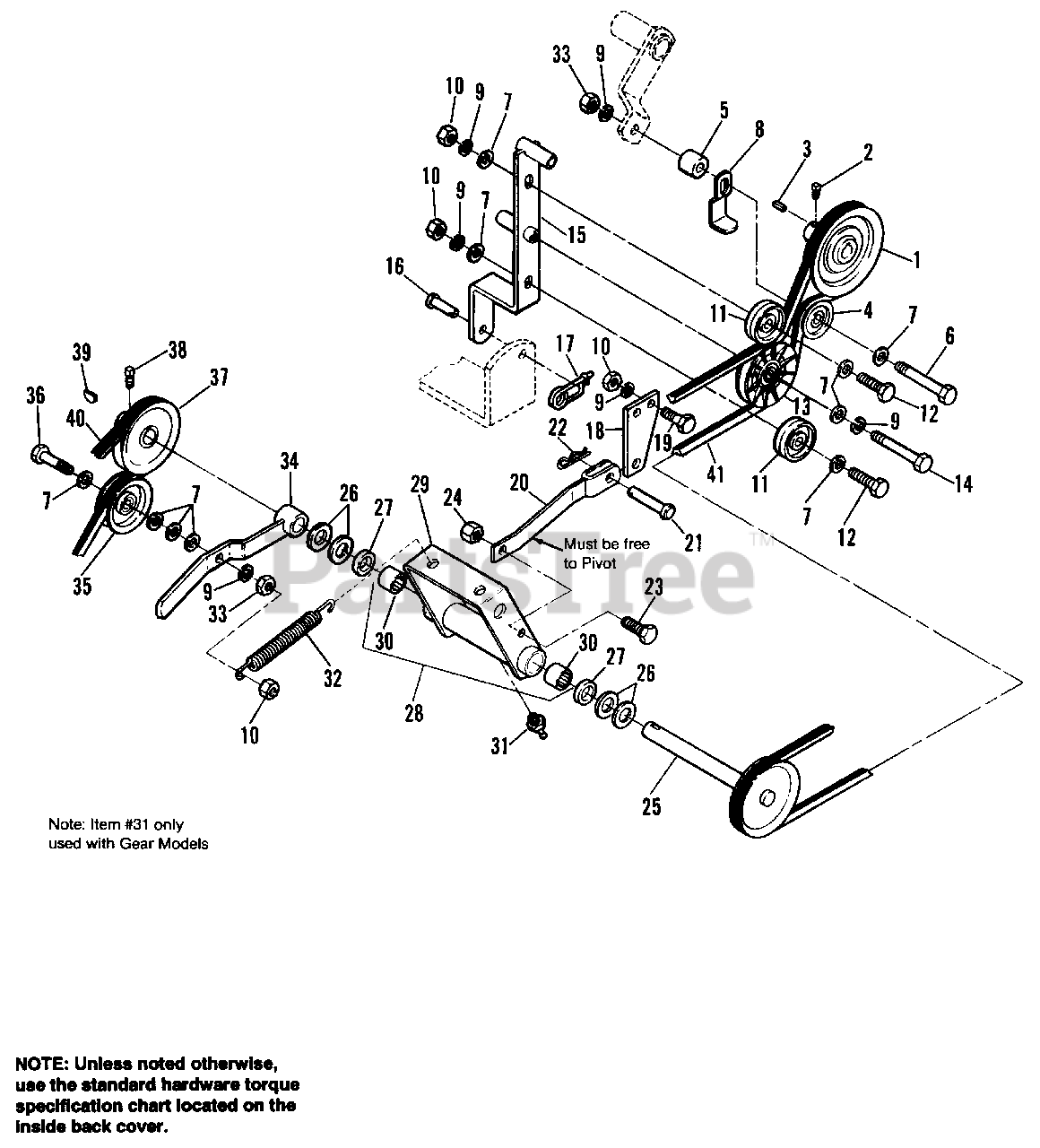

36" Tiller - Drive Group Parts Diagram

  • Title

1

Simplicity 1706342SM

PULLEY

$101.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960474SM

SETSCREW, 3/8-16 x 1/2

$5.99

$

In Stock, Qty 5

0

3

Simplicity 2157427SM

KEY

$5.49

$

In Stock, only 1 left!

0

4

Simplicity 1721133SM

PULLEY ASSY. (Incl. Ref. No. 5)

$29.99

$

In Stock, Qty 20+

0

5

Simplicity 1669999SM

SPACER

$10.99

$

Usually ships in 2-12 days

0

6

Simplicity 1921973SM

CAPSCREW, Hex, 3/8-16 x 2-3/4

$5.49

$

Usually ships in 2-12 days

0

7

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1708352ASM

GUARD, Spring

$35.99

$

Usually ships in 2-12 days

0

9

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

10

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

11

Simplicity 1706511SM

PULLEY, Idler

$32.99

$

Usually ships in 2-12 days

0

12

Simplicity 1921971SM

CAPSCREW, Hex, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

13

Simplicity 1706510SM

PULLEY, Idler

$32.99

$

In Stock, only 2 left!

0

14

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

15

Simplicity 1708961ASM

ARM ASSY., Idler

$104.99

$

Usually ships in 2-12 days

0

16

Simplicity 1708298SM

PIN

$

$

Not available

17

Simplicity 2176012SM

CLIP, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1707265A

ANCHOR, Jackshaft (Used on Gear Models only)
(Superseded to 1707265ASM)

$9.99

$

Usually ships in 2-12 days

0

19

Simplicity 1921210SM

CAPSCREW, Hex, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

20

Simplicity 1706344A

ANCHOR ASSY.
(Superseded to 1706344ASM)

$45.99

$

Usually ships in 2-12 days

0

21

Simplicity 1960116SM

PIN
(Superseded to 5025479YP)

$3.99

$

In Stock, only 2 left!

0

22

Simplicity 1960033SM

CLIP

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1921333SM

CAPSCREW, Hex, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

24

Simplicity 1923362SM

NUT, Hex, Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

25

Simplicity 1706362A

PULLEY ASSY., Jackshaft

$

$

Not available

26

Simplicity 1960160SM

WASHER, 3/4

$4.99

$

In Stock, Qty 9

0

27

Simplicity 1611789SM

SEAL

$26.99

$

Usually ships in 2-12 days

0

28

Simplicity 1708180SM

CLEVIS ASSY., w/Bearings (Incl. Ref. Nos. 29 & 30)

$142.99

$

Usually ships in 2-12 days

0

29

CLEVIS ASSY. (See Ref. No. 28)

$

$

Not available

30

Simplicity 2171186SM

BEARING, Needle
(Superseded to 2172747SM)

$13.99

$

Usually ships in 2-12 days

0

31

Simplicity 2812808SM

FITTING, Grease

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 2159159SM

SPRING, Extension

$37.99

$

In Stock, only 1 left!

0

33

Simplicity 1960251SM

NUT, Hex, Jam Lock, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

34

Simplicity 1706508A

ARM ASSY., Idler
(Superseded to 1706508ASM)

$87.99

$

Usually ships in 2-12 days

0

35

Simplicity 1657712SM

PULLEY, Idler

$

$

Not available

36

Simplicity 1923701SM

CAPSCREW, Hex, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

37

Simplicity 1706343A

PULLEY ASSY.

$

$

Not available

38

Simplicity 1928721SM

SETSCREW, 5/16-18

$4.99

$

In Stock, only 2 left!

0

39

Simplicity 2860403SM

KEY, Woodruff #61

$10.99

$

In Stock, only 1 left!

0

40

Simplicity 1700059SM

BELT, Primary

$40.99

$

Usually ships in 2-12 days

0

41

Simplicity 1706512SM

V-BELT, Drive

$40.99

$

Usually ships in 2-12 days

0
