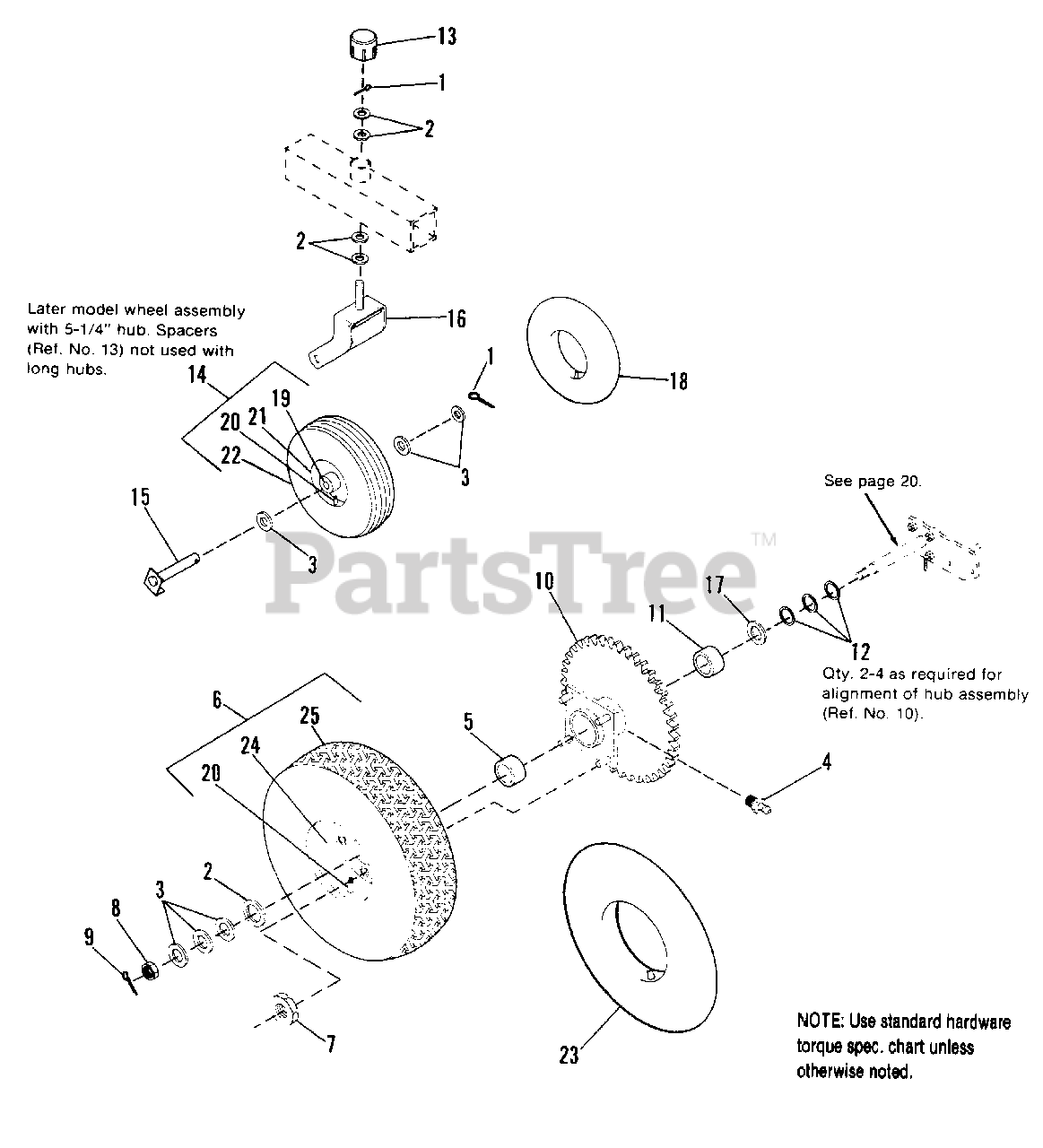

1691965 - Simplicity Lever Steer Rear-Engine Riding Mower, 16hp Wheel and Tire Assembly Parts Diagram

Lever Steer Rear-Engine Riding Mower, 16hp

Wheel and Tire Assembly Parts Diagram

  • Title
1

Simplicity 1918459SM

COTTER PIN
(Superseded to 703983)

$4.49

$

In Stock, Qty 9

0

2

Simplicity 1960529SM

WASHER, Plain

$5.99

$

Usually ships in 2-12 days

0

3

Simplicity 2860181

WASHER, Plain

$

$

Not available

4

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

$46.99

$

Usually ships in 2-12 days

0

6

Simplicity 1705756

WHEEL AND TIRE ASSY., 18 x 9.50-8 (Incl. Ref. Nos. 20 (Qty. 2), 23, 24 & 25)

$

$

Not available

7

Simplicity 2177725SM

NUT, Wheel, 7/16-20

$6.49

$

In Stock, only 3 left!

0

8

Simplicity 1960387SM

NUT, Hex, Slotted, 3/4-16

$6.49

$

Usually ships in 2-12 days

0

9

$3.99

$

In Stock, only 1 left!

0

10

Simplicity 1712738SM

HUB ASSY.
(Superseded to 1712738ASM)

$302.99

$

Usually ships in 2-12 days

0

$61.99

$

Usually ships in 2-12 days

0

12

Simplicity 1712764

WASHER, Plain (As required for alignment)

$

$

Not available

13

Simplicity 1673333SM

CAP, Threaded

$5.49

$

In Stock, Qty 5

0

14

Simplicity 1705539

WHEEL AND TIRE ASSY., 13 x 5.00-6 (Incl. Ref. Nos. 18, 19, 20 (Qty. 1), 21 & 22)

$

$

Not available

15

Simplicity 1706620SM

AXLE PIN ASSY.

$34.99

$

Usually ships in 2-12 days

0

16

Simplicity 1705954SM

CASTER ASSY.

$

$

Not available

17

Simplicity 1960409

WASHER, Plain

$

$

Not available

18

Simplicity 1664090SM

* TUBE (Used with Ref. No. 14)

$26.99

$

In Stock, only 3 left!

0

19

Simplicity 1712288SM

BEARING, Flanged

$42.99

$

Usually ships in 2-12 days

0

20

Simplicity 2172353SM

VALVE STEM
(Superseded to 024373MA)

$

$

Not available

21

Simplicity 1705760

WHEEL ASSY.

$

$

Not available

22

Simplicity 1707702SM

TlRE, 13 x 5.00-6
(Superseded to 1717653SM)

$71.99

$

In Stock, only 2 left!

0

23

Simplicity 2164247SM

* TUBE (Used with Ref. No. 6)

$40.99

$

Usually ships in 2-12 days

0

24

Simplicity 1705097SM

WHEEL ASSY.

$

$

Not available

25

Simplicity 1717668SM

TIRE, 18 x 9.50-8

$

$

Not available
