1691964 - Simplicity Wheel Steer Rear-Engine Riding Mower, 16hp Steering Wheel Group Parts Diagram

Wheel Steer Rear-Engine Riding Mower, 16hp

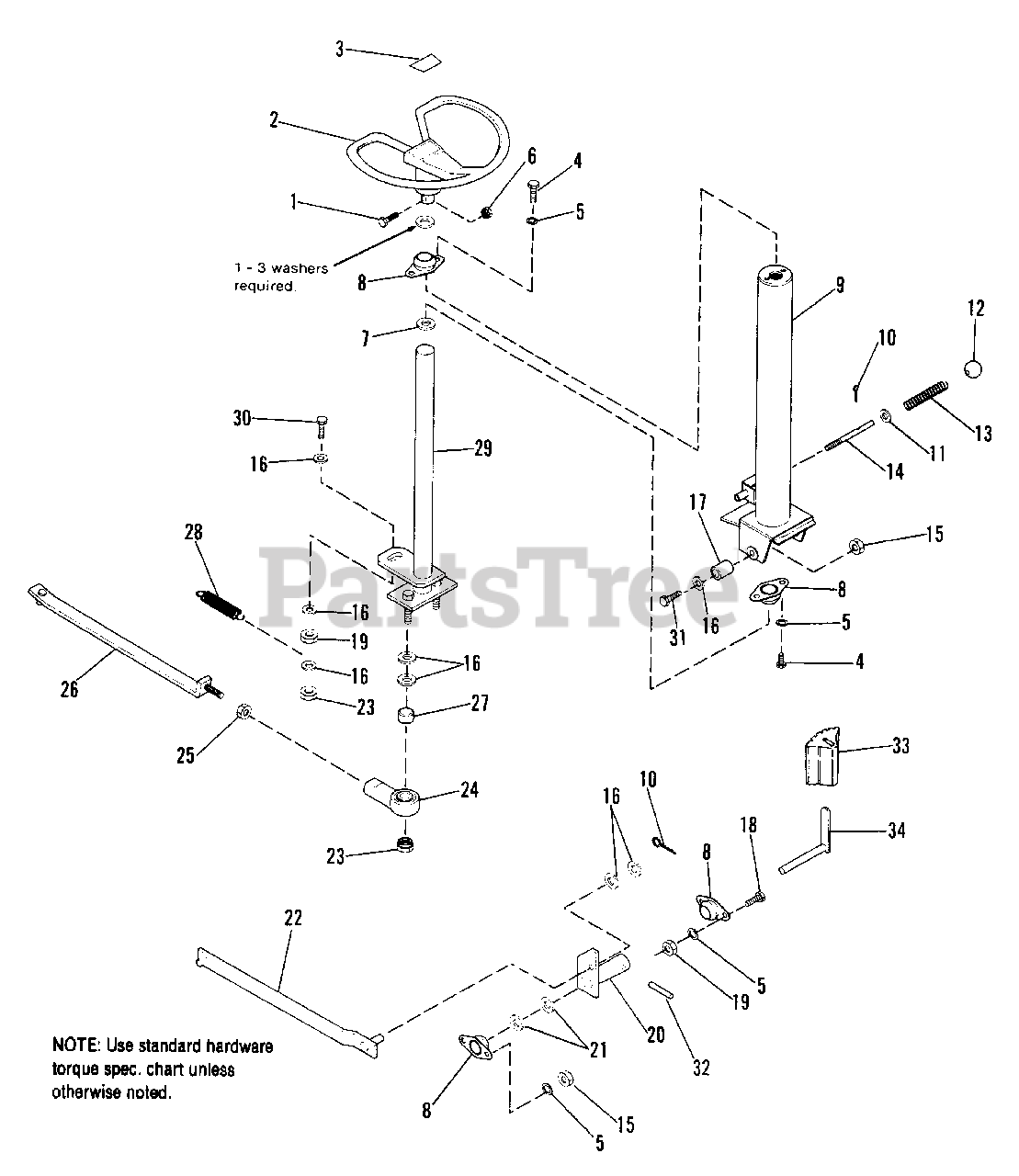

Steering Wheel Group Parts Diagram

  • Title

1

Simplicity 1930598SM

SCREW, Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

Usually ships in 2-12 days

0

2

Simplicity 1606342SM

WHEEL, Steering

$

$

Not available

3

Simplicity 1705396

INSERT, Steering Wheel

$

$

Not available

4

Simplicity 1924856SM

CAPSCREW, Hex, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

5

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Simplicity 1960114SM

WASHER, Plain
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1712345SM

BEARING, Flanged

$9.99

$

Usually ships in 2-12 days

0

9

Simplicity 1705952

STEERING COLUMN ASSY.

$

$

Not available

10

Simplicity 1960394SM

COTTER PIN

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 1924940SM

WASHER, Plain
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1729255SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

13

Simplicity 1712338SM

SPRING

$

$

Not available

14

Simplicity 1712337

ROD, Latch

$

$

Not available

15

Simplicity 1935048SM

LOCKNUT, Hex, Flanged, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1919326SM

WASHER, Plain

$4.49

$

In Stock, Qty 9

0

17

Simplicity 1720526SM

SPACER

$6.49

$

Usually ships in 2-12 days

0

18

Simplicity 1921332SM

CAPSCREW, Hex, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

19

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 1712349

CLUTCH ARM ASSY.

$

$

Not available

21

Simplicity 1960528SM

WASHER, Plain

$7.49

$

Usually ships in 2-12 days

0

22

Simplicity 1712352

LINK ASSY., Clutch, Front

$

$

Not available

23

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 1712382SM

ROD END

$27.99

$

Usually ships in 2-12 days

0

25

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 1712374SM

LINK ASSY., Steering

$45.99

$

Usually ships in 2-12 days

0

27

Simplicity 1710437SM

SPACER

$18.99

$

Usually ships in 2-12 days

0

28

Simplicity 1706523SM

SPRING

$8.99

$

Usually ships in 2-12 days

0

29

Simplicity 1712339

SHAFT ASSY.

$

$

Not available

30

Simplicity 1921977SM

CAPSCREW, Hex, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

31

Simplicity 1921333SM

CAPSCREW, Hex, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

32

Simplicity 2860396SM

ROLL PIN

$4.49

$

In Stock, Qty 7

0

33

Simplicity 1666664SM

PAD, Non-Skid, Pedal

$

$

Not available

34

Simplicity 1705995

CLUTCH PEDAL ASSY.

$

$

Not available
