1691959 - Simplicity GTH-L 42" Garden Tractor, 17hp Hydrostatic Control Group Parts Diagram

GTH-L 42" Garden Tractor, 17hp

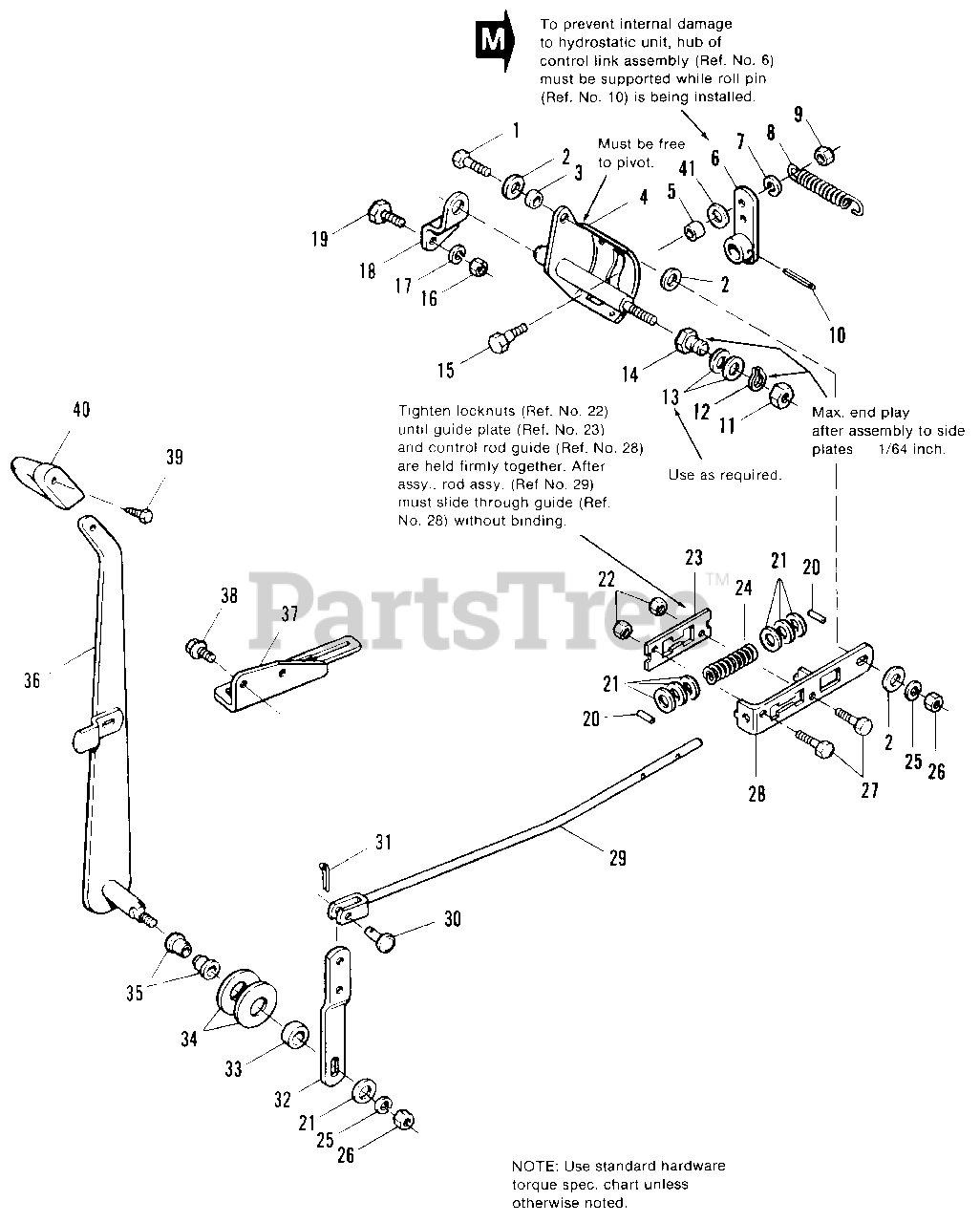

Hydrostatic Control Group Parts Diagram

  • Title

1

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

2

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 8

0

3

Simplicity 1650506SM

SPACER

$17.99

$

Usually ships in 2-12 days

0

4

Simplicity 1650874SM

SHAFT ASSY.

$

$

Not available

5

Simplicity 1650592SM

ROLLER, Cam

$

$

Not available

6

Simplicity 1650392

LINK ASSY., Control

$

$

Not available

7

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

8

Simplicity 2174896SM

SPRING

$20.99

$

In Stock, only 1 left!

0

9

Simplicity 1916622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 2816937SM

PIN, Roll, 1/4 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 1913744SM

LOCKNUT, Hex, Jam, 1/2-13

$4.99

$

In Stock, Qty 19

0

12

Simplicity 2827794SM

RING, Retaining

$3.49

$

In Stock, Qty 17

0

13

Simplicity 1664204SM

SHIM (as required)

$1.99

$

Usually ships in 2-12 days

0

14

Simplicity 1650872SM

NUT, Adjusting

$17.99

$

Usually ships in 2-12 days

0

15

Simplicity 1650621SM

BOLT, Shoulder

$30.99

$

In Stock, only 1 left!

0

16

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1650401SM

BRACKET, Pivot

$

$

Not available

19

Simplicity 1960085SM

SCREW, Special

$2.99

$

Usually ships in 2-12 days

0

20

Simplicity 2819180SM

PIN, Roll, 1/8 x 5/8

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 1923358SM

LOCKNUT, Hex, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

23

Simplicity 1650713SM

PLATE, Guide

$5.49

$

Usually ships in 2-12 days

0

24

Simplicity 1650347SM

SPRING

$12.99

$

Usually ships in 2-12 days

0

25

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

26

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 1921961SM

CAPSCREW, Hex Hd, 1/4-20 x 1-1/4

$4.49

$

In Stock, only 3 left!

0

28

Simplicity 1650712SM

GUIDE, Control Rod
(Superseded to 1650712ASM)

$7.49

$

Usually ships in 2-12 days

0

29

Simplicity 1650715SM

ROD ASSY, Control

$

$

Not available

30

Simplicity 1708298SM

PIN

$

$

Not available

31

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

32

Simplicity 1650358SM

LINK

$

$

Not available

33

Simplicity 1665251SM

SPACER

$22.99

$

Usually ships in 2-12 days

0

34

Simplicity 2168025SM

WASHER

$10.99

$

Usually ships in 2-12 days

0

35

Simplicity 2108419

BUSHING

$

$

Not available

36

Simplicity 1665257SM

LEVER ASSY., Control

$

$

Not available

37

Simplicity 1650360SM

QUADRANT
(Superseded to 1650360ASM)

$30.99

$

Usually ships in 2-12 days

0

38

Simplicity 1931648SM

SCREW, Hex, Flange, Whiz, 5/16-18 x 1/2
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

39

Simplicity 1960106SM

SCREW, Plastite, 1/4-20 x 1-1/4

$2.99

$

Usually ships in 2-12 days

0

40

Simplicity 2171165

KNOB

$

$

Not available

41

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0
