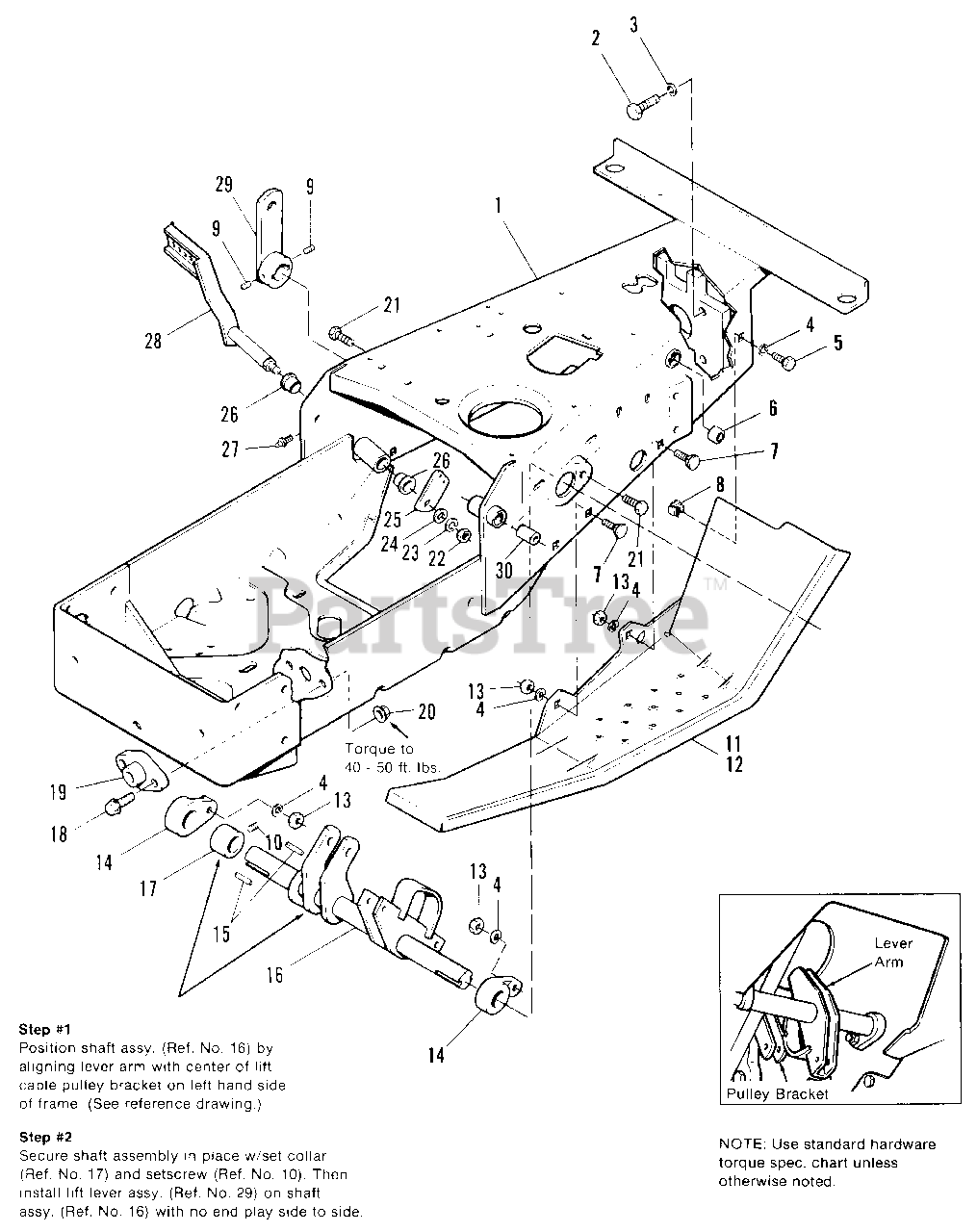

1691957 - Simplicity GTH-L Garden Tractor, 17hp Frame & Footrest Group Parts Diagram

GTH-L Garden Tractor, 17hp

Frame & Footrest Group Parts Diagram

  • Title

1

Simplicity 1669094

FRAME ASSY., w/Bushings (1691382)

$

$

Not available

1

Simplicity 1671380

FRAME ASSY., w/Bushings (1691717 & 1691957)

$

$

Not available

2

Simplicity 1921212SM

CAPSCREW, Hex Hd., 7/16-14 x 1-1/2

$

$

Not available

3

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1917356SM

LOCKWASHER 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

6

Simplicity 2174662SM

BUSHING

$58.99

$

Usually ships in 2-12 days

0

7

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

8

Simplicity 2820470

NUT, Speed, 5/16-18

$

$

Not available

9

Simplicity 1928734SM

SETSCREW, 5/16-18 x 1/4
(Superseded to 704033)

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1928721SM

SETSCREW, 5/16-18 x 1/2

$4.99

$

In Stock, only 2 left!

0

11

Simplicity 1665908SM

FOOTREST, LH
(Superseded to 1665908CSM)

$87.99

$

Usually ships in 2-12 days

0

12

Simplicity 1665909SM

FOOTREST, RH.
(Superseded to 1665909CSM)

$87.99

$

Usually ships in 2-12 days

0

13

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 2170975SM

BEARING, Lift Lever

$

$

Not available

15

Simplicity 2157652

KEY

$

$

Not available

16

Simplicity 1667271SM

SHAFT ASSY., Lift (Hydro Lift)

$210.99

$

Usually ships in 2-12 days

0

16

Simplicity 1663168

SHAFT ASSY., Lift (Manual Lift)

$

$

Not available

17

Simplicity 2157624

COLLAR, Set

$

$

Not available

18

Simplicity 1928727SM

SCREW, Hex, Whiz, Flange, 3/8-16 x 1-1/4

$3.99

$

In Stock, only 1 left!

0

19

Simplicity 1653876SM

BEARING, Pivot

$8.99

$

Usually ships in 2-12 days

0

20

Simplicity 1928352SM

LOCKNUT, Hex, Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

21

Simplicity 1921977SM

CAPSCREW, Hex Hd ., 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

22

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

24

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 2157300SM

ARM, Foot Pedal

$13.99

$

Usually ships in 2-12 days

0

26

Simplicity 2108419

BUSHING

$

$

Not available

27

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

28

Simplicity 1674137SM

PEDALASSY., Foot

$

$

Not available

29

Simplicity 2157625SM

LEVER ASSY., RH

$233.99

$

Usually ships in 2-12 days

0

30

Simplicity 2158544SM

BEARING, Interim Pinion

$

$

Not available
