1691954 - Simplicity GTH 60" Garden Tractor, 20hp Engine Group - Twin Cylinders (18 & 20HP) Parts Diagram

GTH 60" Garden Tractor, 20hp

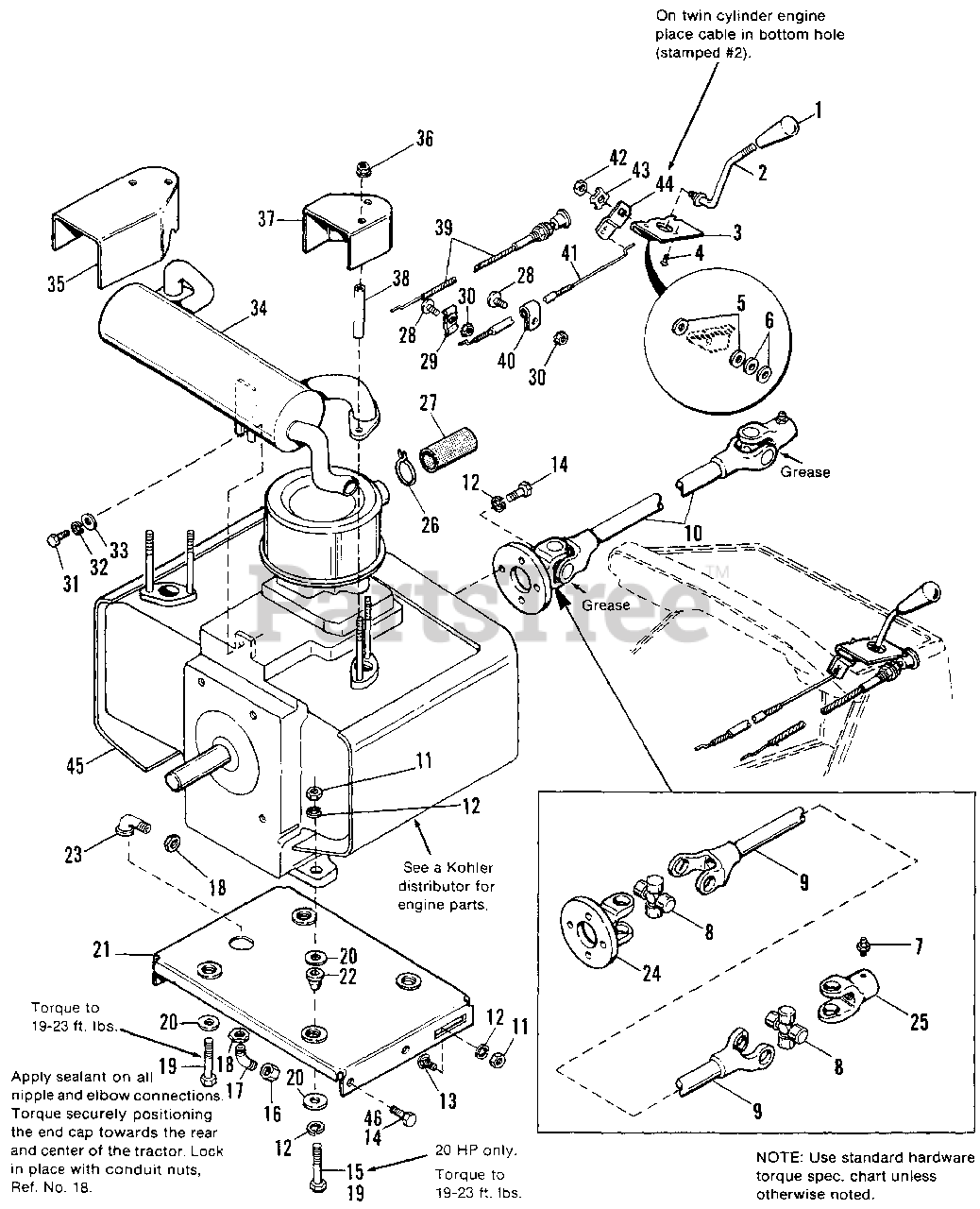

Engine Group - Twin Cylinders (18 & 20HP) Parts Diagram

  • Title

1

Simplicity 2172038SM

KNOB, Tapered, 3/8-16
(Superseded to 1732470SM)

$19.99

$

In Stock, Qty 8

0

2

Simplicity 1675873SM

HANDLE, Throttle

$

$

Not available

3

Simplicity 1704335SM

BRACKET, Mounting, Throttle Control

$

$

Not available

4

Simplicity 1960728SM

SCREW, Hex Hd., Slotted, Plastite, 1/4-10 x 5/8

$3.99

$

In Stock, only 4 left!

0

5

Simplicity 2860171SM

WASHER, Nylon, 41/64" I.D. x 1" O.D. x 1/32"

$4.49

$

In Stock, Qty 11

0

6

Simplicity 2101025SM

WASHER, Plain, 5/8" ID x 1" OD x 1/64"

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 2812808SM

FITTING, Lube

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1916950SM

NUT, Hex, 318-16 (Qty. 6 on 20 HP)
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

13

Simplicity 1922785

BOLT, Carriage, 3/8-16 x 7/8

$

$

Not available

14

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1 (Qty. 5 on 1691017, 1691018)
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

15

Simplicity 1921971SM

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4 (20 HP only)
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

16

Simplicity 1667346SM

CAP, Hex, 318-18

$7.49

$

Usually ships in 2-12 days

0

17

Simplicity 1678499

DRAIN, Oil

$

$

Not available

18

Simplicity 1932849SM

NUT, Conduit, 3/8-18

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 1923701SM

CAPSCREW, Hex Hd., 318-16 x 2 (Qty. of 3 on 20 HP)
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

20

Simplicity 1924356SM

WASHER, Plain, 13/32 x 1-1/2 x 1/8 Thick
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

21

Simplicity 1674385

PLATE ASSY., Engine Base

$

$

Not available

22

Simplicity 1674264SM

MOUNT, Engine

$26.99

$

In Stock, Qty 18

0

23

Simplicity 1673453SM

FITTING, 90, 3/8

$12.99

$

Usually ships in 2-12 days

0

26

Simplicity 1677121

CLAMP, Self Tightening

$

$

Not available

27

Simplicity 1677042

INTAKE, Air

$

$

Not available

28

Simplicity 1930531SM

SCREW, Truss Hd. (Phillips), #10-32 x 1/2

$4.49

$

In Stock, only 2 left!

0

29

Simplicity 1677213SM

CLIP, Double

$

$

Not available

30

Simplicity 1928919SM

NUT & WASHER ASSY., #10-32 (KEPS)

$3.99

$

In Stock, only 3 left!

0

31

Simplicity 1924009SM

CAPSCREW, Hex Hd., 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

32

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

33

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

34

Simplicity 1685359

MUFFLER, Exhaust (1691017, 1691018 only)

$

$

Not available

34

Simplicity 1701288

MUFFLER, Exhaust (all except 1691017, 1691018)

$

$

Not available

35

Simplicity 1666943

COVER, Manifold, R.H.

$

$

Not available

36

Simplicity 1935048SM

NUT, Flange, Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

37

Simplicity 1666942

COVER, Manifold, L.H.

$

$

Not available

38

Simplicity 1960235

SPACER, Manifold Cover

$

$

Not available

39

Simplicity 1679875SM

CONTROL, Choke w/Knob

$46.99

$

In Stock, only 1 left!

0

40

Simplicity 2158475SM

CLIP, Bowden, Wlre, 3/16

$5.49

$

In Stock, only 4 left!

0

41

Simplicity 1666268SM

CABLE, Throttle

$39.99

$

In Stock, Qty 5

0

42

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

43

Simplicity 1930665SM

LOCKWASHER, Dished, 3/8

$1.99

$

Usually ships in 2-12 days

0

44

Simplicity 1666703SM

ARM, Throttle

$3.99

$

Usually ships in 2-12 days

0

45

ENGINE, 18 HP Kohler

$

$

Not available

45

ENGINE, 20 HP Kohler

$

$

Not available

46

Simplicity 1928653

CAPSCREW, Hex, Taptite, 3/8-16 x 1 1/4 (1691380 thru 1691953)

$

$

Not available

10

Simplicity 1674126SM

DRIVE SHAFT ASSY. (Incl. Ref. Nos. 7, 8, 9, 24 & 25)

$

$

Not available

8

Simplicity 1678805SM

JOURNAL ASSY. (Incl. E-Clips & Grease Fittings)

$

$

Not available

8

Simplicity 1679003SM

CROSS & BEARING KIT (Weasler)

$80.99

$

Usually ships in 2-12 days

0

9

Simplicity 1678999SM

YOKE & TUBE ASSY. (Neapco)

$242.99

$

Usually ships in 2-12 days

0

9

Simplicity 1709050SM

YOKE & TUBE ASSY. (Weasler)

$98.99

$

Usually ships in 2-12 days

0

24

Simplicity 1678982SM

YOKE & FLANGE ASSY. (Neapco)

$

$

Not available

24

Simplicity 1709048SM

YOKE & FLANGE ASSY. (Weasler)

$

$

Not available

25

Simplicity 1701915SM

YOKE (Neapco)

$250.99

$

Usually ships in 2-12 days

0

25

Simplicity 1674126SM

YOKE (Weasler)

$

$

Not available
