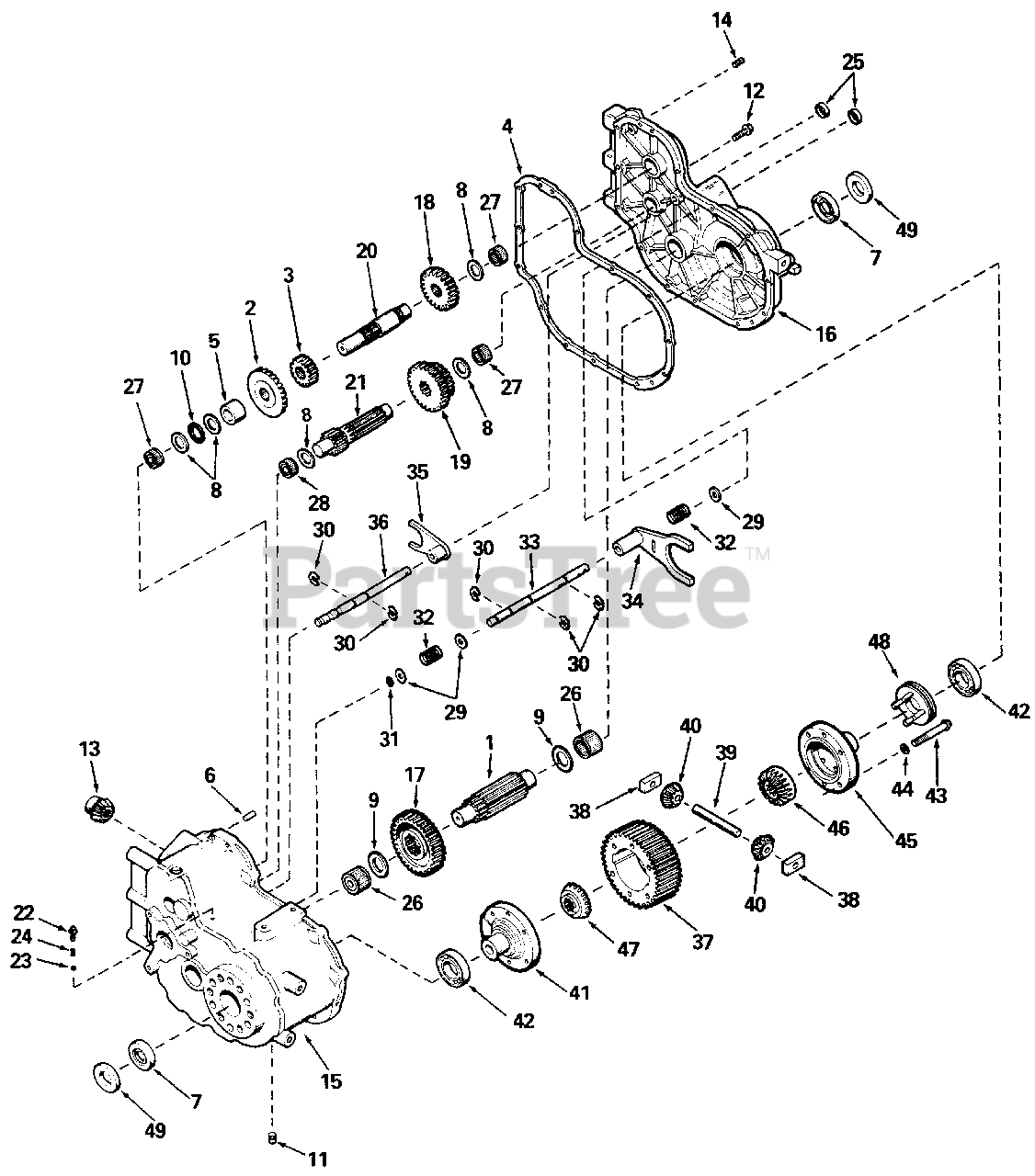

1691953 - Simplicity GTH Garden Tractor, 20hp Peerless Transaxle Model 2600-008 Parts Diagram

GTH Garden Tractor, 20hp

Peerless Transaxle Model 2600-008 Parts Diagram

  • Title

1

Simplicity 776120

PINION, Output

$

$

Not available

2

Simplicity 778087

GEAR, Bevel (30 teeth)

$

$

Not available

3

Simplicity 778088

GEAR, Spur (16 teeth)

$

$

Not available

4

Simplicity 788058

GASKET, Case & Cover

$

$

Not available

5

Simplicity 786094

SPACER, 1-5/8 OD x 1-1/64 ID x 55/64 thick

$

$

Not available

6

Simplicity 786026

PIN, Dowel

$

$

Not available

7

Simplicity 788049

SEAL, Oil

$

$

Not available

8

Simplicity 780045

WASHER, Thrust, 1.542 OD x 1.007 ID x .060 thick

$1.99

$

Usually ships in 2-12 days

0

9

Simplicity 780141

WASHER, Thrust, 2.187 OD x 1.257 ID x .060 thick

$24.99

$

Usually ships in 2-12 days

0

10

Simplicity 780012

BEARING, Thrust

$

$

Not available

11

Simplicity 792019

PLUG, Magnetic drain, 3/8-18

$4.99

$

Usually ships in 2-12 days

0

12

Simplicity 792067

SCREW, Hex Hd. Threadforming, 5/16-18 x 1

$

$

Not available

13

Simplicity 778155

PINION, Bevel

$

$

Not available

14

Simplicity 792039

PLUG, Pipe, 1/8-27

$

$

Not available

15

Simplicity 770073

CASE ASSY., Transaxle (Incl. Ref. Nos. 26, 27 & 28)

$92.99

$

Usually ships in 2-12 days

0

16

Simplicity 772086

COVER ASSY., Transaxle (Incl. Ref. Nos. 26 & 27)

$46.99

$

In Stock, only 1 left!

0

17

Simplicity 778098

GEAR, Output (37 teeth)

$

$

Not available

18

Simplicity 778099

GEAR, Spur (23 teeth)

$

$

Not available

19

Simplicity 778100

GEAR, Spur (23 & 27 teeth)

$

$

Not available

20

Simplicity 776209

SHAFT, Counter

$

$

Not available

21

Simplicity 776212

SHAFT & GEAR, Shifter

$

$

Not available

22

Simplicity 792100

SCREW, Hex Flanged Hd. 1/4-20 x 5/8

$

$

Not available

23

Simplicity 792004

BALL, Steel, 3/16
(Superseded to 799063)

$91.99

$

In Stock, only 4 left!

0

24

Simplicity 792003

SPRING, Shifter Fork

$

$

Not available

25

Simplicity 788034

SEAL, Oil

$

$

Not available

26

Simplicity 780099

BEARING, Needle

$

$

Not available

27

Simplicity 780100

BEARING, Needle

$6.99

$

Usually ships in 2-12 days

0

28

Simplicity 780126

BEARING, Needle

$6.49

$

Usually ships in 2-12 days

0

29

Simplicity 780070

WASHER, Thrust, .917 OD x .507 ID x .060 thick

$

$

Not available

30

Simplicity 792064

RING, Retaining

$

$

Not available

31

Simplicity 792099

RING, Retaining

$

$

Not available

32

Simplicity 792102

SPRING, Compression

$

$

Not available

33

Simplicity 784327

ROD, Shift (Differential Lock)

$

$

Not available

34

Simplicity 784328

FORK, Shift

$

$

Not available

35

Simplicity 784195

FORK, Shift

$

$

Not available

36

Simplicity 784326

ROD, Shift (Hi-Low)

$

$

Not available

37

Simplicity 778156

GEAR, Ring

$

$

Not available

38

Simplicity 786098

BLOCK, Drive

$

$

Not available

39

Simplicity 786096

PIN, Drive

$

$

Not available

40

Simplicity 778157

PINION, Bevel

$

$

Not available

41

Simplicity 774486

CARRIER, Differential

$

$

Not available

42

Simplicity 780125

BEARING, Ball

$

$

Not available

43

Simplicity 792101

SCREW, Hex Flanged Hd., 3/8-16 x 2-3/4

$21.99

$

In Stock, only 1 left!

0

44

Simplicity 792011

LOCKWASHER, 3/8"

$

$

Not available

45

Simplicity 774487

CARRIER, Differential

$

$

Not available

46

Simplicity 778159

GEAR, Bevel

$

$

Not available

47

Simplicity 778158

GEAR, Bevel

$

$

Not available

48

Simplicity 784325A

COLLAR ASSY., Shift

$

$

Not available

49

Simplicity 786097

SPACER, 2-1/8 OD x 1-5/32 ID x 3/8 thick

$

$

Not available
