1691883 - Simplicity 60" Gallon PTO Powered Grass Catcher 60 Gallon Catcher-Blower Housing Group Parts Diagram

60" Gallon PTO Powered Grass Catcher

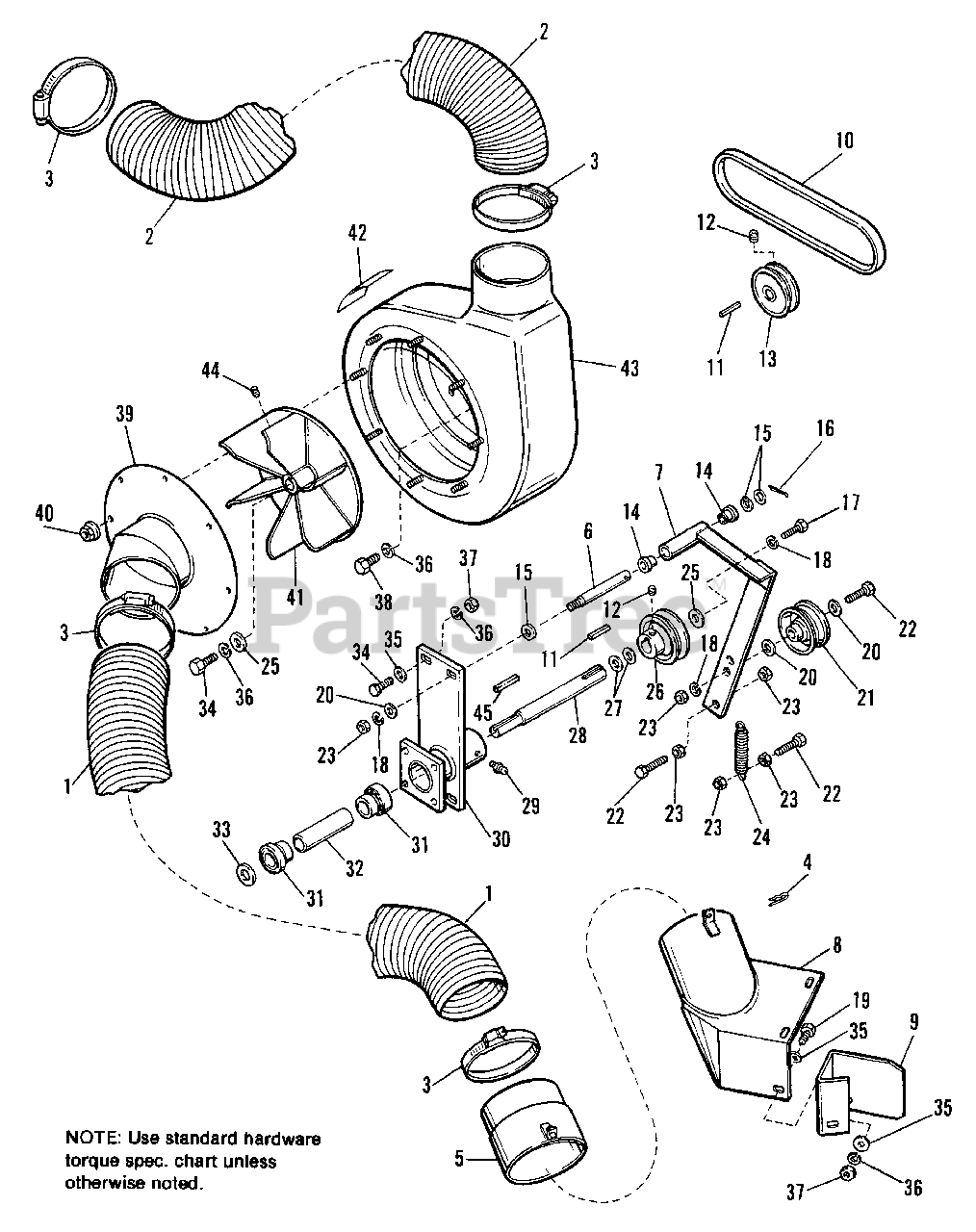

60 Gallon Catcher-Blower Housing Group Parts Diagram

  • Title

1

Simplicity 1678490SM

HOSE, Blower Housing, 44"

$216.99

$

Usually ships in 2-12 days

0

2

Simplicity 1711953

HOSE, Blower to Vac., 33"

$

$

Not available

3

Simplicity 1679896SM

CLAMP, Hose, 6" Dia.

$11.99

$

Usually ships in 2-12 days

0

4

Simplicity 1918196SM

HAIRPIN, Cotter
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 1712874

TUBE, Adapter Assy.

$

$

Not available

6

Simplicity 1712246SM

IDLER SHAFT

$32.99

$

Usually ships in 2-12 days

0

7

Simplicity 1712247

IDLER ARM ASSY.

$

$

Not available

8

Simplicity 1712879

DISCHARGE BOOT ASSY.

$

$

Not available

9

Simplicity 1712894

ADAPTER, Boot

$

$

Not available

10

Simplicity 1711901SM

V-BELT

$21.99

$

Usually ships in 2-12 days

0

11

Simplicity 2157652

KEY, Sq., 1/4 x 1/4 x 1

$

$

Not available

12

Simplicity 1960619SM

SETSCREW, Socket Hd., 5/16-18 x 5/16

$3.49

$

In Stock, Qty 8

0

13

Simplicity 1707261

PULLEY, Drive

$

$

Not available

14

Simplicity 2118132SM

BEARING, Nylon

$

$

Not available

15

Simplicity 1960027SM

WASHER, Plain
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1918451SM

PIN, Cotter, 1/8 x 3/4

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 2827008SM

CAPSCREW, 3/8-24 x 1

$2.99

$

Usually ships in 2-12 days

0

18

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

19

Simplicity 1921332SM

CAPSCREW, Hex, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

20

Simplicity 1924940SM

WASHER, Plain
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 1710539SM

IDLER PULLEY, Backside

$63.99

$

Usually ships in 2-12 days

0

22

Simplicity 1921971SM

CAPSCREW, Hex, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

23

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1710025SM

SPRING

$30.99

$

Usually ships in 2-12 days

0

25

Simplicity 1960009

WASHER, Plain

$

$

Not available

26

Simplicity 1710009SM

V-PULLEY, Drive

$153.99

$

Usually ships in 2-12 days

0

27

Simplicity 1960529SM

WASHER, Plain

$5.99

$

Usually ships in 2-12 days

0

28

Simplicity 1712245

SHAFT, Blower

$

$

Not available

29

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

30

Simplicity 1712240

FRAME, Housing Assy.

$

$

Not available

31

Simplicity 1710602SM

BEARING, Ball, 1"

$84.99

$

Usually ships in 2-12 days

0

32

Simplicity 1712244

SPACER

$

$

Not available

33

Simplicity 2860181

WASHER, Plain

$

$

Not available

34

Simplicity 1921333SM

CAPSCREW
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

35

Simplicity 1919326SM

WASHER, Plain

$4.49

$

In Stock, Qty 5

0

36

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 1921332SM

CAPSCREW, Hex, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

39

Simplicity 1712950

INLET, 6"

$

$

Not available

40

Simplicity 1960294SM

NUT, Whiz Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

41

Simplicity 1712949SM

BLOWER

$

$

Not available

42

Simplicity 1700259SM

DECAL, Danger

$27.99

$

Usually ships in 2-12 days

0

43

Simplicity 1712948

BLOWER HOUSING

$

$

Not available

44

Simplicity 2824624

SETSCREW, 3/8-14 x 3/8

$

$

Not available

45

Simplicity 1729279SM

KEY, 3/16 x 3/16 x 1-1/2
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0
