1691852 - Simplicity Dual Tail Wheels Dual Tail Wheels Parts Diagram

Dual Tail Wheels

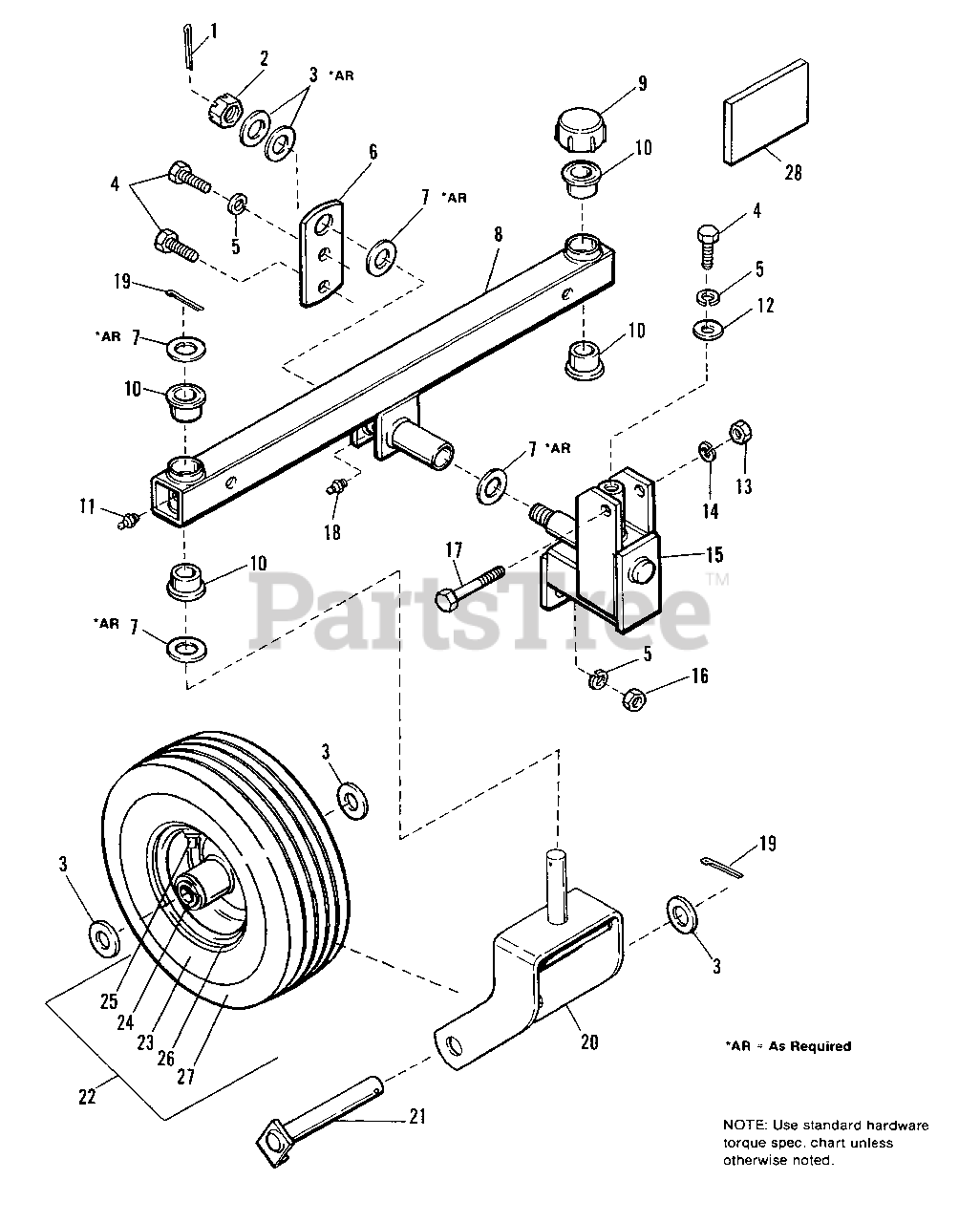

Dual Tail Wheels Parts Diagram

  • Title
1

Simplicity 1923500SM

PIN, Cotter

$3.99

$

In Stock, only 1 left!

0

2

Simplicity 1960387SM

NUT, Castle

$6.49

$

Usually ships in 2-12 days

0

3

Simplicity 2860181

WASHER, 3/4" I.D. x 1" O.D.

$

$

Not available

4

Simplicity 1921176SM

CAPSCREW, Hex, 1/2-13 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

5

Simplicity 1916966SM

LOCKWASHER, Spring, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

6

Simplicity 1712674

PLATE, Support

$

$

Not available

7

Simplicity 1960529SM

WASHER, 1" I.D. x 1-1/2" O.D.

$5.99

$

Usually ships in 2-12 days

0

8

Simplicity 1705137

AXLE ASSY.

$

$

Not available

9

Simplicity 1673333SM

CAP, Plastic

$5.49

$

In Stock, Qty 5

0

$6.99

$

Usually ships in 2-12 days

0

11

Simplicity 2812808SM

FITTING, Grease

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1676435SM

WASHER, 1/2" I.D. x 1-1/4" O.D.

$8.49

$

Usually ships in 2-12 days

0

13

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

15

Simplicity 1712667

PIVOT SHAFT ASSY.

$

$

Not available

16

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

17

Simplicity 1923938SM

CAPSCREW, Hex, 3/8-16 x 3-1/2
(Superseded to 703182)

$6.99

$

Usually ships in 2-12 days

0

18

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

19

Simplicity 1918459SM

PIN, Cotter
(Superseded to 703983)

$4.49

$

In Stock, Qty 13

0

20

Simplicity 1705954SM

CASTER ASSY.

$

$

Not available

21

Simplicity 1706620SM

PIN AXLE ASSY.

$34.99

$

Usually ships in 2-12 days

0

22

Simplicity 1705539

WHEEL & TIRE ASSY.

$

$

Not available

23

Simplicity 1664090SM

TUBE

Note: Simplicity Tire Sealant can be used to repair tires in place of tubes.

$26.99

$

In Stock, only 3 left!

0

24

Simplicity 1712288SM

BEARING, Flanged

$42.99

$

Usually ships in 2-12 days

0

25

Simplicity 2172353SM

VALVE STEM
(Superseded to 024373MA)

$

$

Not available

26

Simplicity 1705760

WHEEL ASSY.

$

$

Not available

27

Simplicity 1707702SM

TIRE
(Superseded to 1717653SM)

$71.99

$

In Stock, only 2 left!

0

28

I.D. PLATE

$

$

Not available
