1691845 - Simplicity Lever Steer Rear-Engine Riding Mower, 20hp Engine Group (18 & 20HP) Parts Diagram

Lever Steer Rear-Engine Riding Mower, 20hp

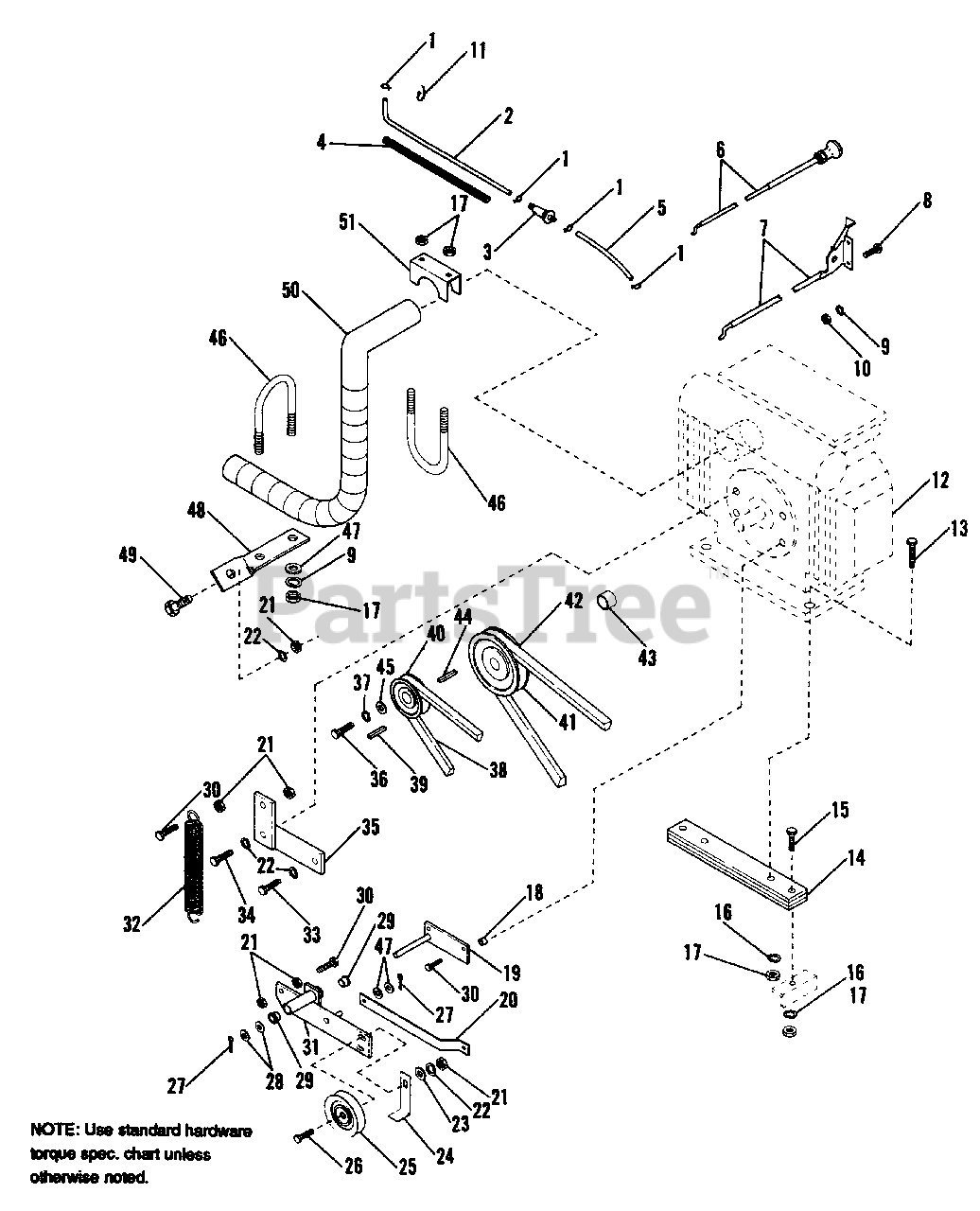

Engine Group (18 & 20HP) Parts Diagram

  • Title

1

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 1718678SM

HOSE, Fuel, 12" (Cut to length)

$

$

Not available

3

Simplicity 2173206SM

FILTER, Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

4

Simplicity 1705271

TUBING, Flexible

$

$

Not available

5

Simplicity 1718678SM

HOSE, Fuel, 5"

$

$

Not available

6

Simplicity 1705087

CHOKE CABLE

$

$

Not available

7

Simplicity 1711614SM

THROTTLE CABLE

$

$

Not available

8

Simplicity 1960392SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 1917365SM

LOCKWASHER, Spring #10

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 1916621SM

NUT, Hex #10-24

$3.49

$

In Stock, Qty 11

0

11

Simplicity 2832747SM

TIE WRAP

$3.99

$

Usually ships in 2-12 days

0

12

ENGINE, 18 HP Kohler (1691843, 1691844)

$

$

Not available

51

ENGINE, 20 HP Kohler (1691845, 1691846)

$

$

Not available

13

Simplicity 1922127SM

CAPSCREW, Hex 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 1712114

BAR ASSY., Spacer

$

$

Not available

15

Simplicity 1921221SM

CAPSCREW, Hex 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

16

Simplicity 1917356SM

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1917372SM

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1667133

SPACER

$

$

Not available

19

Simplicity 1705132

IDLER PIVOT ASSY.

$

$

Not available

20

Simplicity 1705321SM

LINK, Clutch

$18.99

$

Usually ships in 2-12 days

0

21

Simplicity 1916950SM

NUT, Hex 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1916965SM

LOCKWASHER, Spring 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

23

Simplicity 1924940SM

WASHER, Plain
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1710546SM

RETAINER, Belt

$15.99

$

Usually ships in 2-12 days

0

25

Simplicity 1710545SM

V-PULLEY, Idler, PTO

$42.99

$

Usually ships in 2-12 days

0

26

Simplicity 1921974SM

CAPSCREW, Hex 3/8-16 x 1-1/2

$

$

Not available

27

Simplicity 1960394SM

COTTER PIN

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 1960027SM

WASHER, Plain
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 2118132SM

BEARING, Flanged

$

$

Not available

30

Simplicity 1921971SM

CAPSCREW, Hex 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

31

Simplicity 1705130

IDLER ARM ASSY.

$

$

Not available

32

Simplicity 1710547SM

SPRING

$

$

Not available

33

Simplicity 1921210SM

CAPSCREW, Hex 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

34

Simplicity 1920415SM

CAPSCREW, Hex 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

35

Simplicity 1712034

SPRING ANCHOR ASSY.

$

$

Not available

36

Simplicity 1922380

CAPSCREW, Hex 7/16-20 x 1-1/4

$

$

Not available

37

Simplicity 1918199SM

LOCKWASHER, Spring 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

38

Simplicity 1707344SM

V-BELT, Traction

$27.99

$

Usually ships in 2-12 days

0

39

Simplicity 960401

KEY, Parallel

$

$

Not available

40

Simplicity 1705136SM

V-PULLEY, Traction

$

$

Not available

41

Simplicity 1705135SM

V-PULLEY, PTO

$

$

Not available

42

Simplicity 1705106SM

V-BELT, PTO

$28.99

$

Usually ships in 2-12 days

0

43

Simplicity 1712030

SPACER, Engine

$

$

Not available

44

Simplicity 2157652

KEY, Square

$

$

Not available

45

Simplicity 1933263SM

WASHER, Plain
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

46

Simplicity 1705272

U-BOLT

$

$

Not available

47

Simplicity 1919326SM

WASHER, Plain

$4.49

$

In Stock, Qty 8

0

48

Simplicity 1712287

BRACKET, Muffler

$

$

Not available

49

Simplicity 1921965SM

CAPSCREW, Hex 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

50

Simplicity 1712755

ELBOW ASSY., Muffler

$

$

Not available

51

Simplicity 1712286SM

CLAMP ASSY., Exhaust

$

$

Not available
