1691844 - Simplicity Wheel Steer Rear-Engine Riding Mower, 18hp Electrical Group (Wheel-Steer Models) Parts Diagram

Wheel Steer Rear-Engine Riding Mower, 18hp

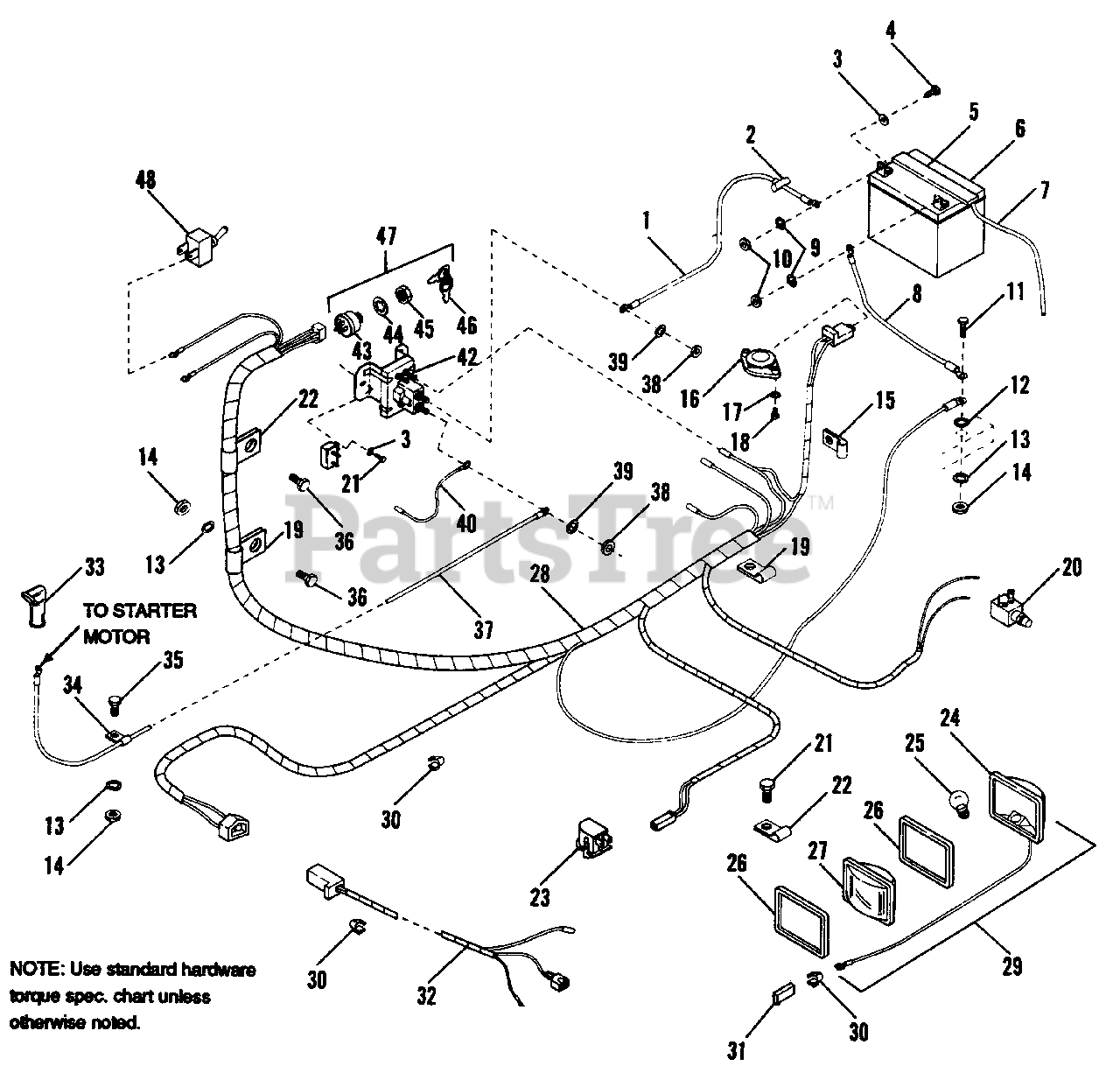

Electrical Group (Wheel-Steer Models) Parts Diagram

  • Title

1

Simplicity 1709088SM

WIRE ASSY., Battery to Solenoid

$11.99

$

Usually ships in 2-12 days

0

2

Simplicity 1677296SM

BOOT, Insulator

$6.49

$

In Stock, Qty 10

0

3

Simplicity 1921319SM

WASHER, Plain
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1923341SM

CAPSCREW, Hex 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

5

Simplicity 1704581

VENTCAP, Battery

$

$

Not available

6

Simplicity 1685215SM

BATTERY

$

$

Not available

7

Simplicity 1612103SM

HOSE, Drain, Battery

$5.49

$

Usually ships in 2-12 days

0

8

Simplicity 1668819SM

WIRE ASSY., Battery to Engine Ground (1681842)

$16.99

$

Usually ships in 2-12 days

0

8

Simplicity 1707056SM

WIRE ASSY., Battery to Engine Ground (1691844, 1691846)

$10.99

$

Usually ships in 2-12 days

0

9

Simplicity 1916964SM

LOCKWASHER, Spring 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

10

Simplicity 1916622SM

NUT, Hex 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

12

Simplicity 2820426SM

LOCKWASHER, External Tooth 5/16

$4.49

$

In Stock, only 1 left!

0

13

Simplicity 1917356SM

LOCKWASHER, Spring 5/16 (1691844, 1691846) LOCKWASHER, Spring 5/16 (1691842)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1917372SM

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1704873SM

CLIP

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1705146SM

SWITCH ASSY., Safety, Seat

$

$

Not available

17

Simplicity 1921880SM

LOCKWASHER, External Tooth 1/4

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 1960357

SCREW, Round Head 1/4-20 x 3/4

$

$

Not available

19

Simplicity 157245

CLAMP

$

$

Not available

20

Simplicity 1710462

SWITCH, Interlock, PTO

$

$

Not available

21

Simplicity 2827429

SCREW, Taptite 1/4-20 x 5/8

$

$

Not available

22

Simplicity 1676952

CLAMP, Wire

$

$

Not available

23

Simplicity 1732004SM

SWITCH, Interlock (Pedal Start)

$8.99

$

In Stock, Qty 20+

0

24

Simplicity 1665934SM

REFLECTOR ASSY.

$

$

Not available

25

BULB #199

$

$

Not available

26

Simplicity 1654662SM

GASKET

$

$

Not available

27

Simplicity 1665934SM

LENS, Clear Plastic

$

$

Not available

28

Simplicity 1705103

HARNESS ASSY., Wheel Steer

$

$

Not available

29

Simplicity 1665934SM

HEADLIGHT ASSY. (Incl. Ref. Nos. 24-28)

$

$

Not available

30

Simplicity 2172434SM

CLIP (1691844, 1691846) CLIP (1691842)

$4.99

$

Usually ships in 2-12 days

0

31

Simplicity 172100

CONNECTOR BODY

$

$

Not available

32

Simplicity 1705105

WIRING ASSY., Harness to Engine (1691842)

$

$

Not available

33

Simplicity 2122023SM

BOOT

$5.99

$

In Stock, Qty 12

0

34

Simplicity 2826917

CLAMP, Wire (1691842)

$

$

Not available

35

Simplicity 1921971SM

CAPSCREW, Hex 5/16-18 x 3/4 (1691842)
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

36

Simplicity 1921333SM

CAPSCREW, Hex 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

37

Simplicity 1701522SM

WIRE ASSY., Solenoid to Starter (1691842)

$

$

Not available

37

Simplicity 1709088SM

WIRE ASSY., Solenoid to Starter (1691844, 1691846)

$11.99

$

Usually ships in 2-12 days

0

38

Simplicity 2820263SM

NUT, Hex 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

39

Simplicity 1917356SM

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

40

Simplicity 1665237SM

WIRE, Circuit Breaker to Solenoid

$11.99

$

In Stock, Qty 7

0

41

Simplicity 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

42

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

43

Simplicity 1686734SM

SWITCH, Ignition (See Ref. No. 47)

$32.99

$

In Stock, Qty 20+

0

44

Simplicity 2818906

LOCKWASHER, Internal Tooth 5/8

$

$

Not available

45

Simplicity 2122234SM

NUT, Hex 5/8-32
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

46

Simplicity 1717163SM

KEYS & RING

$8.99

$

In Stock, Qty 20+

0

47

Simplicity 1686734SM

IGNITION SWITCH ASSY. (Incl. Ref. Nos. 43-46)

$32.99

$

In Stock, Qty 20+

0

48

Simplicity 2122184SM

SWITCH ASSY., Headlight

$22.99

$

Usually ships in 2-12 days

0
