1691843 - Simplicity Lever Steer Rear-Engine Riding Mower, 18hp Height Adjustment and Roller Group Parts Diagram

Lever Steer Rear-Engine Riding Mower, 18hp

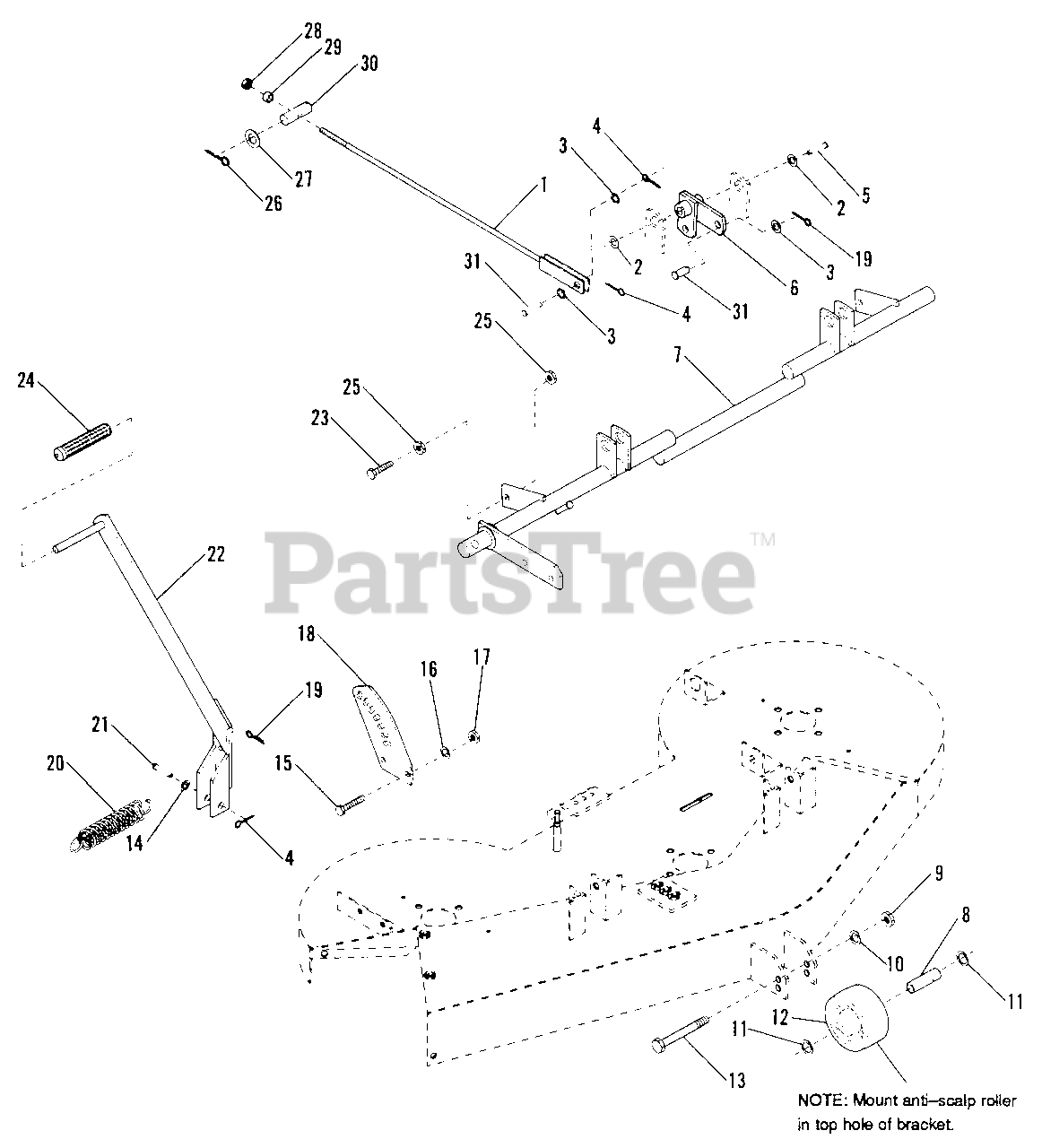

Height Adjustment and Roller Group Parts Diagram

  • Title

1

Simplicity 1712478

ADJUSTING ROD ASSY. (1691847)

$

$

Not available

1

Simplicity 1712008

ADJUSTING ROD ASSY. (1691848 to 1691850)

$

$

Not available

2

Simplicity 1960027SM

WASHER, Plain
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1960206SM

WASHER, Plain

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1918451SM

COTTER PIN

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1603602SM

CLEVIS PIN 1/2 x 2-3/4

$9.99

$

Usually ships in 2-12 days

0

6

Simplicity 1712003

HANGER ASSY.

$

$

Not available

7

Simplicity 1712302

SHAFT ASSY., Lift (1691847)

$

$

Not available

7

Simplicity 1705715

SHAFT ASSY., Lift (1691848)

$

$

Not available

7

Simplicity 1712944

SHAFT ASSY., Lift (1691849)

$

$

Not available

7

Simplicity 1712593

SHAFT ASSY., Lift (1691850)

$

$

Not available

8

Simplicity 1712547SM

SPACER (1691847)

$36.99

$

Usually ships in 2-12 days

0

8

Simplicity 1712547SM

SPACER (1691847) SPACER (1691848, 1691849)

$36.99

$

Usually ships in 2-12 days

0

8

Simplicity 1712547SM

SPACER (1691847) SPACER (1691848, 1691849) SPACER (1691850)

$36.99

$

Usually ships in 2-12 days

0

9

Simplicity 1916951SM

NUT, Hex 1/2-13 (1691847)
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

9

Simplicity 1916951SM

NUT, Hex 1/2-13 (1691847) NUT, Hex 1/2-13 (1691848, 1691849)
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

9

Simplicity 1916951SM

NUT, Hex 1/2-13 (1691847) NUT, Hex 1/2-13 (1691848, 1691849) NUT, Hex 1/2-13 (1691850)
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

10

Simplicity 1916966SM

LOCKWASHER, Spring 1/2 (1691847)
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

10

Simplicity 1916966SM

LOCKWASHER, Spring 1/2 (1691847) LOCKWASHER, Spring 1/2 (1691848, 1691849)
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

10

Simplicity 1916966SM

LOCKWASHER, Spring 1/2 (1691847) LOCKWASHER, Spring 1/2 (1691848, 1691849) LOCKWASHER, Spring 1/2 (1691850)
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

11

Simplicity 1960114SM

WASHER, Plain (1691847)
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1960114SM

WASHER, Plain (1691847) WASHER, Plain (1691848, 1691849)
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1960114SM

WASHER, Plain (1691847) WASHER, Plain (1691848, 1691849) WASHER, Plain (1691850)
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1685440SM

WHEEL, Gauge, 4" Dia. (1691847)

$

$

Not available

12

Simplicity 1685440SM

WHEEL, Gauge, 4" Dia. (1691847) WHEEL, Gauge, 4" Dia. (1691848, 1691849)

$

$

Not available

12

Simplicity 1685440SM

WHEEL, Gauge, 4" Dia. (1691847) WHEEL, Gauge, 4" Dia. (1691848, 1691849) WHEEL, Gauge, 4" Dia. (1691850)

$

$

Not available

13

Simplicity 1960286SM

CAPSCREW, Hex 1/2-13 x 3-1/2 (1691847)

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 1960286SM

CAPSCREW, Hex 1/2-13 x 3-1/2 (1691847) CAPSCREW, Hex 1/2-13 x 3-1/2 (1691848, 1691849)

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 1960286SM

CAPSCREW, Hex 1/2-13 x 3-1/2 (1691847) CAPSCREW, Hex 1/2-13 x 3-1/2 (1691848, 1691849) CAPSCREW, Hex 1/2-13 x 3-1/2 (1691850)

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960206SM

WASHER, Plain

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 1920415SM

CAPSCREW, Hex 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 1916965SM

LOCKWASHER, Spring 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

17

Simplicity 1916950SM

NUT, Hex 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1711718

PLATE, Height Adjusting

$

$

Not available

19

Simplicity 1918196SM

COTTER HAIRPIN
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1710025SM

SPRING, Extension

$30.99

$

Usually ships in 2-12 days

0

21

Simplicity 1722819SM

CLEVIS PIN 1/2 x 2

$6.99

$

In Stock, only 2 left!

0

22

Simplicity 1712010

HANDLE ASSY., Left

$

$

Not available

23

Simplicity 1921969SM

CAPSCREW, Hex 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

24

Simplicity 1710434SM

GRIP, Handle

$

$

Not available

25

Simplicity 1916950SM

NUT, Hex 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1918452SM

COTTER PIN
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

27

Simplicity 2860181

WASHER, Plain

$

$

Not available

28

Simplicity 1930645SM

NUT, Fiber Lock 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

29

Simplicity 1667133

SPACER (1691847)

$

$

Not available

29

Simplicity 1710554

SPACER (1691848 to 1691850)

$

$

Not available

30

Simplicity 1710475

TRUNNION

$

$

Not available

31

Simplicity 2102004SM

CLEVIS PIN 1/2 x 1-1/4

$9.49

$

In Stock, only 2 left!

0
