1691841 - Simplicity Lever Steer Rear-Engine Riding Mower, 16hp Hydro Pump 700-000 & 700-001 Parts Diagram

Lever Steer Rear-Engine Riding Mower, 16hp

Hydro Pump 700-000 & 700-001 Parts Diagram

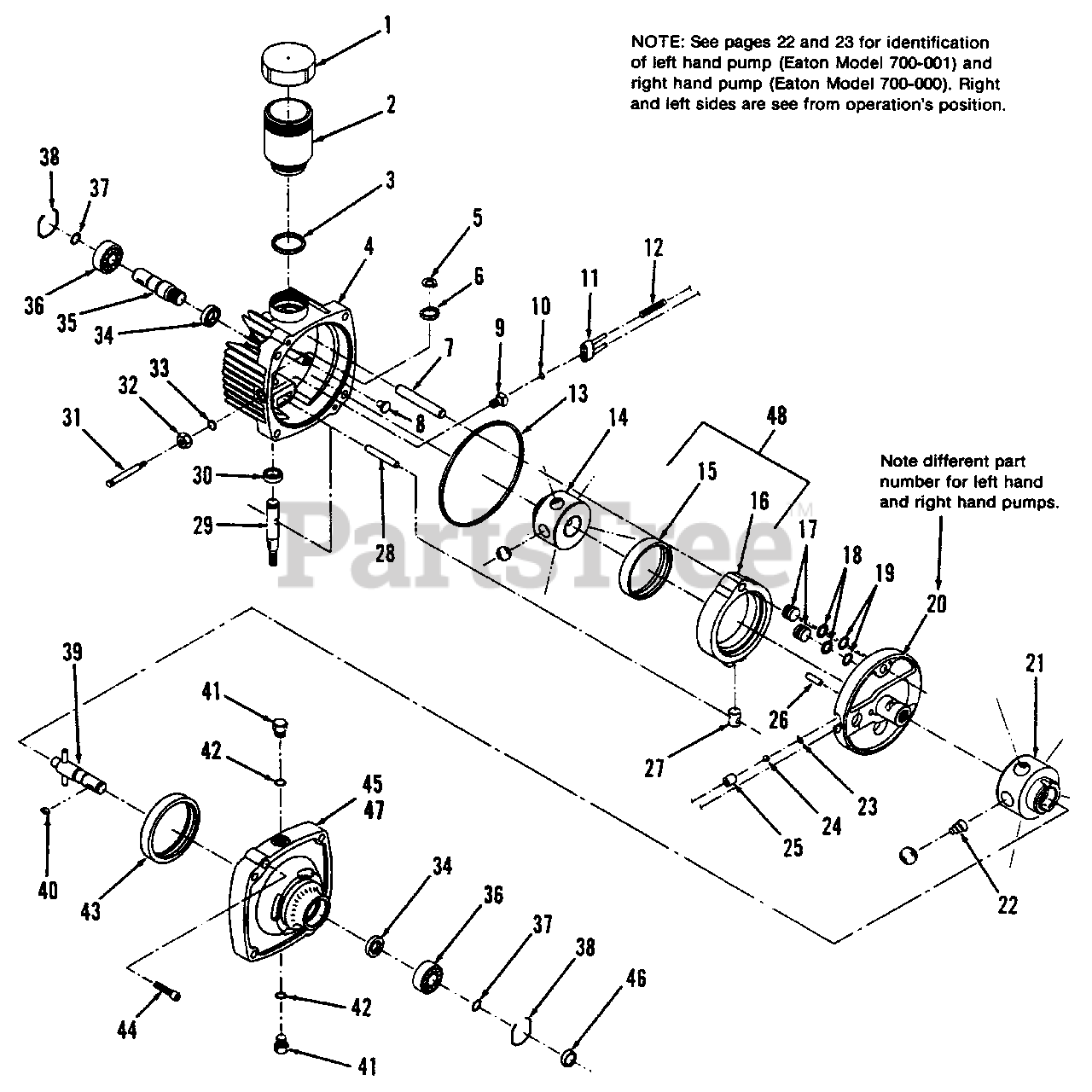

  • Title

1

Simplicity 1700049SM

RESERVOIR COVER, Sub-Assy.

$142.99

$

Usually ships in 2-12 days

0

2

Simplicity 1700050SM

RESERVOIR BODY

$78.99

$

Usually ships in 2-12 days

0

3

Simplicity 1671282SM

SEAL RING, Square Cut

Note: Used on Mfg. No. 1691807 & 1691940 Only.

$6.49

$

In Stock, only 1 left!

0

4

Simplicity 1671283SM

COVER, Service Kit (Includes Ref. Nos. 5, 6, 7, 28, 29, 30 & 34)

$451.99

$

Usually ships in 2-12 days

0

5

Simplicity 1671591SM

RING, External Retaining

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 1671284SM

WASHER, Control Shaft

$5.49

$

Usually ships in 2-12 days

0

7

DOWEL, Pivot Pin (Included in Ref. No. 4)

$

$

Not available

8

Simplicity 1671285SM

BUTTON

$5.99

$

In Stock, only 2 left!

0

9

Simplicity 1671286SM

FITTING GUIDE, O-Ring, S.A.

$38.99

$

Usually ships in 2-12 days

0

10

Simplicity 1671287SM

O-RING

Note: Used on Mfg. No. 1691807 & 1691940 Only.

$3.99

$

In Stock, only 3 left!

0

11

Simplicity 1671586SM

BRACKET, Pins, Sub-Assy.

$27.99

$

Usually ships in 2-12 days

0

12

Simplicity 1671587SM

SPRING, Valve

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 1671288SM

SEAL RING, Square Cut

Note: Used on Mfg. No. 1691807 & 1691940 Only.

$7.99

$

In Stock, only 4 left!

0

14

Simplicity 1671289SM

PUMP ROTOR, Ball, Sub-Assy.

$274.99

$

Usually ships in 2-12 days

0

15

PUMP RACE (Included in Ret. No. 48)

$

$

Not available

16

RING, Cam (Included in Ref. No. 48)

$

$

Not available

17

PISTON (Included in Ref. No. 20)

$

$

Not available

18

RING, Back-Up (Included in Ref. No. 20)

$

$

Not available

19

O-RING (Included in Ref. No. 20)

$

$

Not available

20

Simplicity 1706084SM

PINTLE, Sub-Assy. (Used on RH Eaton Pump - Model 700-000) (Incl. Ref. Nos.17, 18, 19, 23, 24, 25, 26)

$826.99

$

Usually ships in 2-12 days

0

20

Simplicity 1671290SM

PINTLE, Sub-Assy. (Used on LH Eaton Pump - Model 700-001) (Incl. Ref. Nos. 17, 18,19, 23, 24, 25, 26)

$826.99

$

Usually ships in 2-12 days

0

21

Simplicity 1671291SM

MOTOR ROTOR, Ball, Sub-Assy. (Includes Qty. 5 of Ref. No. 22)

$548.99

$

Usually ships in 2-12 days

0

22

Simplicity 1671302SM

SPRING, Piston

$

$

Not available

23

RING, Retaining (Included in Ref. No. 20)

$

$

Not available

24

BALL, Grade 200 (5/16 Dia.) (Included in Ref. No. 20)

$

$

Not available

25

VALVE BODY, Check (Included in Ref. No 20)

$

$

Not available

26

PIN, Coil (5/16 x 3/4) (Included in Ref. No. 20)

$

$

Not available

27

Simplicity 1671301SM

CAM RING, Insert

$38.99

$

Usually ships in 2-12 days

0

28

DOWEL (3/8 x 1-3/4) (Included in Ref. No. 4)

$

$

Not available

29

SHAFT, Control (Included in Ref. No. 4)

$

$

Not available

30

Simplicity 1671300SM

SEAL, Oil

$11.99

$

Usually ships in 2-12 days

0

31

Simplicity 1671299SM

SHAFT, Dump Valve

$29.99

$

Usually ships in 2-12 days

0

32

Simplicity 1671298SM

NUT, Gasket, Sub-Assy.

$

$

Not available

33

Simplicity 1671297SM

O-RING

Note: Used on Mfg. No. 1691807 & 1691940 Only.

$3.99

$

In Stock, Qty 5

0

34

Simplicity 1705979SM

SEAL, Oil

Note: Used on Mfg. No. 1691807 & 1691940 Only.

$12.99

$

Usually ships in 2-12 days

0

35

Simplicity 1671295SM

SHAFT, Input

$120.99

$

Usually ships in 2-12 days

0

36

Simplicity 1705897SM

BEARING, Ball (Input)

$8.49

$

In Stock, Qty 20+

0

37

Simplicity 1671293SM

RING, Snap

$3.99

$

In Stock, only 1 left!

0

38

Simplicity 2827695SM

RING, Retaining

$3.99

$

Usually ships in 2-12 days

0

39

Simplicity 1671309SM

OUTPUT SHAFT, Sub-Assy.

$190.99

$

Usually ships in 2-12 days

0

40

Simplicity 2860397SM

* KEY, Woodruff

$4.49

$

Usually ships in 2-12 days

0

41

Simplicity 1671303SM

O-RING, Sub Assy.

$14.99

$

Usually ships in 2-12 days

0

42

Simplicity 1671304SM

TUBE FITTING, O-Ring

Note: Used on Mfg. No. 1691807 & 1691940 Only.

$5.49

$

In Stock, Qty 6

0

43

Simplicity 1671589SM

MOTOR RACE

$162.99

$

Usually ships in 2-12 days

0

44

Simplicity 1960470SM

CAPSCREW, Socket Hd.

$3.99

$

Usually ships in 2-12 days

0

45

Simplicity 1671305

BODY

$

$

Not available

46

Simplicity 1671306SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

47

Simplicity 1671590SM

BODY, Sub-Assy. (Includes Ref. Nos. 34, 36, 37,38,39,43&45)

$490.99

$

Usually ships in 2-12 days

0

48

Simplicity 1671588SM

CAM RING, Sub-Assy. (Incl. Ref. Nos. 15 & 16)

$

$

Not available
