1691833 - Simplicity Blade Hitch for 42" Dozer Blade for LT Series 42" Snow/Dozer Blade Hitch Parts Diagram

Blade Hitch for 42" Dozer Blade for LT Series

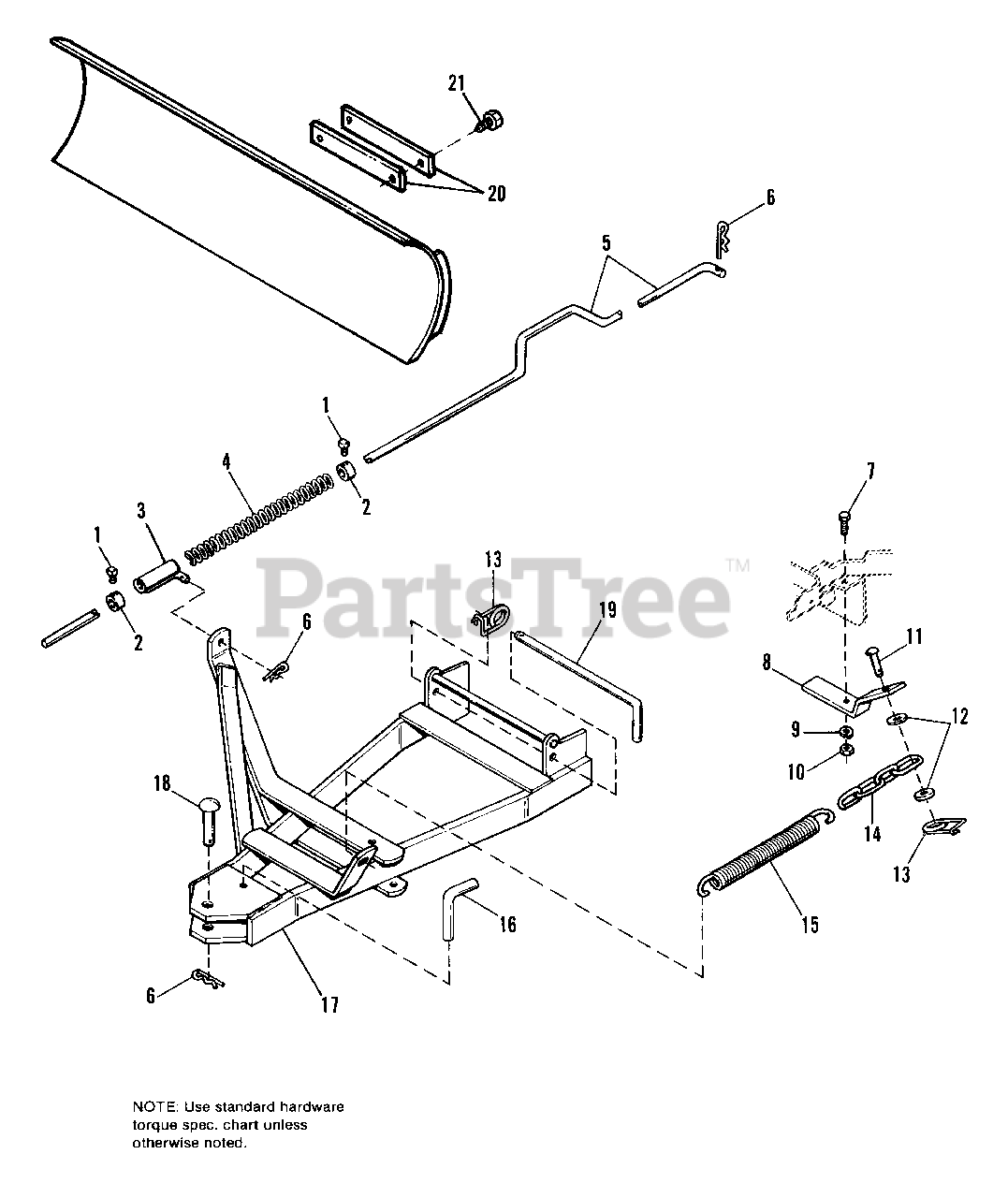

42" Snow/Dozer Blade Hitch Parts Diagram

  • Title

1

Simplicity 1928721SM

SETSCREW, 5/16-18 x 1/2

$4.99

$

In Stock, Qty 5

0

2

Simplicity 1729258SM

COLLAR, Set
(Superseded to 5010477YP)

$

$

Not available

3

Simplicity 2171679SM

GUIDE ASSY, Rod

$76.99

$

Usually ships in 2-12 days

0

4

Simplicity 2171011SM

SPRING

$75.99

$

In Stock, only 1 left!

0

5

Simplicity 1665887SM

ROD, Lift (Mfg. No. 1691833 Only)

$69.99

$

Usually ships in 2-12 days

0

5

Snapper 1707542SM

ROD, Lift (Mfg. No. 1692039 Only)

$

$

Not available

6

Simplicity 1960033SM

CLIP, Spring

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1921333SM

CAPSCREW, Hex, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

8

Simplicity 1704757SM

BRACKET, Spring Anchor
(Superseded to 1704757ASM)

$29.99

$

Usually ships in 2-12 days

0

9

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1655651SM

PIN, Hitch
(Superseded to 1733568SM)

$6.99

$

In Stock, only 2 left!

0

12

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 2176012SM

CLIP, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1669241SM

CHAIN, 4-Link

$7.99

$

Usually ships in 2-12 days

0

15

Simplicity 1675232SM

SPRING

$20.99

$

Usually ships in 2-12 days

0

16

Simplicity 1678549SM

PlN, Pivot

$13.99

$

Usually ships in 2-12 days

0

17

Simplicity 1708115SM

PUSH BAR ASSY.

$278.99

$

Usually ships in 2-12 days

0

18

Simplicity 1603602SM

PIN, King

$9.99

$

Usually ships in 2-12 days

0

19

Simplicity 1715758SM

ROD, Latch

$

$

Not available

20

Simplicity 1709813SM

BAR STOP.(Mfg. No. 1692039 Only)
(Superseded to 1709813ASM)

$7.49

$

Usually ships in 2-12 days

0

21

Simplicity 1960373SM

SCREW, Hex, Taptite, 5/16-18 x 1 (Mfg. No. 1692039 Only)
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0
