1691810 - Simplicity Turbo Blower System for 42" & 48" Mower Turbo Blower System (42" & 48" Mowers) Parts Diagram

Turbo Blower System for 42" & 48" Mower

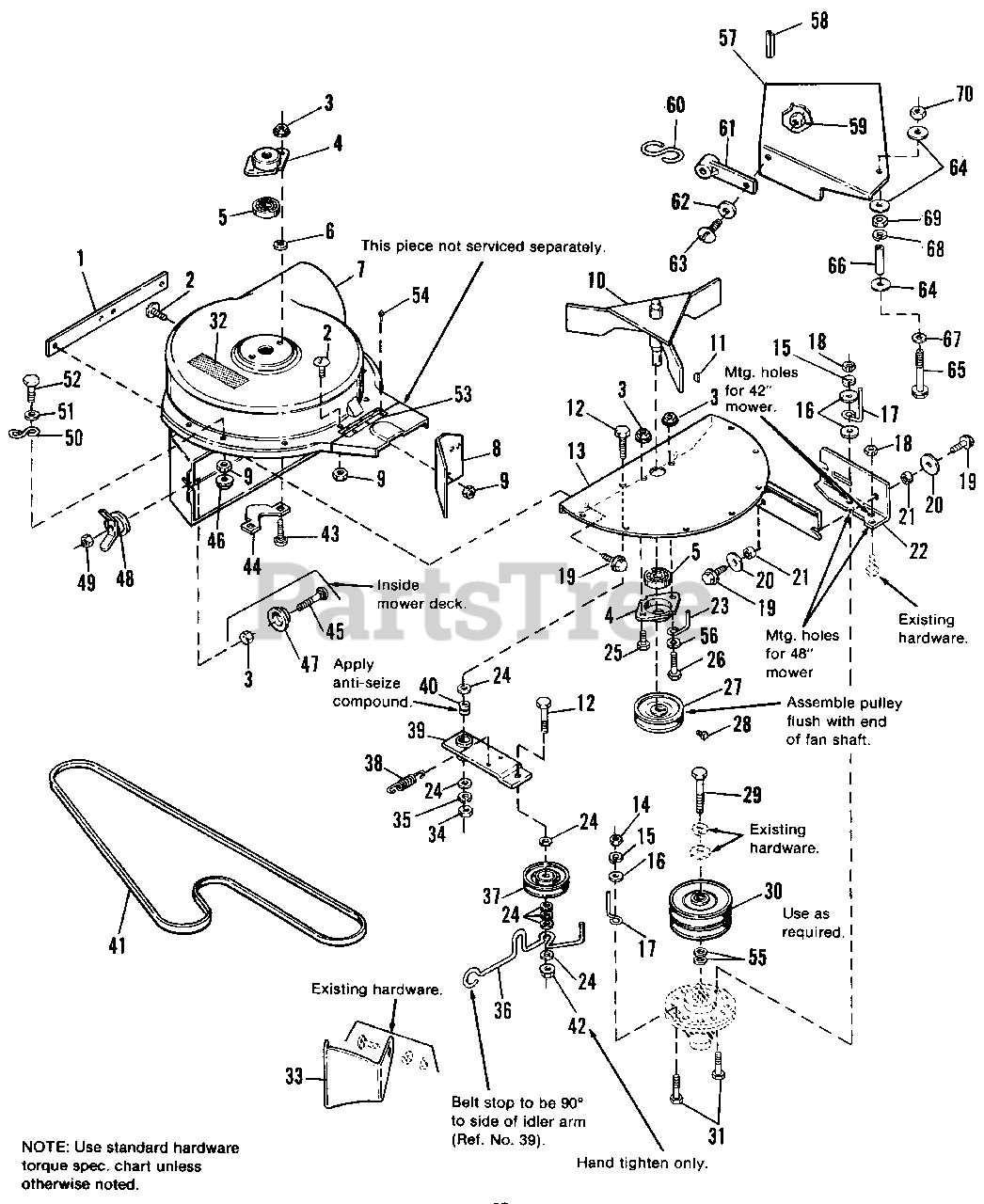

Turbo Blower System (42" & 48" Mowers) Parts Diagram

  • Title

1

Simplicity 1706630

STRAP, Reinforcement, Blower Housing
(Superseded to 1706630ASM)

$9.49

$

In Stock, only 1 left!

0

2

Simplicity 1921959SM

CAPSCREW, Hex Hd., 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

3

Simplicity 1927557SM

NUT, Flange Lock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

4

Simplicity 1667341SM

BEARING, Retainer
(Superseded to 703155)

$5.99

$

In Stock, Qty 15

0

5

Simplicity 1705897SM

BEARING

$8.49

$

In Stock, Qty 20+

0

6

Simplicity 2833988

PUSHNUT, 5/16

$

$

Not available

7

Simplicity 1700231SM

FAN HOUSING & HINGE ASSY. (Inc. Ref. Nos. 32, 53 & 54)

$450.99

$

In Stock, only 1 left!

0

8

Simplicity 1678994SM

BAFFLE, Fan Housing
(Superseded to 1678994AYP)

$15.99

$

In Stock, only 1 left!

0

9

Simplicity 1930641SM

NUT, Hex, Nylon Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1707157

FAN ASSY.
(Superseded to 1707157ASM)

$202.99

$

Usually ships in 2-12 days

0

11

Simplicity 2818312SM

KEY, Woodruff #61, 3/16 x 5/8
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

12

Simplicity 1921971SM

CAPSCREW, Hex, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

13

Simplicity 1678705SM

PLATE ASSY.

$

$

Not available

14

Simplicity 1917372SM

NUT, Hex, Full 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1919381SM

WASHER, Plain
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

17

Simplicity 1679105SM

STOP, Belt

$5.49

$

Usually ships in 2-12 days

0

18

Simplicity 1928698SM

NUT, Hex Jam Lock, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 1927429SM

SCREW, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

20

Simplicity 1960151SM

WASHER, 1/4
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

21

Simplicity 1675339SM

SPACER

$21.99

$

Usually ships in 2-12 days

0

22

Simplicity 1678676SM

BRACHET, Arbor

$26.99

$

Usually ships in 2-12 days

0

23

Simplicity 1678924

STOP, Belt

$

$

Not available

24

Simplicity 1924940SM

WASHER, Plain, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1920787SM

CAPSCREW, Hex, 5/16-18 x 1/2
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

26

Simplicity 1960122SM

CAPSCREW, Hex, 5/16-18 x 3/4

$6.99

$

Usually ships in 2-12 days

0

27

Simplicity 1706634SM

PULLEY, Driven

$45.99

$

In Stock, only 3 left!

0

28

Simplicity 1960619SM

SETSCREW, Sq. Hd., 5/16-18 x 5/8

$3.49

$

In Stock, Qty 10

0

29

Simplicity 1927120SM

CAPSCREW, Hex, 7/16-14 x 2-1/4

$6.99

$

Usually ships in 2-12 days

0

30

Simplicity 1678609ASM

PULLEY ASSY.

$

$

Not available

31

Simplicity 1933689SM

CAPSCREW, Hex, 5/16-18 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

32

Simplicity 1700259SM

DECAL, Danger, Blower

$27.99

$

Usually ships in 2-12 days

0

33

Simplicity 1678646SM

BAFFLE, Discharge

$50.99

$

Usually ships in 2-12 days

0

34

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

35

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

36

Simplicity 1701095SM

STOP, Belt

$18.99

$

Usually ships in 2-12 days

0

37

Simplicity 2174561SM

PULLEY, Idler

$53.99

$

Usually ships in 2-12 days

0

38

Simplicity 1679554SM

SPRING, Tension

$7.49

$

Usually ships in 2-12 days

0

39

Simplicity 1700861SM

IDLER ARM ASSY.

$43.99

$

Usually ships in 2-12 days

0

40

Simplicity 1666114SM

SPACER
(Superseded to 703140)

$11.99

$

Usually ships in 2-12 days

0

41

Simplicity 1700415SM

BELT, Turbo

$24.99

$

In Stock, Qty 9

0

42

Simplicity 1930645SM

NUT, Hex, Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

43

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

44

Simplicity 1678811

PLATE, Flange, Blower Housing

$

$

Not available

45

Simplicity 1960273SM

CARRIAGE BOLT, 5/16-18 x 2-1/4
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

46

Simplicity 1930642SM

NUT, Flange Lock, 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

47

Simplicity 1679164ASM

CUP

$56.99

$

Usually ships in 2-12 days

0

48

Simplicity 1679163SM

NUT ASSY., Wing

$69.99

$

In Stock, only 1 left!

0

49

Simplicity 1923362SM

NUT, Hex, Full, Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

50

Simplicity 1672689SM

"S" HOOK

$31.99

$

Usually ships in 2-12 days

0

51

Simplicity 1921319SM

WASHER, Plain, 9/32
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

52

Simplicity 1921961SM

CAPSCREW, Hex Hd., 1/4-20 x 1-1/4

$4.49

$

In Stock, only 3 left!

0

53

Simplicity 1679207SM

HINGE

$142.99

$

Usually ships in 2-12 days

0

54

Simplicity 1673450SM

RIVET, Pop

$3.49

$

In Stock, Qty 5

0

55

Simplicity 1960114SM

WASHER (As Required)
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

56

Simplicity 1919326SM

WASHER, 11/32

$4.49

$

In Stock, Qty 8

0

57

Simplicity 1704960SM

COVER ASSY., Pulley

$39.99

$

Usually ships in 2-12 days

0

58

Simplicity 1679165

MOLDING

Note: Used on Mfg. No. 1691810 only.

$

$

Not available

59

Simplicity 1930627SM

NUT, Hex, Full Lock, #10-32

Note: Used on Mfg. No. 1691810 only.

$2.99

$

Usually ships in 2-12 days

0

60

Simplicity 1679204SM

"S" HOOK

Note: Used on Mfg. No. 1691810 only.

$2.99

$

Usually ships in 2-12 days

0

61

Simplicity 1679205SM

STRAP

Note: Used on Mfg. No. 1691810 only.

$9.49

$

Usually ships in 2-12 days

0

62

Simplicity 1960096SM

WASHER, Special

Note: Used on Mfg. No. 1691810 only.

$3.99

$

Usually ships in 2-12 days

0

63

Simplicity 1930531SM

SCREW, Truss, #10-32 x 1/2

Note: Used on Mfg. No. 1691810 only.

$4.49

$

In Stock, only 2 left!

0

64

Simplicity 1920283SM

WASHER, Special

Note: Used on Mfg. No. 1691810 only.

$4.99

$

In Stock, Qty 5

0

65

Simplicity 1960272SM

CAPSCREW, Hex, 5/16-18 x 5-1/2

Note: Used on Mfg. No. 1691810 only.

$12.99

$

Usually ships in 2-12 days

0

66

Simplicity 1679085SM

SPACER

Note: Used on Mfg. No. 1691810 only.

$35.99

$

Usually ships in 2-12 days

0

67

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

Note: Used on Mfg. No. 1691810 only.

$4.49

$

In Stock, only 2 left!

0

68

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

Note: Used on Mfg. No. 1691810 only.

$3.49

$

In Stock, Qty 20+

0

69

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

Note: Used on Mfg. No. 1691810 only.

$3.49

$

In Stock, Qty 20+

0

70

Simplicity 1923362SM

NUT, Hex, Full, Lock, 5/16-18
(Superseded to 703164)

Note: Used on Mfg. No. 1691810 only.

$3.49

$

In Stock, Qty 19

0
