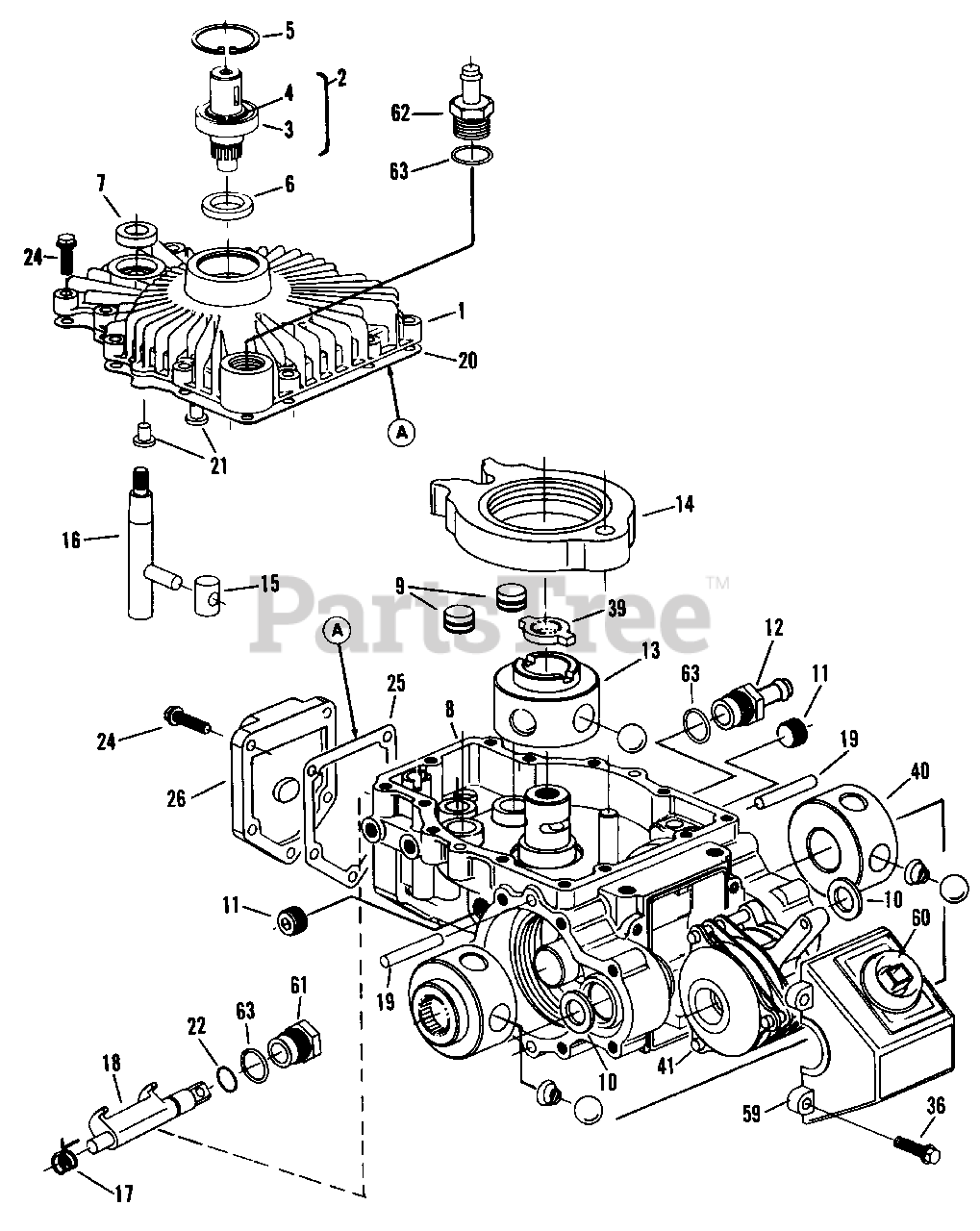

1691799 - Simplicity LTH 44" Lawn Tractor, 16hp Transmission/Housing Group Parts Diagram

LTH 44" Lawn Tractor, 16hp

Transmission/Housing Group Parts Diagram

  • Title

1

Simplicity 1702706SM

COVER SUBASSY., Top (use with 1702247 shaft)

Note: Used on Eaton 75O before Date Code 080190.

$333.99

$

Usually ships in 2-12 days

0

1

Simplicity 1705977

COVER SUBASSY., Top (use with 1705978 shaft)

Note: Used on Eaton 750 after Date Code 073190.

$

$

Not available

2

Simplicity 1702247

SHAFT, Input, .75" Dia. (use with 1702706 cover)

Note: Used on Eaton 75O before Date Code 080190.

$

$

Not available

2

Simplicity 1705978SM

SHAFT, Input, 17mm (.67") Dia. (use with 1705977 cover)

Note: Used on Eaton 750 after Date Code 073190.

$250.99

$

Usually ships in 2-12 days

0

3

BEARING, Input Shaft (See Ref. No. 2)

$

$

Not available

4

RING, Retaining, External (See Ref. No. 2)

$

$

Not available

5

Simplicity 1702707SM

RING, Retainer, Internal

$5.49

$

Usually ships in 2-12 days

0

6

Simplicity 1702248SM

SEAL, Oil

Note: Used on Eaton 75O before Date Code 080190.

$11.99

$

Usually ships in 2-12 days

0

6

Simplicity 1705979SM

SEAL, Oil

Note: Used on Eaton 750 after Date Code 073190.

$12.99

$

Usually ships in 2-12 days

0

7

Simplicity 1671300SM

SEAL, Oil

$11.99

$

Usually ships in 2-12 days

0

8

Simplicity 1702744SM

HOUSING, CW

$

$

Not available

9

Simplicity 1702709SM

PISTON, Quieting

$

$

Not available

10

Simplicity 1702249SM

SEAL, Lip, Radial

$43.99

$

Usually ships in 2-12 days

0

11

Simplicity 930674

PLUG, Socket, Pipe

$

$

Not available

12

Simplicity 1702750SM

ADAPTOR

$75.99

$

Usually ships in 2-12 days

0

13

Simplicity 1702745SM

PUMP, Rotor, Ball

$

$

Not available

14

Simplicity 1708125SM

CAM, Ring

$212.99

$

Usually ships in 2-12 days

0

15

Simplicity 1702251SM

INSERT

$11.99

$

Usually ships in 2-12 days

0

16

Simplicity 1702252SM

CONTROL SHAFT

$

$

Not available

17

Simplicity 1702253SM

SPRING, Dump Valve

$8.49

$

Usually ships in 2-12 days

0

18

Simplicity 1702254SM

BRACKET

$66.99

$

Usually ships in 2-12 days

0

19

Simplicity 1702712SM

DOWEL

$5.49

$

Usually ships in 2-12 days

0

20

Simplicity 1702255SM

GASKET COVER (See "A" Below)

$

$

Not available

21

Simplicity 1671285SM

BUTTON

$5.99

$

In Stock, only 2 left!

0

22

Simplicity 1671297SM

O-RING

$3.99

$

In Stock, Qty 5

0

24

Simplicity 1702705SM

CAPSCREW, Hex, Flange, 1/4-20

$

$

Not available

25

Simplicity 1702279SM

GASKET, Valve Cover (See HA" Below)

$6.99

$

Usually ships in 2-12 days

0

26

Simplicity 1702747SM

COVER, Valve

$51.99

$

Usually ships in 2-12 days

0

36

Simplicity 1702268SM

SCREW, 1/4-20 Self Tap

$2.49

$

Usually ships in 2-12 days

0

39

Simplicity 1702714SM

DRIVE

$11.99

$

Usually ships in 2-12 days

0

40

Simplicity 1702748SM

MOTOR, Rotor, Ball

$341.99

$

Usually ships in 2-12 days

0

41

Simplicity 1702271SM

BRAKE ASSY., Parking

$

$

Not available

59

Simplicity 1702286SM

COVER, Parking Brake

$

$

Not available

60

Simplicity 1702287SM

BOOT, Dust

$35.99

$

Usually ships in 2-12 days

0

61

Simplicity 1702720SM

FITTING

$34.99

$

Usually ships in 2-12 days

0

62

Simplicity 1703223SM

ADAPTER, Resv. 3/8"

$38.99

$

Usually ships in 2-12 days

0

63

Simplicity 1702284SM

O-RING, Fitting

$6.49

$

Usually ships in 2-12 days

0

A

Simplicity 1702280SM

GASKET OVERHAUL KIT (Incl. Ref. Nos. 20, 25 & 23-next page)

$29.99

$

Usually ships in 2-12 days

0
