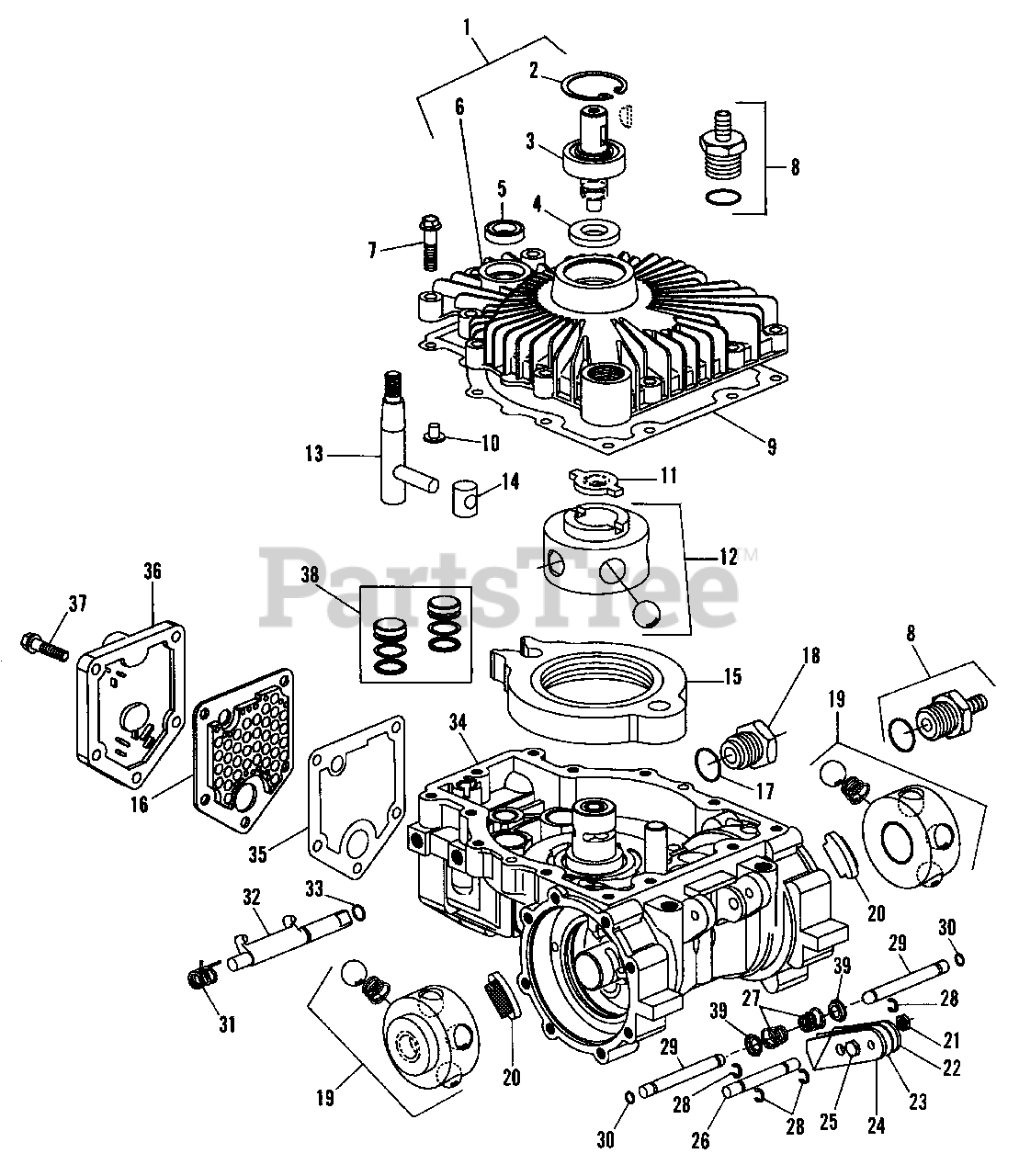

1691799 - Simplicity LTH 44" Lawn Tractor, 16hp Housing Group Parts Diagram

LTH 44" Lawn Tractor, 16hp

Housing Group Parts Diagram

  • Title

1

Simplicity 1705977

COVER ASSY. (Incl. Ref. Nos. 2, 3, 4, 5 & 6)

$

$

Not available

2

Simplicity 1702707SM

RING, Ret, External

$5.49

$

Usually ships in 2-12 days

0

3

Simplicity 1705978SM

SHAFT ASSY, Input

$250.99

$

Usually ships in 2-12 days

0

4

Simplicity 1705979SM

SEAL, Input Shaft

$12.99

$

Usually ships in 2-12 days

0

5

Simplicity 1671300SM

SEAL, Control Shaft

$11.99

$

Usually ships in 2-12 days

0

6

COVER (See Ref. No. 1)

$

$

Not available

7

Simplicity 1702268SM

SELF-TAP SCREW, .25-20

$2.49

$

Usually ships in 2-12 days

0

8

Simplicity 1708152SM

O-RING BARB FITTING ASSY.

$15.99

$

Usually ships in 2-12 days

0

9

Simplicity 1702255SM

COVER GASKET

$

$

Not available

10

Simplicity 1671285SM

BUTTON

$5.99

$

In Stock, only 2 left!

0

11

Simplicity 1702714SM

DRIVE

$11.99

$

Usually ships in 2-12 days

0

12

Simplicity 1702745SM

PUMP, Rotor-Ball

$

$

Not available

13

Simplicity 1702252SM

CONTROL SHAFT

$

$

Not available

14

Simplicity 1702251SM

INSERT

$11.99

$

Usually ships in 2-12 days

0

15

Simplicity 1708125SM

CAM RING

$212.99

$

Usually ships in 2-12 days

0

16

Simplicity 1708130SM

FILTER, Hydraulic

$119.99

$

Usually ships in 2-12 days

0

17

Simplicity 1702284SM

O-RING

$6.49

$

Usually ships in 2-12 days

0

18

Simplicity 1702720SM

FITTING

$34.99

$

Usually ships in 2-12 days

0

19

Simplicity 1702748SM

MOTOR ROTOR-BALL, 18 Teeth

$341.99

$

Usually ships in 2-12 days

0

20

Simplicity 1708135SM

PAD, Friction

$29.99

$

Usually ships in 2-12 days

0

21

Simplicity 1708171SM

NUT, Hex, Lock

$2.99

$

Usually ships in 2-12 days

0

22

Simplicity 1708169SM

LEVER, Brake, LH

$

$

Not available

23

Simplicity 1708170SM

SHIM

$11.99

$

Usually ships in 2-12 days

0

24

Simplicity 1708168SM

LEVER, Brake, RH

$

$

Not available

25

Simplicity 1708167

SCREW, Cap, Hex

$

$

Not available

26

Simplicity 1708166SM

SHAFT, Brake

$20.99

$

Usually ships in 2-12 days

0

27

Simplicity 1708165SM

SPRING, Conical

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 1708163SM

E-RING

$3.49

$

Usually ships in 2-12 days

0

29

Simplicity 1708162SM

ROD, Push

$15.99

$

Usually ships in 2-12 days

0

30

Simplicity 1708161SM

QUAD SEAL

$4.99

$

Usually ships in 2-12 days

0

31

Simplicity 1702253SM

SPRING, Dump Valve

$8.49

$

Usually ships in 2-12 days

0

32

Simplicity 1702254SM

BRACKET

$66.99

$

Usually ships in 2-12 days

0

33

Simplicity 1671297SM

O-RING

$3.99

$

In Stock, Qty 5

0

34

Simplicity 1708127SM

HOUSING

$1538.99

$

Usually ships in 2-12 days

0

35

Simplicity 1708131SM

VALVE COVER GASKET

$7.49

$

Usually ships in 2-12 days

0

36

Simplicity 1708128SM

VALVE COVER

$51.99

$

Usually ships in 2-12 days

0

37

Simplicity 1707205

CAPSCREW, Hex, Flange, 1/4-20

$

$

Not available

38

Simplicity 1702709SM

PISTON, Quieting

$

$

Not available

39

Simplicity 1708404SM
