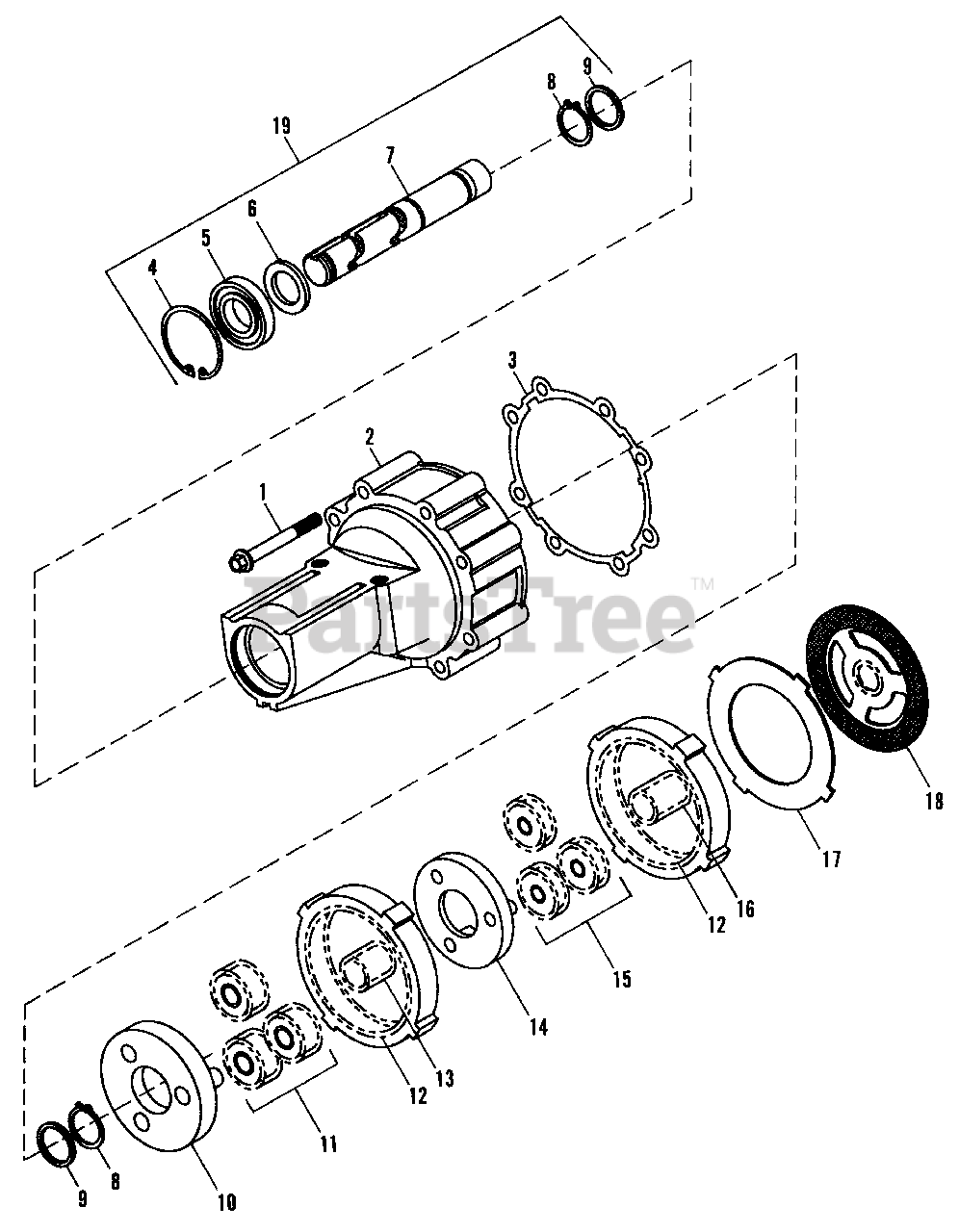

1691799 - Simplicity LTH 44" Lawn Tractor, 16hp Axle Group Parts Diagram

LTH 44" Lawn Tractor, 16hp

Axle Group Parts Diagram

  • Title

1

Simplicity 1708133SM

SCREW, .25-20 Hex Flg.

$

$

Not available

2

Simplicity 1708148SM

HOUSING, Axle

$159.99

$

Usually ships in 2-12 days

0

3

Simplicity 1708134SM

AXLE HOUSING GASKET

$16.99

$

Usually ships in 2-12 days

0

4

Simplicity 1702261SM

RING, Ret., Internal

$12.99

$

Usually ships in 2-12 days

0

5

Simplicity 1702264SM

BEARING, Ball

$44.99

$

Usually ships in 2-12 days

0

6

Simplicity 1702263SM

SEAL, Radial Lip

$19.99

$

Usually ships in 2-12 days

0

7

Simplicity 1708149SM

SHAFT, Aide

$135.99

$

Usually ships in 2-12 days

0

8

Simplicity 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

9

Snapper 1702266SM

WASHER, Thrust

$17.99

$

Usually ships in 2-12 days

0

10

Simplicity 1708144SM

SECONDARY CARRIER

$100.99

$

Usually ships in 2-12 days

0

11

Simplicity 1708143SM

GEAR, Second, 18 Teeth

$23.99

$

Usually ships in 2-12 days

0

12

Simplicity 1708139SM

GEAR, Ring, 54 Teeth

$23.99

$

Usually ships in 2-12 days

0

13

Simplicity 1708142SM

SUN GEAR, Second, 18 Teeth

$16.99

$

Usually ships in 2-12 days

0

14

Simplicity 1708141SM

PRIMARY CARRIER, 18 Teeth

$102.99

$

Usually ships in 2-12 days

0

15

Simplicity 1708140SM

GEAR, First, 18 Teeth

$27.99

$

Usually ships in 2-12 days

0

16

Simplicity 1708138SM

GEAR, First, 18 Teeth

$19.99

$

Usually ships in 2-12 days

0

17

Simplicity 1708137SM

PLATE, Back-up

$12.99

$

Usually ships in 2-12 days

0

18

Simplicity 1708136SM

PLATE, Reaction

$26.99

$

Usually ships in 2-12 days

0

19

Simplicity 1708145

AXLE HOUSING ASSY. (Contains Ref. Nos. 2, 4-9)

$

$

Not available
