1691792 - Simplicity Clean Sweep Turbo Twin Grass Catcher for 42" Mower Hitch Group Parts Diagram

Clean Sweep Turbo Twin Grass Catcher for 42" Mower

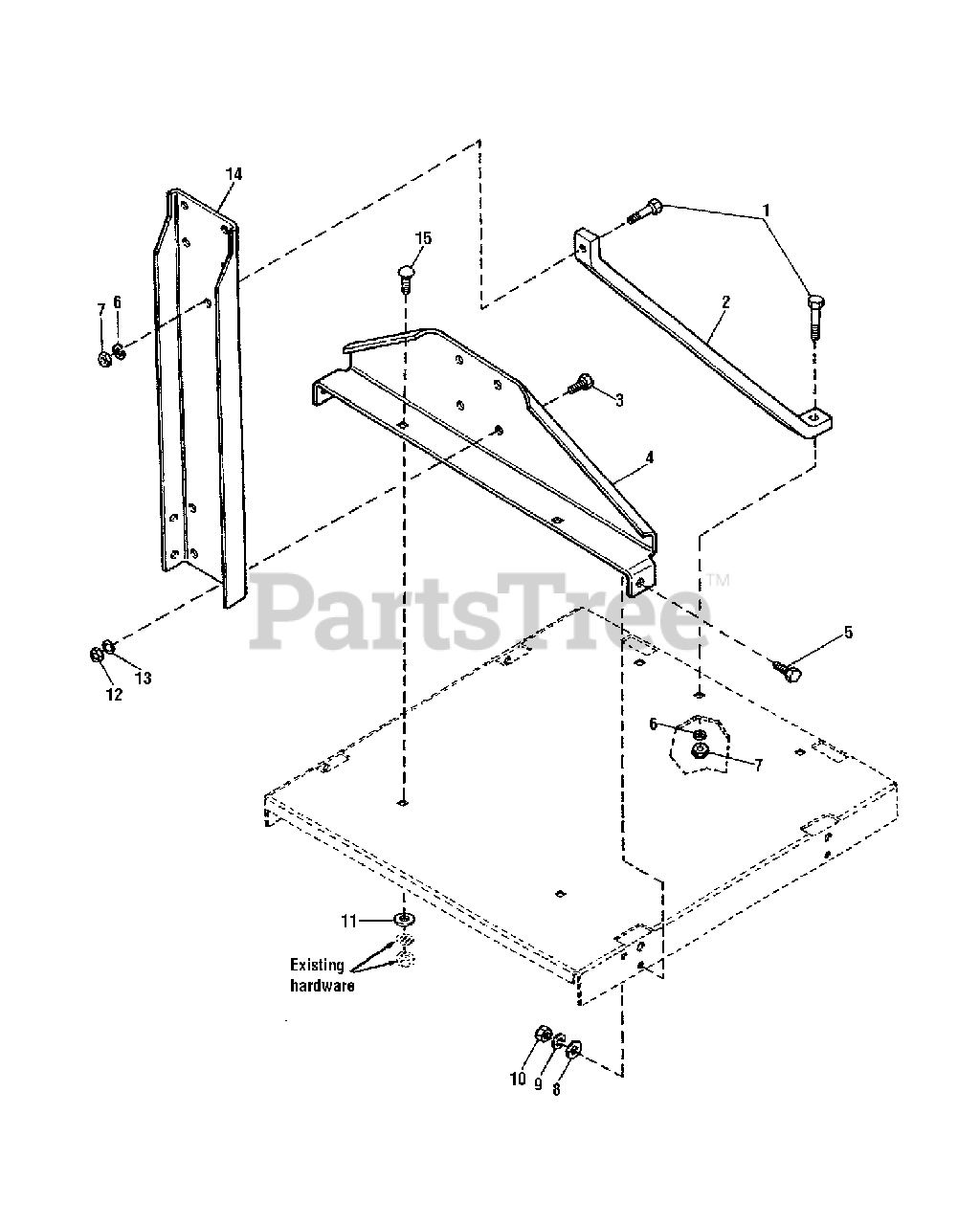

Hitch Group Parts Diagram

  • Title

1

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/1 6-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

2

Simplicity 1705072A

BRACE, Bar

$

$

Not available

3

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

4

Simplicity 1703844SM

BRACKET, Lower

$128.99

$

Usually ships in 2-12 days

0

5

Simplicity 1921959SM

CAPSCREW, Hex Head, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

10

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1933468SM

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

14

Simplicity 1703846A

SUPPORT

$

$

Not available

15

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0
