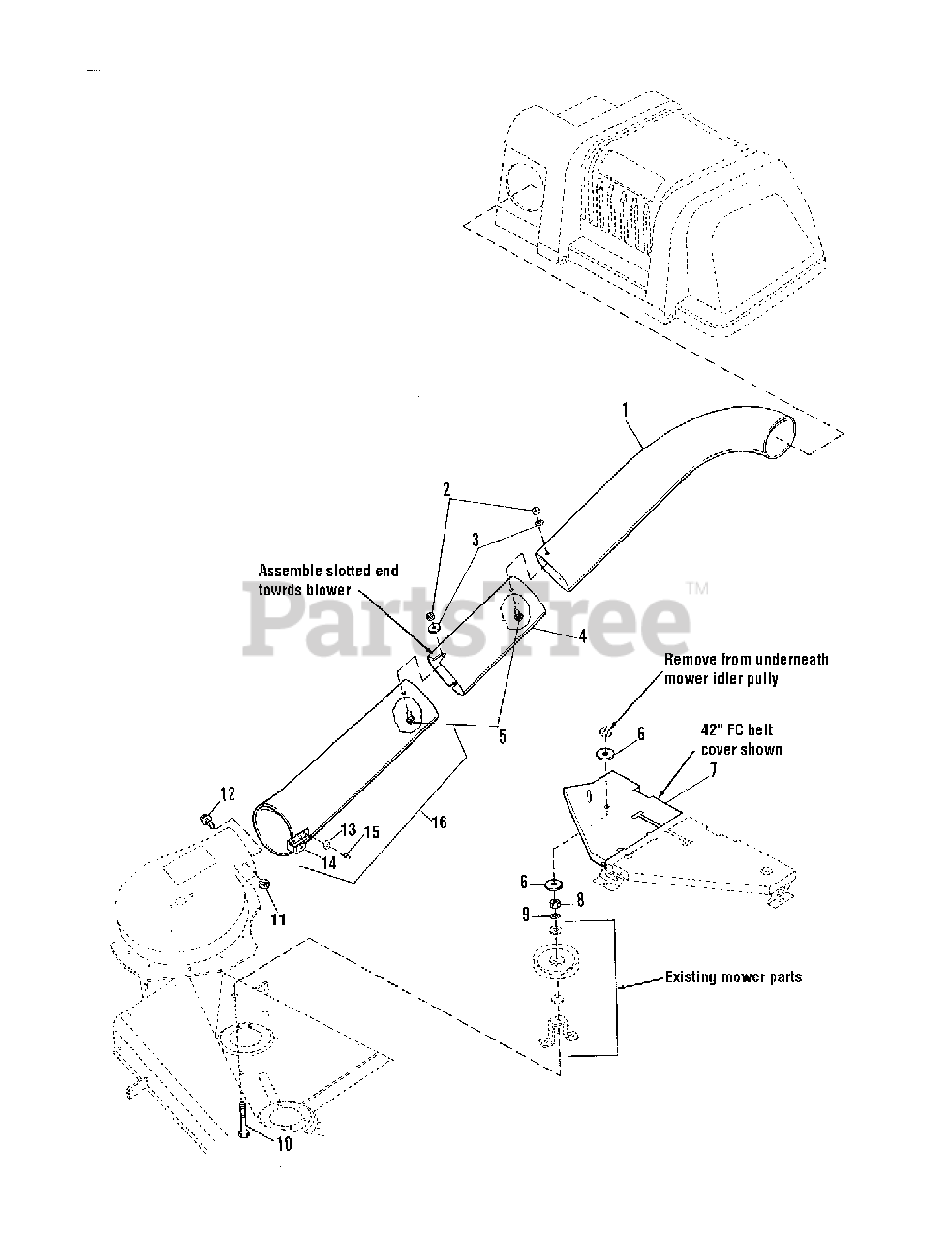

1691792 - Simplicity Clean Sweep Turbo Twin Grass Catcher for 42" Mower Adapter, Blade & Tube Group Parts Diagram

Clean Sweep Turbo Twin Grass Catcher for 42" Mower

Adapter, Blade & Tube Group Parts Diagram

  • Title

1

Simplicity 1704283SM

TUBE, Upper

$91.99

$

Usually ships in 2-12 days

0

2

Simplicity 1933896SM

NUT, Hex, Nylock #10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

3

Simplicity 1960096SM

WASHER, Flat

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1704854SM

TUBE, Middle

$51.99

$

Usually ships in 2-12 days

0

5

Simplicity 1960404SM

SCREW, Truss Head, #10-24 x 3/4

$3.99

$

In Stock, only 4 left!

0

6

Simplicity 1924356SM

WASHER
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

7

Simplicity 1704369A

COVER ASSEMBLY, Belt

$

$

Not available

8

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

10

Simplicity 1922130SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 1930641SM

NUT, Hex Flange, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1960252SM

CARRIAGE BOLT, 1/4-20 x 3/4

$3.99

$

In Stock, only 1 left!

0

13

Simplicity 1910531SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 1705063SM

CLIP, Spring
(Superseded to 1705063YP)

$

$

Not available

15

Simplicity 2810542SM

RIVET

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 1705112SM

TUBE ASSEMBLY, Lower (Inc. Ref. Nos. 13, 14, & 15)

$97.99

$

Usually ships in 2-12 days

0
