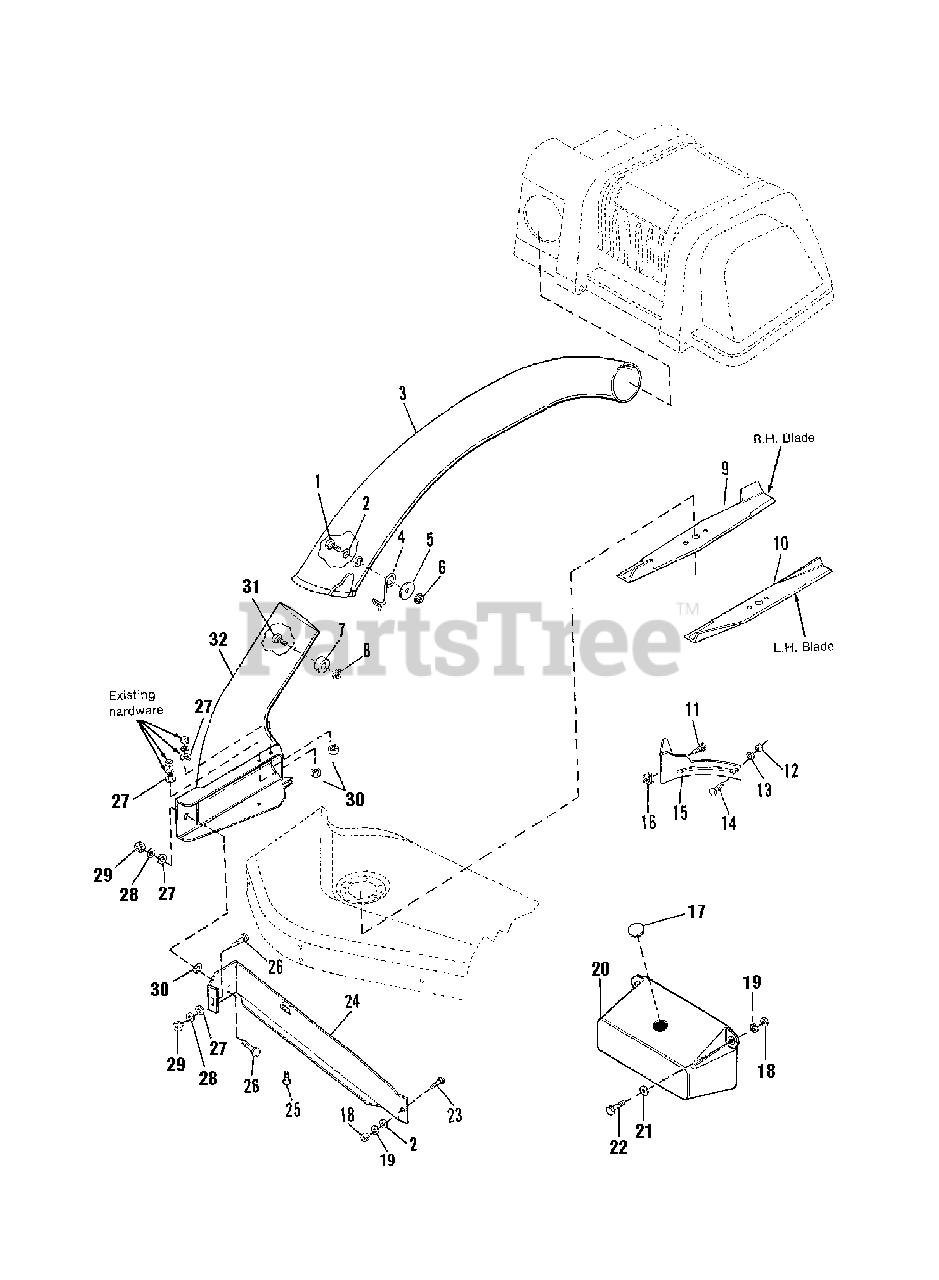

1691790 - Simplicity Clean Sweep Twin Grass Catcher for 36" Mower Adapter & Blade Group Parts Diagram

Clean Sweep Twin Grass Catcher for 36" Mower

Adapter & Blade Group Parts Diagram

  • Title

1

Simplicity 1960122SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$6.99

$

Usually ships in 2-12 days

0

2

Simplicity 1919326SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 8

0

3

Simplicity 1703769SM

TRANSFER TUBE

$301.99

$

Usually ships in 2-12 days

0

4

Simplicity 1704603SM

LATCH, Tube

$6.49

$

Usually ships in 2-12 days

0

5

Simplicity 1960185SM

WASHER, Flat

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 1935048SM

NUT, Flange Lock, 3/8
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

7

Simplicity 1704341SM

WASHER, Special

$42.99

$

Usually ships in 2-12 days

0

8

Simplicity 1919438SM

NUT, Esna, Hex Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1671565ASM

BLADE, R.H.
(Superseded to 1726357ASM)

$27.99

$

In Stock, Qty 20+

0

10

Simplicity 1671593ASM

BLADE, L.H.

$

$

Not available

11

Simplicity 1931646SM

CAPSCREW, Whizlock, 1/4-20 x 1/2

$4.49

$

In Stock, only 2 left!

0

12

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

14

Simplicity 1960252SM

CARRIAGE BOLT, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

15

Simplicity 1672171A

BAFFLE, Deflector Side

$

$

Not available

16

Simplicity 2820462

NUT, Retainer, 1/4-20

$

$

Not available

17

Simplicity 1674020SM

PLUG, Hole

$4.49

$

In Stock, Qty 7

0

18

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

COUNTERWEIGHT

$

$

Not available

21

Simplicity 1919381SM

WASHER, Plain
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

22

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

23

Simplicity 1931334SM

CARRIAGE BOLT, 5/16-18 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

24

Simplicity 1656053ASM

BAFFLE ASSEMBLY, Discharge

$84.99

$

Usually ships in 2-12 days

0

25

Simplicity 1924856SM

CAPSCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

26

Simplicity 1931348SM

CARRIAGE BOLT, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

29

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1931942SM

NUT, Push, 3/8
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

31

Simplicity 1960371SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$5.49

$

Usually ships in 2-12 days

0

32

Simplicity 1705065SM

ADAPTER

$131.99

$

Usually ships in 2-12 days

0
