1691789 - Simplicity Clean Sweep Twin Grass Catcher for 30" Mower Hitch Group Parts Diagram

Clean Sweep Twin Grass Catcher for 30" Mower

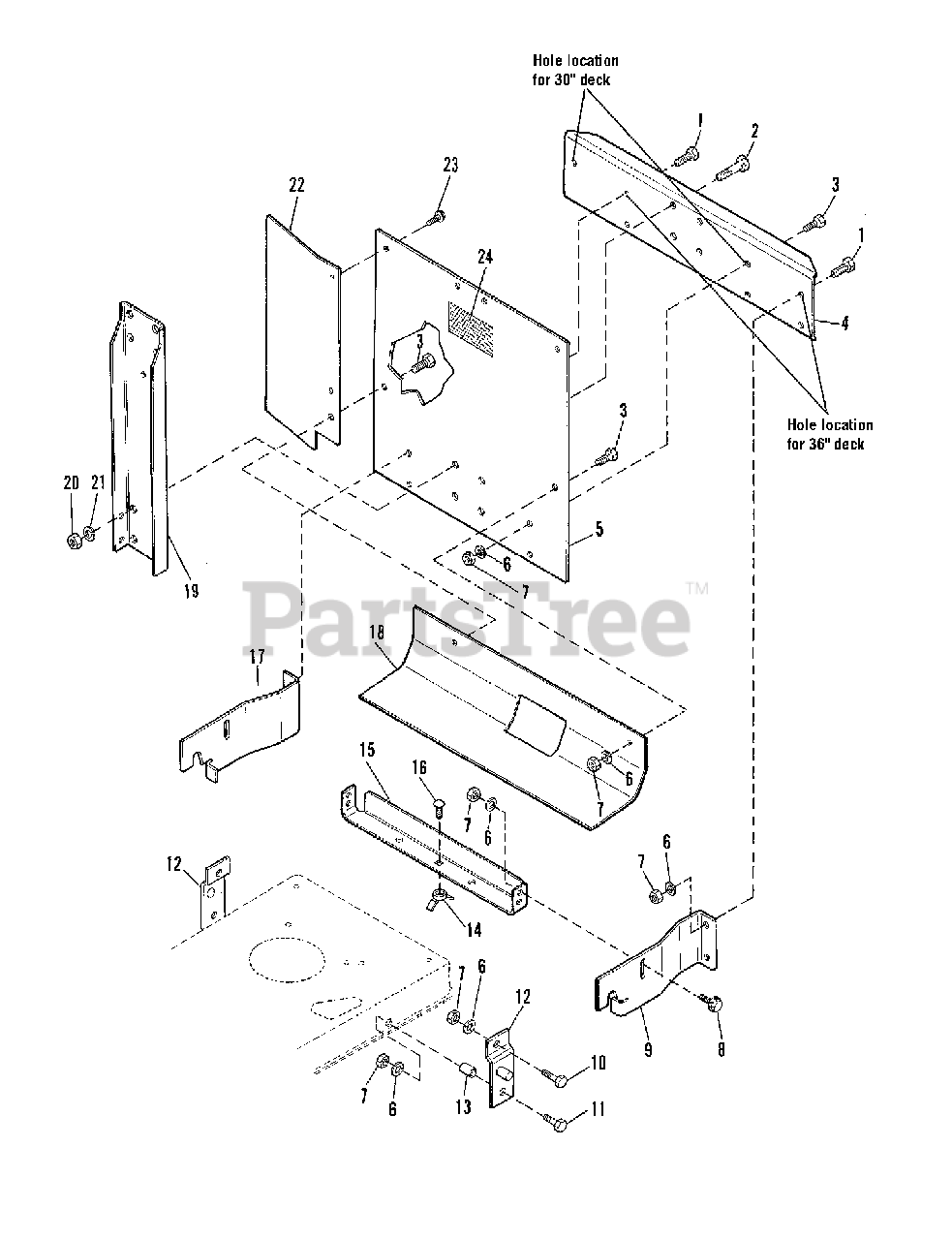

Hitch Group Parts Diagram

  • Title
1

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

2

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

3

Simplicity 1925205SM

CAPSCREW, Hex Head, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

4

Simplicity 1704353

CHANNEL, Cross

$

$

Not available

5

Simplicity 1704354

HEAT DEFLECTOR, Upper

$

$

Not available

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917372SM

NUT, Hex, 5/16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1930591SM

CAPSCREW, Hex, Whiziock, 5/16-18 x 1/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

9

Simplicity 1677475

SUPPORT ASSEMBLY, L.H.

$

$

Not available

10

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

11

Simplicity 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

12

Simplicity 1673075

SUPPORT ASSEMBLY

$

$

Not available

$7.49

$

In Stock, only 1 left!

0

14

Simplicity 2833126

WING NUT, Lock, 5/16-18

$

$

Not available

15

Simplicity 1704318

BRACE, Lower

$

$

Not available

16

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

17

Simplicity 1677476

SUPPORT ASSEMBLY, R.H.

$

$

Not available

18

HEAT DEFLECTOR, Lower

$

$

Not available

19

Simplicity 1703846A

SUPPORT, Upright

$

$

Not available

20

Simplicity 1916950SM

NUT, Hex Head, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

22

HEAT DEFLECTOR, Side

$

$

Not available

23

Simplicity 1928729SM

CAPSCREW, Taptite, 5/16 x 3/8

$4.99

$

In Stock, only 2 left!

0

24

DECAL, Hot Surface

$

$

Not available
