1691766 - Simplicity GTH Garden Tractor, 16hp Transaxle Group Parts Diagram

GTH Garden Tractor, 16hp

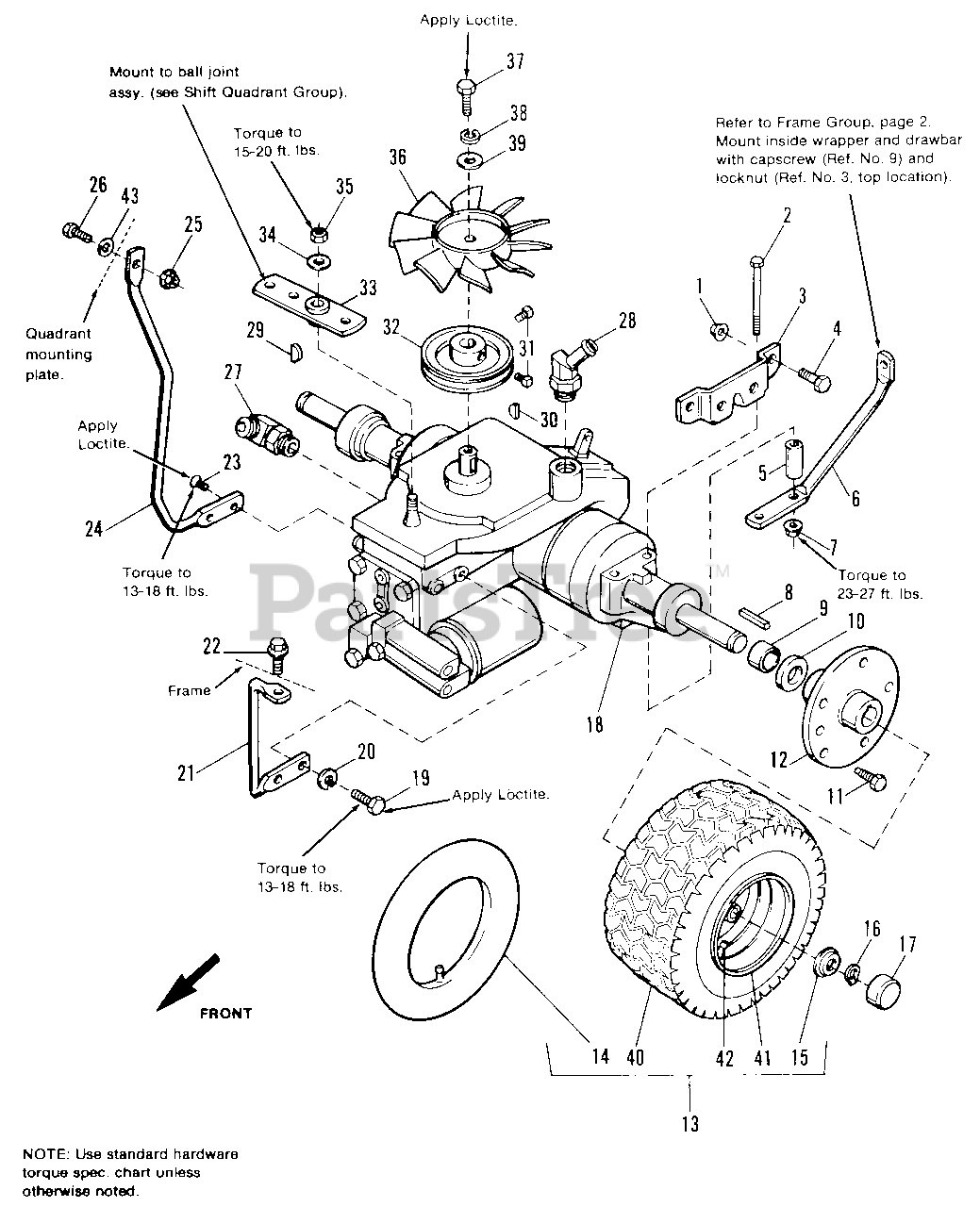

Transaxle Group Parts Diagram

  • Title

1

Simplicity 1928352SM

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

2

Simplicity 1922648SM

CAPSCREW, 3/8-16 x 4
(Superseded to 703875)

$4.99

$

Usually ships in 2-12 days

0

3

Simplicity 1679694

BRACKET, Transaxle Mounting

$

$

Not available

4

Simplicity 1921210SM

CAPSCREW, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

5

Simplicity 1679740

SPACER, 1-1/4

$

$

Not available

6

Simplicity 1702630

BRACE, Transaxle, Rear, L.H.

$

$

Not available

6

Simplicity 1702631

BRACE, Transaxle, Rear, R.H.

$

$

Not available

7

Simplicity 1930645SM

NUT, Hex, Two-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Simplicity 2805100SM

KEY, Straight

$5.49

$

In Stock, only 1 left!

0

9

Simplicity 1701873SM

SPACER, Wheel

$6.49

$

In Stock, Qty 5

0

10

Simplicity 1927241

WASHER

$

$

Not available

11

Simplicity 1729280SM

BOLT, Wheel

$6.49

$

In Stock, only 2 left!

0

12

Simplicity 1700620

HUB ASSY., Rear Wheel (Standard)

$

$

Not available

12

Simplicity 1701914

HUB ASSY., Right Rear Wheel 4" Offset used with Electric Lift Kit

$

$

Not available

13

Simplicity 173432

TIRE & WHEEL ASSY., 23 x 10.50 x 12

$

$

Not available

14

Simplicity 2157638SM

TUBE

$86.99

$

In Stock, only 2 left!

0

15

Simplicity 1676520SM

RETAINER, Hub Cap

$10.99

$

In Stock, Qty 13

0

16

Simplicity 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1676519SM

HUB CAP

$8.49

$

In Stock, Qty 20+

0

18

Simplicity 1701203

TRANSAXLE (See pages 16-21 for breakdown)

$

$

Not available

19

Simplicity 1921332SM

CAPSCREW, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

20

Simplicity 1917356SM

LOCKWASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1679667

TORQUE ARM

$

$

Not available

22

Simplicity 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

23

Simplicity 1960344SM

SCREW, 5/16-18 x 3/4

$3.49

$

Usually ships in 2-12 days

0

24

Simplicity 1702629

BRACE, Transaxle, RH

$

$

Not available

25

Simplicity 1927557SM

NUT, Whiz Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

26

Simplicity 1921333SM

CAPSCREW, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

27

Simplicity 1700446SM

FITTING, Hydro

$26.99

$

Usually ships in 2-12 days

0

28

Simplicity 1671228SM

FITTING, Hydro

$15.99

$

Usually ships in 2-12 days

0

29

Simplicity 2805119SM

KEY, Woodruff (#3)

$3.99

$

Usually ships in 2-12 days

0

30

Simplicity 2830672SM

KEY, Hi-Pro

$5.49

$

Usually ships in 2-12 days

0

31

Simplicity 1960110SM

SET SCREW, 1/4-28 x 1/2

$7.99

$

In Stock, only 2 left!

0

32

Simplicity 1679501ASM

PULLEY

$68.99

$

Usually ships in 2-12 days

0

33

Simplicity 1679737

CONTROL ARM ASSY. (Speed)

$

$

Not available

34

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 1930645SM

NUT, Hex, Center-Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

36

Simplicity 1700021SM

FAN, 10-Blade (C.C.W.)

$

$

Not available

37

Simplicity 1923341SM

CAPSCREW, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

38

Simplicity 1916964SM

LOCKWASHER
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

39

Simplicity 1960151SM

WASHER
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

40

Simplicity 1709969SM

TIRE, 23 x 10.50-12
(Superseded to 1722830SM)

$242.99

$

Usually ships in 2-12 days

0

41

Simplicity 2173430

WHEEL

$

$

Not available

42

Simplicity 2172353SM

VALVE STEM
(Superseded to 024373MA)

$

$

Not available

43

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 6

0
