1691765 - Simplicity Rear Lift Kit Lift Group - Rear Parts Diagram

Rear Lift Kit

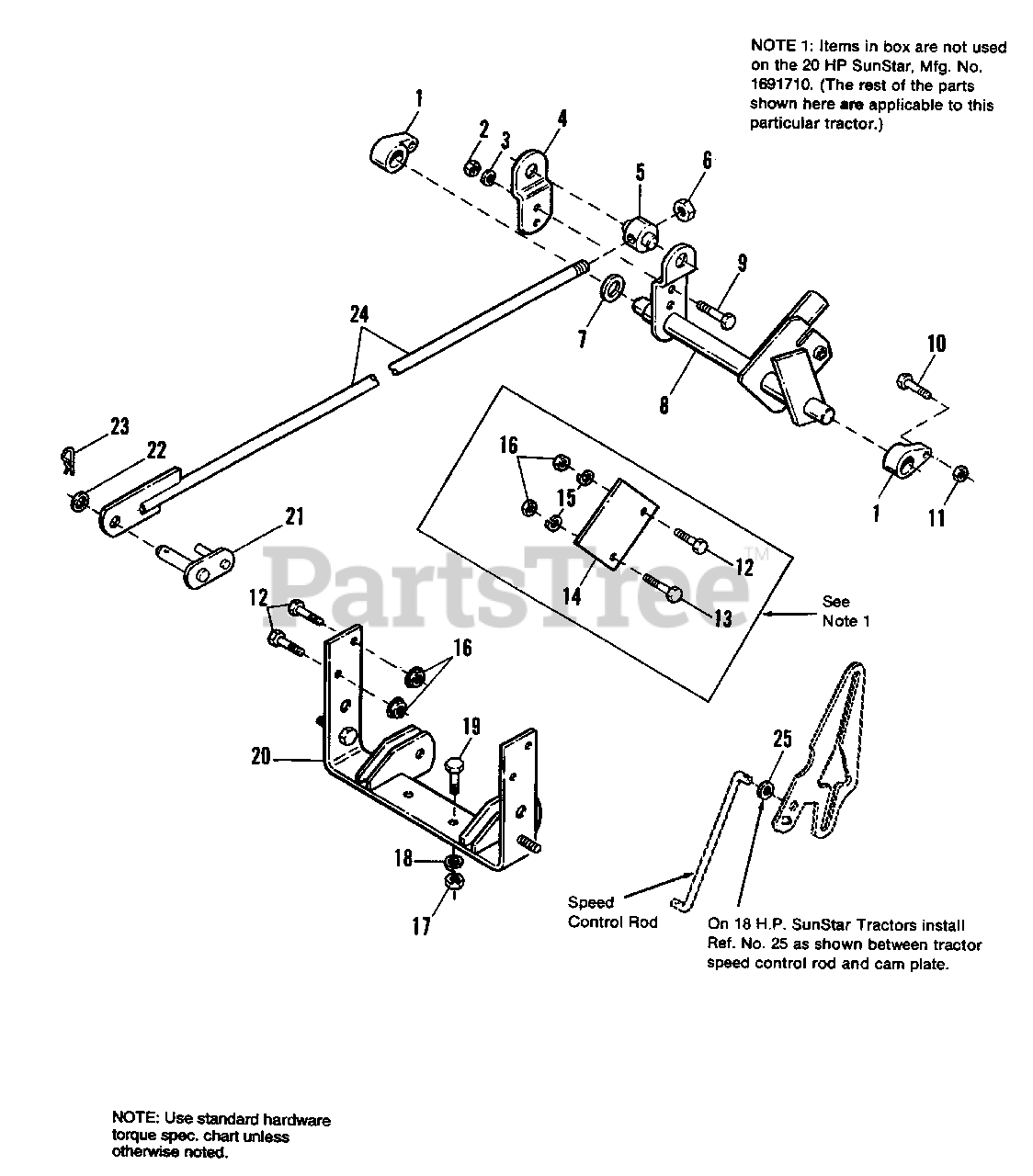

Lift Group - Rear Parts Diagram

  • Title

1

Simplicity 1670728SM

BEARING

$12.99

$

Usually ships in 2-12 days

0

2

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

4

Simplicity 1676441SM

ARM, Lift

Note: (Bolt on)

$

$

Not available

5

Simplicity 1726792SM

TRUNNION

$32.99

$

Usually ships in 2-12 days

0

6

Simplicity 1922134SM

NUT, Hex, Lock, 1/2-13
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

7

Simplicity 2173668SM

WASHER, Plain, 1 x 1-3/8 x 1/16

$9.49

$

In Stock, only 2 left!

0

8

Simplicity 1678995SM

SHAFT ASSY., Lift
(Superseded to 1678995ASM)

$176.99

$

Usually ships in 2-12 days

0

9

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

10

Simplicity 1921977SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 17

0

11

Simplicity 1923362SM

NUT, Hex, Centerlock 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

12

Simplicity 2823471SM

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4
(Superseded to 703579)

Note: (Qty. 4 on 1691765). Items 12 (Qty. 1), 13, 14, 15 & 16 (Qty. 2) are not used on SunStar tractor 1691710.

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1923451SM

CAPSCREW, Hex Hd., 7/16-14 x 1-1/2

Note: Items 12 (Qty. 1), 13, 14, 15 & 16 (Qty. 2) are not used on SunStar tractor 1691710.

$

$

Not available

14

Simplicity 1677006SM

PLATE, End

Note: Items 12 (Qty. 1), 13, 14, 15 & 16 (Qty. 2) are not used on SunStar tractor 1691710.

$

$

Not available

15

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

Note: Items 12 (Qty. 1), 13, 14, 15 & 16 (Qty. 2) are not used on SunStar tractor 1691710.

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1935041SM

NUT, Hex, Flange Whizlock, 7/16-14

Note: Items 12 (Qty. 1), 13, 14, 15 & 16 (Qty. 2) are not used on SunStar tractor 1691710.

$1.99

$

Usually ships in 2-12 days

0

17

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

18

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

19

Simplicity 1920328SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 1679731SM

BRACKET ASSY., Hitch

$90.99

$

Usually ships in 2-12 days

0

21

Simplicity 1674529SM

CYLINDER PIN ASSY.
(Superseded to 1674529ASM)

$67.99

$

Usually ships in 2-12 days

0

22

Simplicity 1960020SM

WASHER, Plain, 41/64 x 1-1/4 x 1/16

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1960033SM

CLIP, Hair Pin, 1/8 x 2-9/16

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 1703840SM

ROD ASSY., Lift

$

$

Not available

25

Simplicity 2157424SM

WASHER, Special

Note: (Use on 18 HP Only)

$7.49

$

In Stock, Qty 5

0
