1691735 - Simplicity 38" Tiller Attachment 38" Tiller - Durst Gear Box Parts Diagram

38" Tiller Attachment

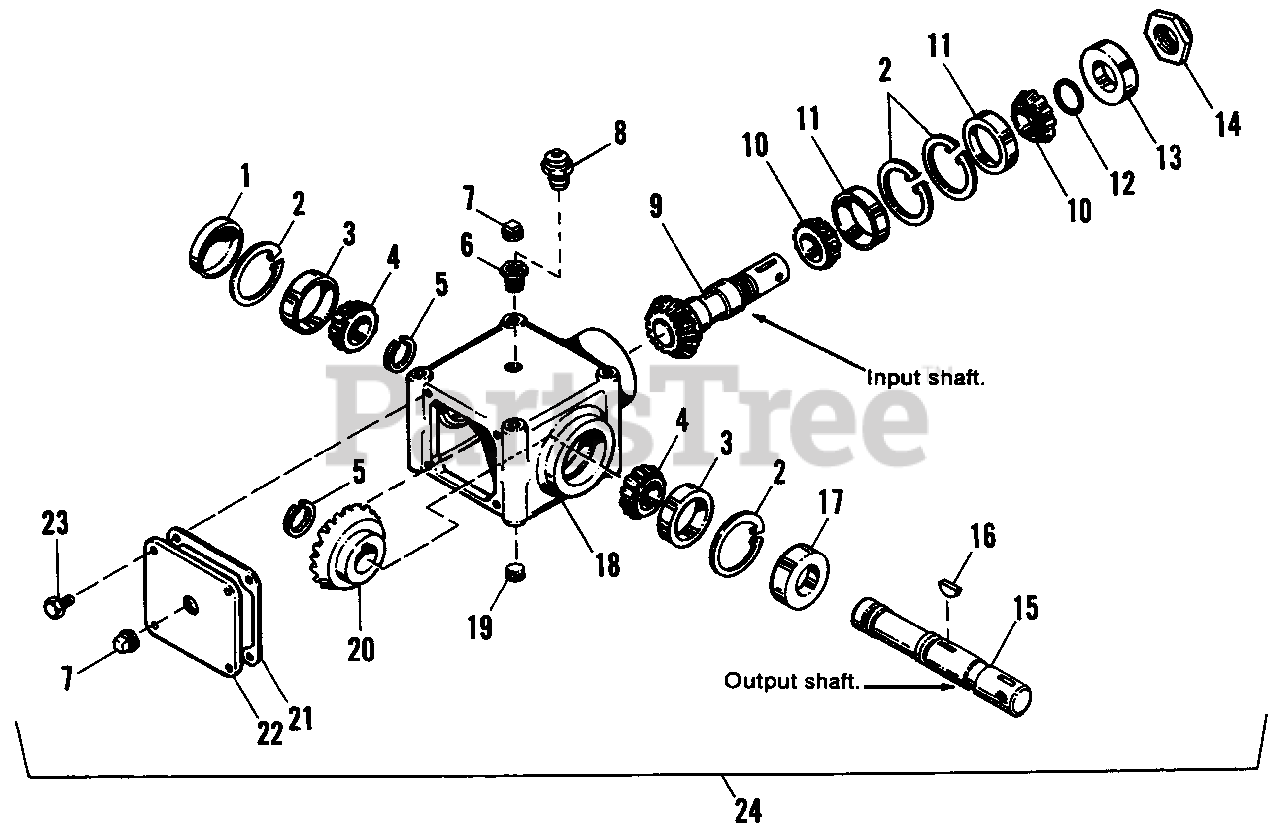

38" Tiller - Durst Gear Box Parts Diagram

  • Title

1

Simplicity 2173593SM

CAP

$54.99

$

Usually ships in 2-12 days

0

2

Simplicity 927700

SNAP RING

$

$

Not available

3

Simplicity 2170836SM

BEARING, Cup
(Superseded to 5020883SM)

$9.49

$

In Stock, only 3 left!

0

4

Simplicity 2170835SM

BEARING, Cone

$

$

Not available

5

Simplicity 2827320SM

SNAP RING, Output

$8.49

$

Usually ships in 2-12 days

0

6

Simplicity 1678933SM

REDUCTION BUSHING, 1/8-3/8

$5.49

$

Usually ships in 2-12 days

0

7

Simplicity 1668971SM

PLUG, 1/8-27, N.P.T.F.

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 1678690SM

PLUG, Vent, 1/8 x 27 N.P.T.

$13.99

$

Usually ships in 2-12 days

0

9

Simplicity 1679687SM

GEAR W/SHAFT, Pinion-16T

$524.99

$

Usually ships in 2-12 days

0

10

Simplicity 1679696SM

BEARING, Cone

$

$

Not available

11

Simplicity 1679695SM

BEARING, Cup

$19.99

$

Usually ships in 2-12 days

0

12

Simplicity 1679692SM

"O" RING

$

$

Not available

13

Simplicity 1679690SM

SEAL, Input

$40.99

$

Usually ships in 2-12 days

0

14

Simplicity 1679688

NUT, Stake, Input, 1-1/8-18

$

$

Not available

15

Simplicity 1679689SM

SHAFT, Output

$478.99

$

Usually ships in 2-12 days

0

16

Simplicity 2822138SM

KEY, Woodruff

$9.99

$

In Stock, only 2 left!

0

17

Simplicity 1679691SM

SEAL, Output

$12.99

$

Usually ships in 2-12 days

0

18

Simplicity 2173586SM

HOUSING

$512.99

$

Usually ships in 2-12 days

0

19

Simplicity 930674

PLUG, Drain, 3/8-18 N.P.T.F.

$

$

Not available

20

Simplicity 1679686SM

GEAR, Bevel-32T

$410.99

$

Usually ships in 2-12 days

0

21

Simplicity 2173596SM

GASKET, Cover

$12.99

$

Usually ships in 2-12 days

0

22

Simplicity 1717069SM

COVER

$797.99

$

Usually ships in 2-12 days

0

23

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

24

Simplicity 1679681A

DRIVE ASSY., Right Angle

$

$

Not available
