1691735 - Simplicity 38" Tiller Attachment 38" Tiller - Clutch & Drive Group Parts Diagram

38" Tiller Attachment

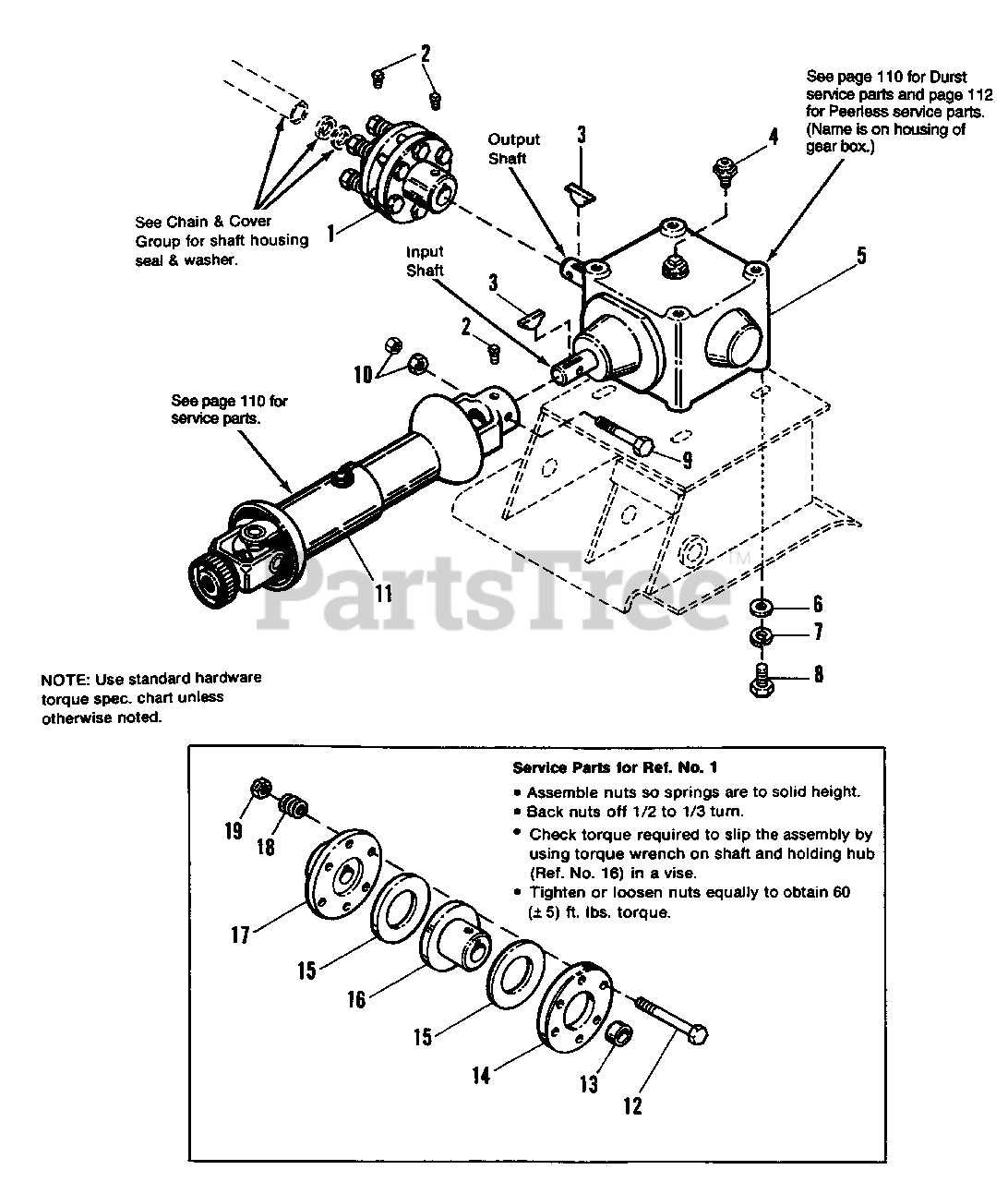

38" Tiller - Clutch & Drive Group Parts Diagram

  • Title

1

Simplicity 1679678A

TORQUE LIMITER ASSY.

Note: (Incl. Ref. Nos. 12-19)

$

$

Not available

2

Simplicity 1674333SM

SETSCREW, 5/16-18 x 3/4

$5.99

$

Usually ships in 2-12 days

0

3

Simplicity 2822138SM

KEY, Hi-Pro, 1/4 x 7/8

$9.99

$

In Stock, only 2 left!

0

4

Simplicity 1678690SM

PLUG, Vent, 1/8-27 NPT

$13.99

$

Usually ships in 2-12 days

0

5

Simplicity 1679681A

DRIVE ASSY., Right Angle

Note: See "38" Tiller- Durst Gear Box & Peerless Gear Box" illustration and part list for Service Parts.

$

$

Not available

6

Simplicity 1924940SM

WASHER, Flat, 3/8 Std.
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1916965SM

WASHER, Lock, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

8

Simplicity 1921965SM

CAPSCREW, Hex Hd., 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 1925688SM

CAPSCREW, Hex Hd., 1/4-20 x 3
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 1923358SM

NUT, Hexlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 1717484SM

DRIVESHAFT ASSY.

Note: (1690989 only). See "38" Tiller- Drive Shaft" illustration and part list. (1690989 only)

$638.99

$

Usually ships in 2-12 days

0

11

Simplicity 1703938SM

DRIVESHAFT ASSY.

Note: (1691735 only). See "38" Tiller- Drive Shaft" illustration and part list. (1691735 only)

$

$

Not available

12

Simplicity 1923141SM

CAPSCREW, Hex Hd., 5/16-18 x 2-3/4
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

13

Simplicity 1678851SM

BUSHING

$131.99

$

Usually ships in 2-12 days

0

14

Simplicity 2173327SM

PLATE, Clutch

$59.99

$

Usually ships in 2-12 days

0

15

Simplicity 2173329SM

DISC, Clutch

$14.99

$

Usually ships in 2-12 days

0

16

Simplicity 1679679SM

HUB ASSY.

Note: (Incl. Ref. No. 13)

$222.99

$

Usually ships in 2-12 days

0

17

Simplicity 1679680SM

HUB, Clutch

$74.99

$

Usually ships in 2-12 days

0

18

Simplicity 2173575SM

SPRING

$13.99

$

Usually ships in 2-12 days

0

19

Simplicity 1923362SM

NUT, Hex, Centerlock 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0
