1691710 - Simplicity SunStar Garden Tractor, 20hp Steering Group - Power Parts Diagram

SunStar Garden Tractor, 20hp

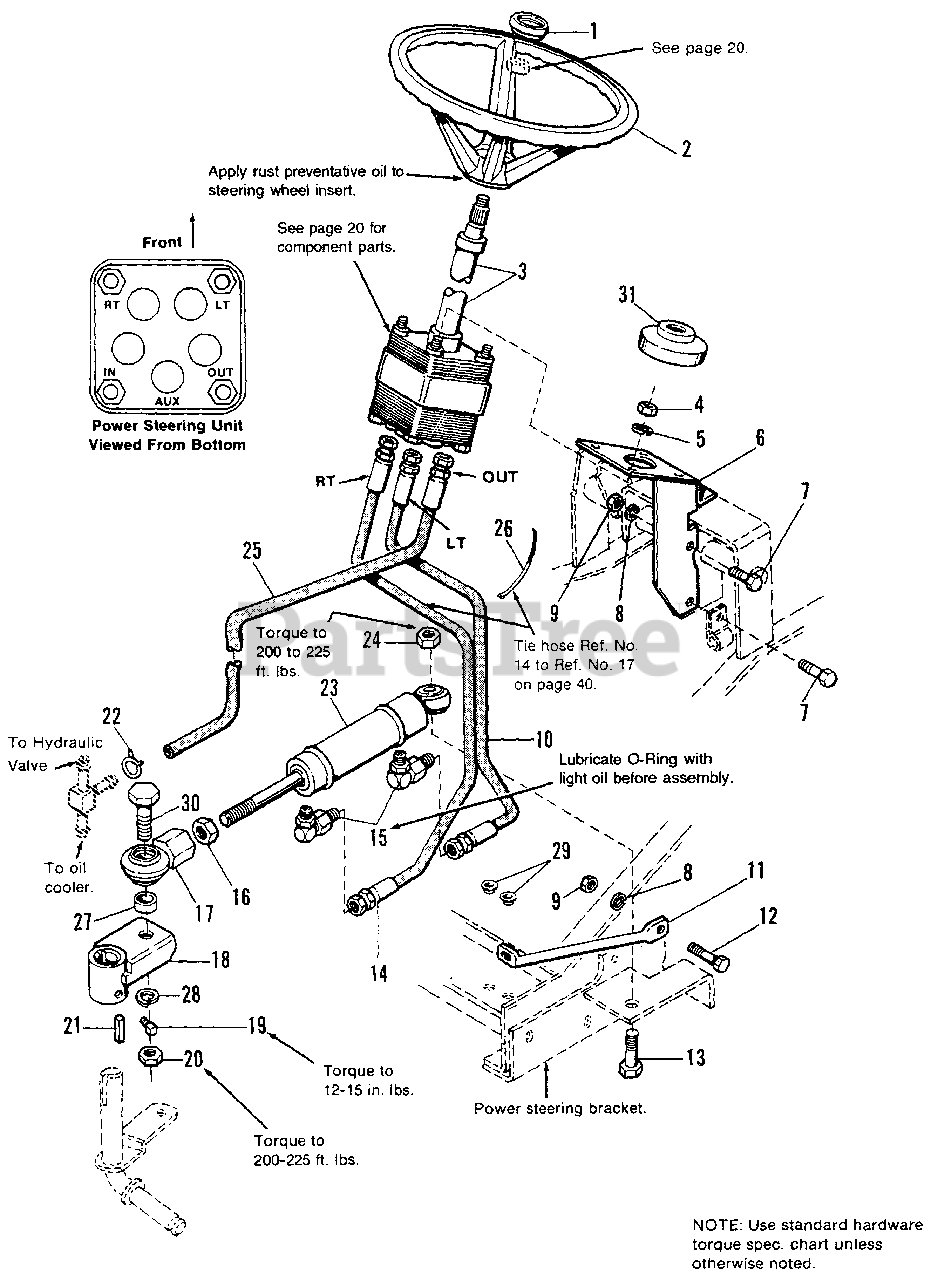

Steering Group - Power Parts Diagram

  • Title

1

Simplicity 1657017SM

CAP, Steering Wheel

$

$

Not available

2

Simplicity 1676468SM

WHEEL ASSY., Steering

$

$

Not available

3

Simplicity 1673686SM

STEERING UNIT, Hydrostatic (See page 20 for components.)

$928.99

$

Usually ships in 2-12 days

0

4

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 1917356SM

LOCKWASHER, 6/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1674742SM

SUPPORT ASSY., Steering Valve

$25.99

$

Usually ships in 2-12 days

0

7

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1, Gr. 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

8

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

9

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1611788SM

HOSE ASSY., Hyd. (Valve to Cyl.)

$52.99

$

Usually ships in 2-12 days

0

11

Simplicity 1677159

BRACE, Cylinder

$

$

Not available

12

Simplicity 1921969SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2, Gr. 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

13

Simplicity 1923881

CAPSCREW, Hex Hd., 5/8-11 x 2, Gr. 8

$

$

Not available

14

Simplicity 1611787SM

HOSE ASSY., Hyd. (Valve to Cyl.)

$

$

Not available

15

Simplicity 2822523SM

FITTING, Hyd., 9/16-18 x 9/16-18 - 90

$14.99

$

Usually ships in 2-12 days

0

16

Simplicity 1922015SM

NUT, Hex, 3/4-16

$3.49

$

In Stock, Qty 10

0

17

Simplicity 1685323SM

BALL JOINT ASSY. (Inc. Ref. Nos. 20, 27, 28 & 30)

$152.99

$

Usually ships in 2-12 days

0

18

Simplicity 1679485ASM

ARM ASSY., Steering

$102.99

$

Usually ships in 2-12 days

0

19

Simplicity 1928721SM

SETSCREW, Sq. Hd., 5/16-18 x 1/2

$4.99

$

In Stock, only 2 left!

0

20

Simplicity 1960270SM

NUT, Hex, Lock, 3/4-16

$4.49

$

In Stock, only 3 left!

0

21

Simplicity 2805856SM

KEY, Parallel, 1/4 x 1/4 x 1-1/2

$3.49

$

In Stock, only 2 left!

0

22

Simplicity 2833098SM

HOSE CLAMP, SAE #10

$3.49

$

In Stock, Qty 8

0

23

Simplicity 1686926SM

CYLINDER, Power Steering

$1225.99

$

Usually ships in 2-12 days

0

24

Simplicity 1923353SM

LOCKNUT, Hex, 5/8-11

$2.49

$

Usually ships in 2-12 days

0

25

Simplicity 1675602SM

HOSE ASSY., Hyd., (Valve to Cooler)

$17.99

$

Usually ships in 2-12 days

0

26

Simplicity 1701011SM

TIE, Self-Locking

$5.49

$

In Stock, only 2 left!

0

27

Simplicity 1679556SM

SPACER
(Superseded to 703154)

$23.99

$

In Stock, only 2 left!

0

28

Simplicity 1919332SM

LOCKWASHER 3/4

$3.49

$

Usually ships in 2-12 days

0

29

Simplicity 917954

PLUG, Plastic

$

$

Not available

30

Simplicity 1960317SM

CAPSCREW, Hex Hd., 3/4-16 x 2-3/4, Gr. 5

$12.99

$

Usually ships in 2-12 days

0

31

Simplicity 1676418SM

BOOT, Steering Arm

$6.99

$

In Stock, only 1 left!

0
