1691710 - Simplicity SunStar Garden Tractor, 20hp Main Wiring Harness Group - All Mfg Nos. Except 1691017 & 1691018 Parts Diagram

SunStar Garden Tractor, 20hp

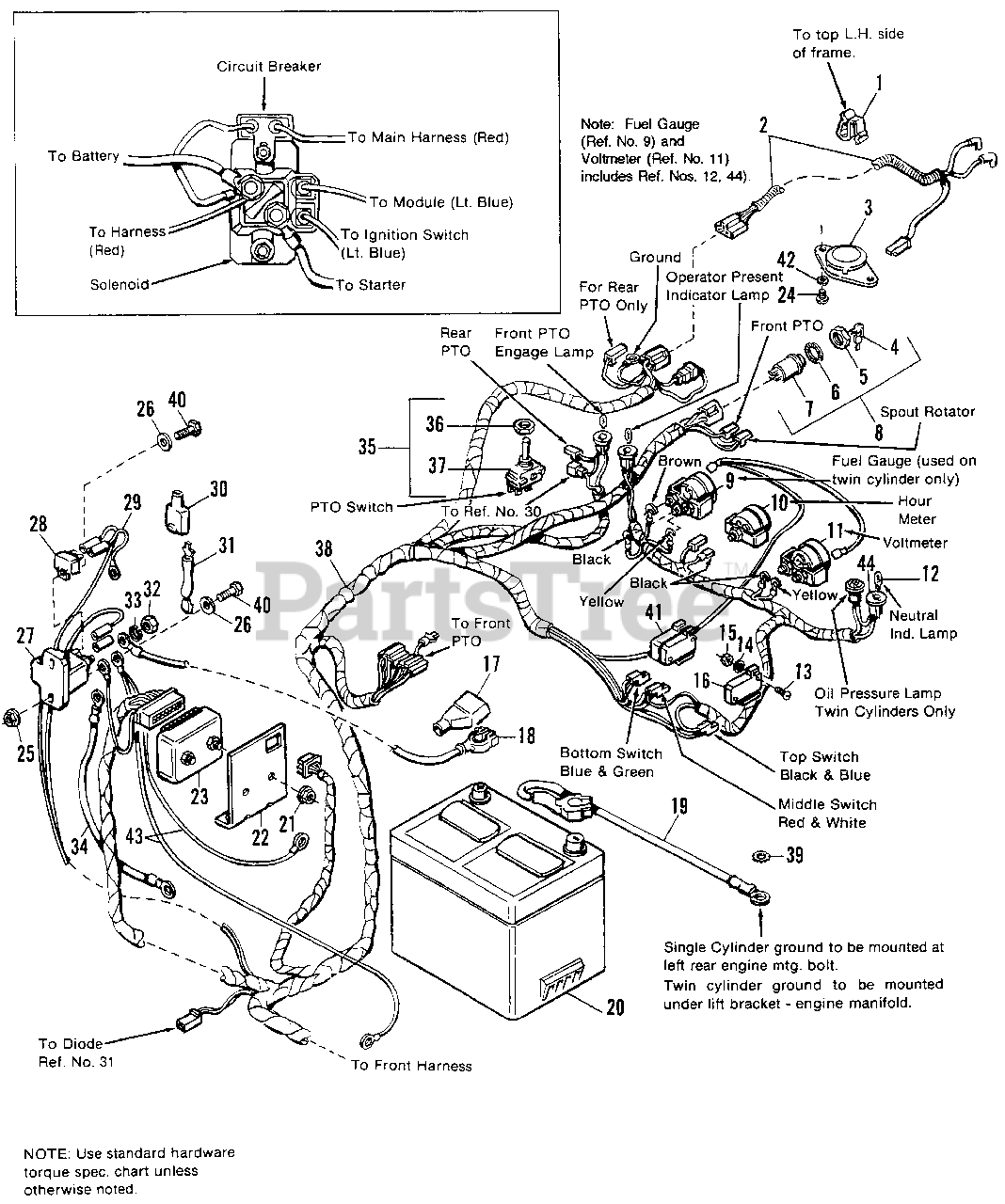

Main Wiring Harness Group - All Mfg Nos. Except 1691017 & 1691018 Parts Diagram

  • Title

1

Simplicity 2172434SM

CLIP, Tinnerrnan

$4.99

$

Usually ships in 2-12 days

0

2

Simplicity 1700994

HARNESS, Rear

$

$

Not available

3

Simplicity 1700636SM

SAFETY SWITCH (Seat), Operator Present

Note: Used on 1691250 before serial no. 1204,Used on 1691357 before serial no. 1512,Used on 1691380 before serial no. 1137,Used on 1691381 before serial no. 2020,Used on 1691528 before serial no. 1457

$33.99

$

Usually ships in 2-12 days

0

3

Simplicity 1703373SM

* SAFETY SWITCH (Seat), Operator Present
(Superseded to 1700636SM)

$33.99

$

Usually ships in 2-12 days

0

4

Simplicity 1717163SM

KEY, Set

$8.99

$

In Stock, Qty 20+

0

5

Simplicity 2122234SM

NUT, Special
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

6

Simplicity 1960547SM

LOCKWASHER

$4.49

$

In Stock, only 4 left!

0

7

SWITCH, Ignition (See Ref. No. 8)

$

$

Not available

8

Simplicity 1701256SM

SWITCH 8 KEY ASSY., Ignition (Incl. Ref. Nos. 4 thru 7)

$

$

Not available

9

Simplicity 1674369SM

GAUGE, Fuel (Twin cylinder Models Only)

$76.99

$

Usually ships in 2-12 days

0

10

Simplicity 1701525SM

HOUR METER

$

$

Not available

11

Simplicity 1676132SM

VOLTMETER

$119.99

$

Usually ships in 2-12 days

0

12

Simplicity 1676130SM

LAMP (Qty. 3 used on Single Cylinder Models)

$

$

Not available

13

Simplicity 1960014SM

SCREW, R.H., #5-24 x 1-1/2

$2.99

$

In Stock, only 2 left!

0

14

Simplicity 1930947SM

LOCKWASHER, #5

$3.49

$

In Stock, only 1 left!

0

15

Simplicity 1931003SM

NUT, Hex, #5-40

$2.99

$

In Stock, only 1 left!

0

16

Simplicity 1676123SM

SWITCH, Interlock (Under Dash) Shift Lever

$23.99

$

In Stock, only 1 left!

0

17

Simplicity 1713534SM

PROTECTOR, Battery (Red)

$5.99

$

Usually ships in 2-12 days

0

18

Simplicity 1678993SM

CABLE (Battery to Solenoid)

$18.99

$

Usually ships in 2-12 days

0

19

Simplicity 1714647SM

CABLE (Battery to Ground)

$

$

Not available

20

Simplicity 1685289SM

BATTERY (491 AMP Cold Crank Rating)

$

$

Not available

21

Simplicity 1960222SM

NUT, w/Washer, #8-32

$3.49

$

Usually ships in 2-12 days

0

22

Simplicity 1677479

BRACKET, Interlock, Mod.

$

$

Not available

23

Simplicity 1714715SM

INTERLOCK MODULE

$341.99

$

Usually ships in 2-12 days

0

24

Simplicity 1926025SM

SCREW, Rnd. Hd., 1/4-20 x 1/2

Note: Used on 1691250 before serial no. 1204,Used on 1691357 before serial no. 1512,Used on 1691380 before serial no. 1137,Used on 1691381 before serial no. 2020,Used on 1691528 before serial no. 1457

$3.49

$

Usually ships in 2-12 days

0

24

Simplicity 1960357

* SCREW, Rnd. Hd., 1/4-20 x 3/4

$

$

Not available

25

Simplicity 1930641SM

NUT, Hex, Flange, Whizlock 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1921319SM

WASHER, Plain, 1/4 (Qty. 2 on 1691250, 1691357 only)
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 1686981SM

SOLENOID (12 Volt DC)
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

28

Simplicity 1665238SM

BREAKER, Circuit

$14.99

$

In Stock, Qty 20+

0

29

Simplicity 1665237SM

WIRE ASSY. (Circuit Breaker to Solenoid)

$11.99

$

In Stock, Qty 7

0

30

Simplicity 122182

CONNECTOR, 3 Way

$

$

Not available

31

Simplicity 1677484SM

WIRE ASSY., Diode

$

$

Not available

32

Simplicity 2820438SM

NUT, Hex, Jam, 5/16-24 Pltd.

$3.49

$

In Stock, only 2 left!

0

33

Simplicity 1917356SM

LOCKWASHER, 5/16, Pltd.
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 1701330

CABLE, (Solenoid to Starter)

$

$

Not available

35

Simplicity 1675800SM

SWITCH ASSY., PTO (incl. Ref. Nos. 36 & 37)

$64.99

$

Usually ships in 2-12 days

0

36

Simplicity 1677663

NUT, Special

$

$

Not available

37

SWITCH, PTO (See Ref. No. 35)

$

$

Not available

38

Simplicity 1679878

WIRING HARNESS (Main)

$

$

Not available

39

Simplicity 2820427SM

LOCKWASHER, Ext., 3/8 Pltd. (Used on 1691250, 1691357 only)
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

39

Simplicity 2820426SM

LOCKWASHER, Ext., 5/16 Pltd. (Used on 1691380, 1691381, 1691528, 1691710, 1691924, 1691926, 1691928, 1691953)

$4.49

$

In Stock, only 1 left!

0

40

Simplicity 1923341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

41

Simplicity 1700160SM

DUAL INTERLOCK SWITCH
(Superseded to 1687330SM)

$

$

Not available

42

Simplicity 1921880SM

LOCKWASHER, Ext. 1/4

$3.49

$

Usually ships in 2-12 days

0

43

Simplicity 1678974

WIRE ASSY., Harness to Engine Ground (Not used on Mfg. Nos. 1691924, 1691926, 1691928, & 1691953)

$

$

Not available

44

Simplicity 1707389SM

BULB HOLDER

$8.99

$

Usually ships in 2-12 days

0
