1691683 - Simplicity 36" Mower Deck 36" Mower Deck & Arbor Group Parts Diagram

36" Mower Deck

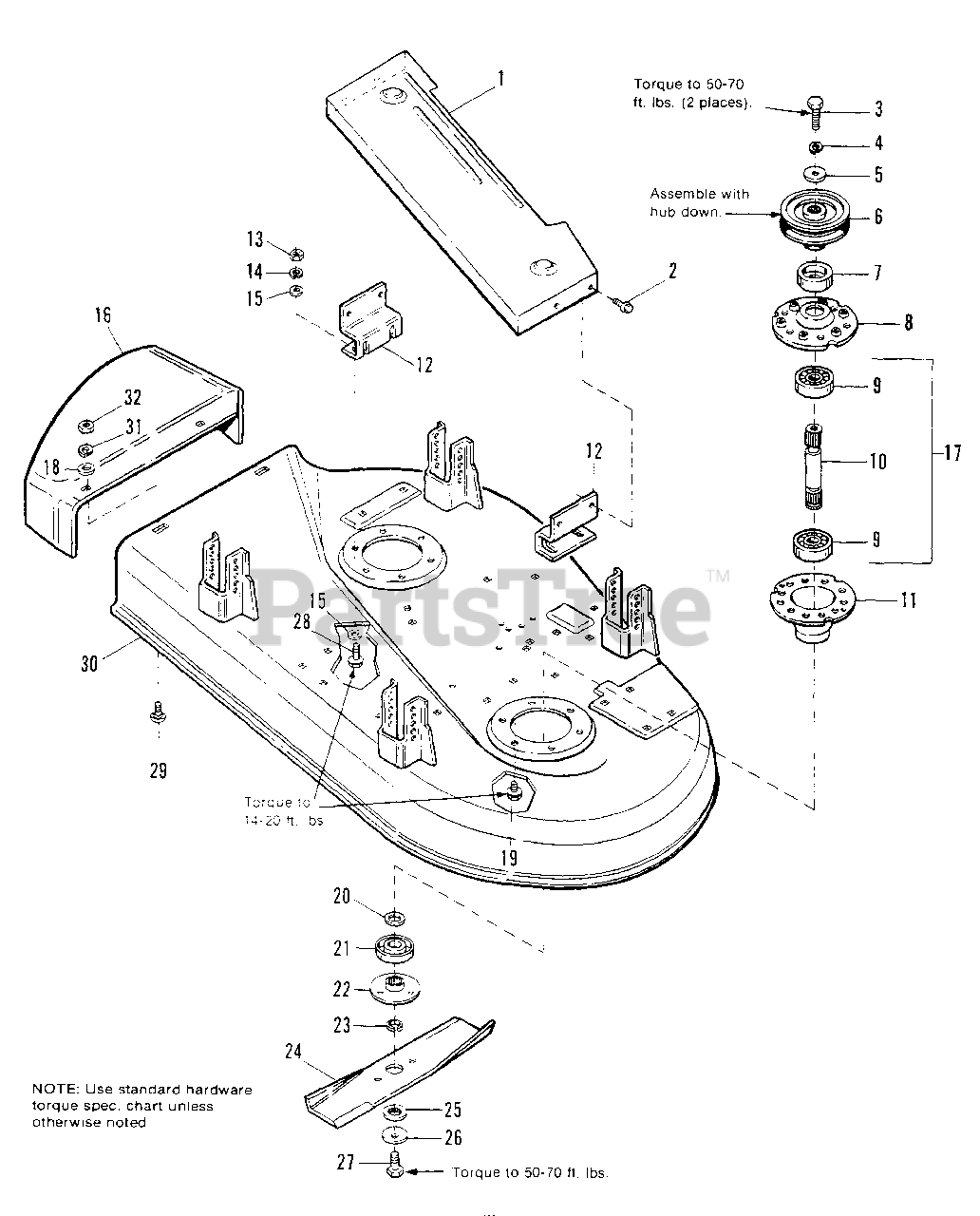

36" Mower Deck & Arbor Group Parts Diagram

  • Title

1

Simplicity 1700398

COVER, Belt

$

$

Not available

2

Simplicity 1929000SM

SCREW, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

3

Simplicity 1936723SM

CAPSCREW, Hex, 7/16-14 x 1-3/4

$

$

Not available

4

Simplicity 1918199SM

LOCKWASHER
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 1933263SM

WASHER
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

6

Simplicity 1700271SM

PULLEY ASSY., Arbor

$49.99

$

Usually ships in 2-12 days

0

7

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

8

Simplicity 1655729ASM

HOUSING, Top

$14.99

$

Usually ships in 2-12 days

0

9

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

10

Simplicity 1685245SM

SHAFT (Incl. Ref. No. 23)

$74.99

$

In Stock, Qty 6

0

11

Simplicity 1655728A

HOUSING, Bottom

$

$

Not available

12

Simplicity 1700399

BRACKET, Belt Cover

$

$

Not available

13

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

16

Simplicity 1702190A

DEFLECTOR
(Superseded to 1702190ASM)

$112.99

$

Usually ships in 2-12 days

0

17

Simplicity 1685251SM

SHAFT & BEARING ASSY. (Incl. Ref. Nos. 9, 10 & 23)

$99.99

$

In Stock, Qty 13

0

18

Simplicity 1922755SM

WASHER, Plain, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

19

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1700230SM

WASHER

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 1700229SM

SHIELD, Lower Grass

$10.99

$

In Stock, Qty 20+

0

22

Simplicity 1655777SM

ADAPTOR, Blade

$25.99

$

In Stock, Qty 20+

0

23

Simplicity 1672132SM

COLLAR, Mower Arbor

$12.99

$

In Stock, only 3 left!

0

24

Simplicity 1657589ASM

BLADE

$25.99

$

In Stock, Qty 5

0

25

Simplicity 1656927SM

WASHER, Spline

$8.99

$

In Stock, Qty 17

0

26

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

27

Simplicity 2823471SM

CAPSCREW, Hex, 7/16-14 x 1
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1960373SM

SCREW, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 1931348SM

CARRIAGE BOLT, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1685320SM

HOUSING ASSY., 36" Mower (Incl. Decals)

$

$

Not available

31

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

32

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0
