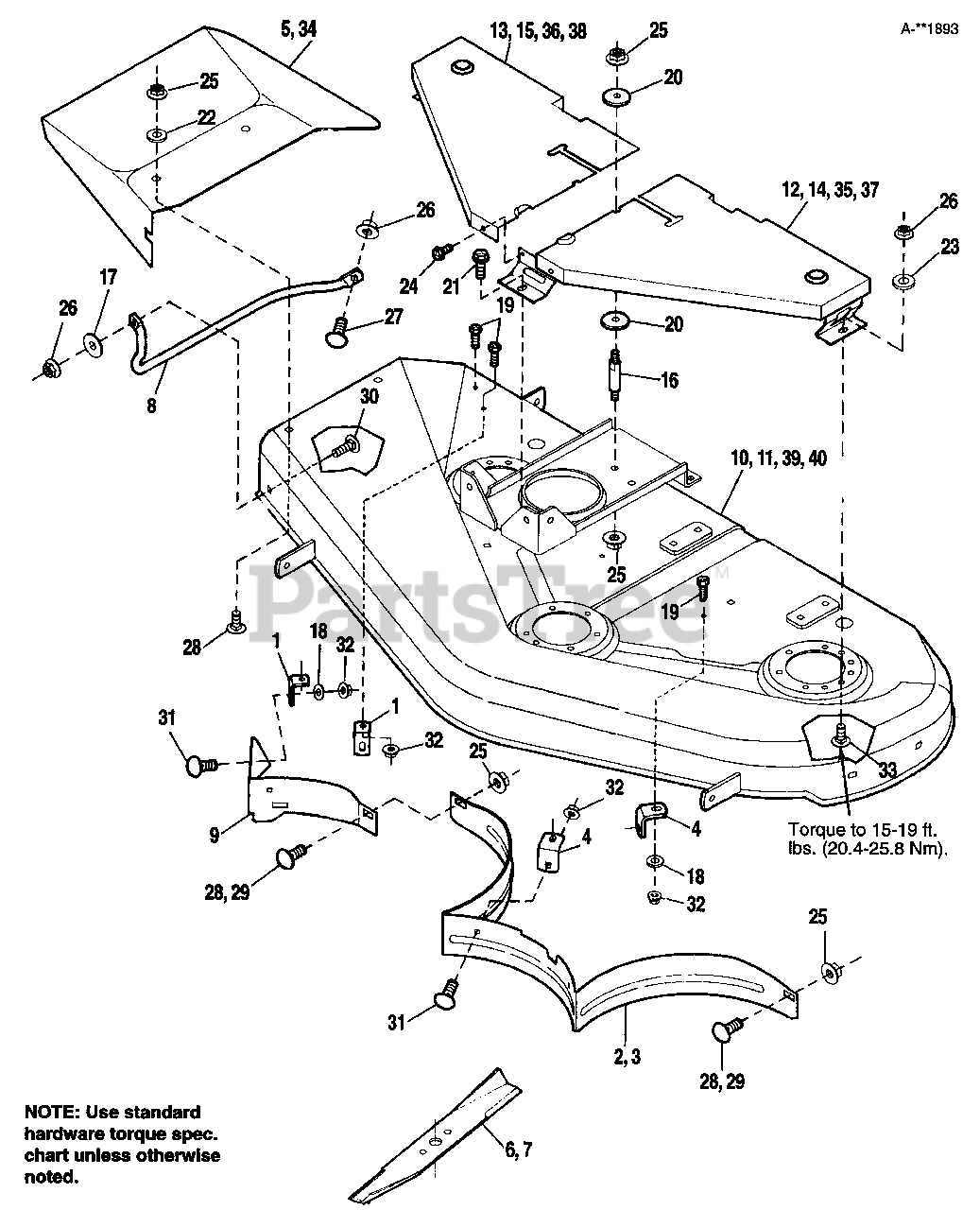

1691671 - Simplicity 48" Rear-Engine Riding Mower, 16hp 42" & 48" Mower - Housing & Cover Parts Diagram

48" Rear-Engine Riding Mower, 16hp

42" & 48" Mower - Housing & Cover Parts Diagram

  • Title

1

Simplicity 2108186SM

CLIP, Baffle

$12.99

$

In Stock, only 1 left!

0

2

Simplicity 1608135SM

BAFFLE, 42"
(Superseded to 1608135ASM)

$98.99

$

Usually ships in 2-12 days

0

3

Simplicity 1608327ASM

BAFFLE, 48"

$195.99

$

Usually ships in 2-12 days

0

4

Simplicity 1608331SM

CLIP, Baffle
(Superseded to 1608331ASM)

$10.99

$

Usually ships in 2-12 days

0

5

Simplicity 1656049ASM

DEFLECTOR, Orange

$

$

Not available

6

Simplicity 1656146ASM

BLADE, 48"

$27.99

$

In Stock, only 3 left!

0

7

Simplicity 1656147ASM

BLADE, 42"

$21.99

$

In Stock, only 3 left!

0

8

Simplicity 1665562SM

GUARD, Mower Discharge
(Superseded to 1665562ASM)

$155.99

$

Usually ships in 2-12 days

0

9

Simplicity 1665709ASM

BAFFLE, Discharge

$51.99

$

Usually ships in 2-12 days

0

10

Simplicity 1685397SM

HOUSING ASSY., 42", Orange

$

$

Not available

11

Simplicity 1687130SM

HOUSING ASSY., 48", Orange

$

$

Not available

12

Simplicity 1702191A

COVER ASSY., Belt, LH, 48", Orange

$

$

Not available

13

Simplicity 1702192A

COVER ASSY., Belt, RH, 48", Orange
(Superseded to 1702192ASM)

$35.99

$

Usually ships in 2-12 days

0

14

Simplicity 1703127SM

COVER ASSY., Belt, LH, 42", Orange

$

$

Not available

15

Simplicity 1703159SM

COVER ASSY., Belt, RH, 42", Orange

$47.99

$

Usually ships in 2-12 days

0

16

Simplicity 1703391SM

STUD, Double Hex

$

$

Not available

17

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1921959SM

CAPSCREW, Hex, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 10

0

20

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

21

Simplicity 1924856SM

SCREW, Taptite, 5/16 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

22

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 1925125SM

WASHER, 3/8

$6.49

$

In Stock, only 2 left!

0

24

Simplicity 1929000SM

SCREW, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

25

Simplicity 1931211SM

NUT, Hex, Whizlock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

26

Simplicity 1931277SM

NUT, Hex, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

27

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

28

Simplicity 1931348SM

CARRIAGE BOLT, 3/8-16 x 3/4 (Qty. 2 on 48")
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1, (48" deck only)
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

30

Simplicity 1960223SM

CARRIAGE BOLT, 5/16 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

31

Simplicity 1960252SM

CARRIAGE BOLT, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

32

Simplicity 1960294SM

NUT, Hex, Whizlock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

33

Simplicity 1960373SM

SCREW, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

34

Simplicity 1656049ASM

DEFLECTOR, Black

$

$

Not available

35

Simplicity 1702191A

COVER ASSY., Belt, LH 48", Black

$

$

Not available

36

Simplicity 1702192A

COVER ASSY., Belt, RH, 48", Black
(Superseded to 1702192ASM)

$35.99

$

Usually ships in 2-12 days

0

37

Simplicity 1729555SM

COVER ASSY., Belt, LH 42", Black

$

$

Not available

38

Simplicity 1729556SM

COVER ASSY., Belt, RH, 42", Black

$

$

Not available

39

Simplicity 1687129

HOUSING ASSY., 42", Black

$

$

Not available

40

Simplicity 1687130SM

HOUSING ASSY., 48", Black

$

$

Not available
