1691668 - Simplicity 42" Rear-Engine Riding Mower, 12hp Steering Group Parts Diagram

42" Rear-Engine Riding Mower, 12hp

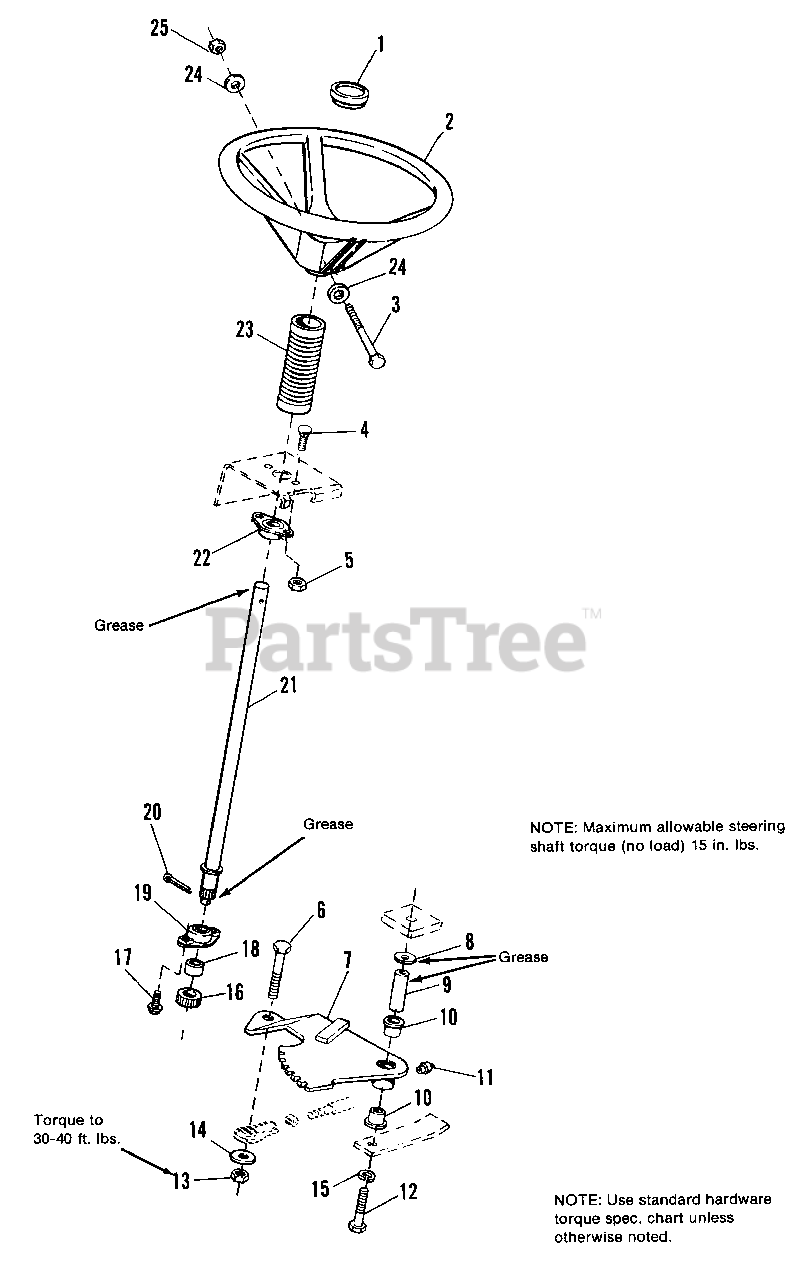

Steering Group Parts Diagram

  • Title

1

Simplicity 1657017SM

CAP, Steering Wheel

$

$

Not available

2

Simplicity 1686651SM

STEERING WHEEL

$190.99

$

In Stock, only 1 left!

0

3

Simplicity 1925690SM

CAPSCREW, Hex, 5/16-18 x 3-1/2

$4.99

$

Usually ships in 2-12 days

0

4

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

5

Simplicity 1931277SM

NUT, Hex, Whizlock, 5/16 x 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Simplicity 1920328SM

CAPSCREW, Hex, 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 1703009SM

ARM ASSY.
(Superseded to 1703009ASM)

$276.99

$

Usually ships in 2-12 days

0

8

Simplicity 1702786

WASHER, Nylon

$

$

Not available

9

Simplicity 1703112SM

SPACER

$9.99

$

Usually ships in 2-12 days

0

10

Simplicity 1671737SM

BEARING

$4.99

$

In Stock, only 1 left!

0

11

Simplicity 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

12

Simplicity 1927469SM

CAPSCREW, Hex, 1/2-13 x 2-1/4

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 1960379SM

NUT, Esna Hex, 1/2-13 (Thin)

$4.99

$

In Stock, Qty 18

0

14

Simplicity 1960170SM

WASHER, 1/2 x 1
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

15

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

16

Simplicity 1703305SM

PINION, Steering Shaft

$50.99

$

Usually ships in 2-12 days

0

17

Simplicity 1933260SM

SCREW, Whizlock, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

18

Simplicity 1702784

SPACER, Steering Shaft

$

$

Not available

19

Simplicity 1703226SM

BEARING, Flange

$32.99

$

Usually ships in 2-12 days

0

20

Simplicity 1918455SM

PIN, Cotter

$

$

Not available

21

Simplicity 1702870SM

SHAFT ASSY., Steering

$199.99

$

Usually ships in 2-12 days

0

22

Simplicity 1702385SM

BEARING, Flange

$8.99

$

Usually ships in 2-12 days

0

23

Simplicity 1678381SM

TUBE, Steering Shaft

$10.99

$

Usually ships in 2-12 days

0

24

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

25

Simplicity 1919438SM

NUT, Hex Esna Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0
