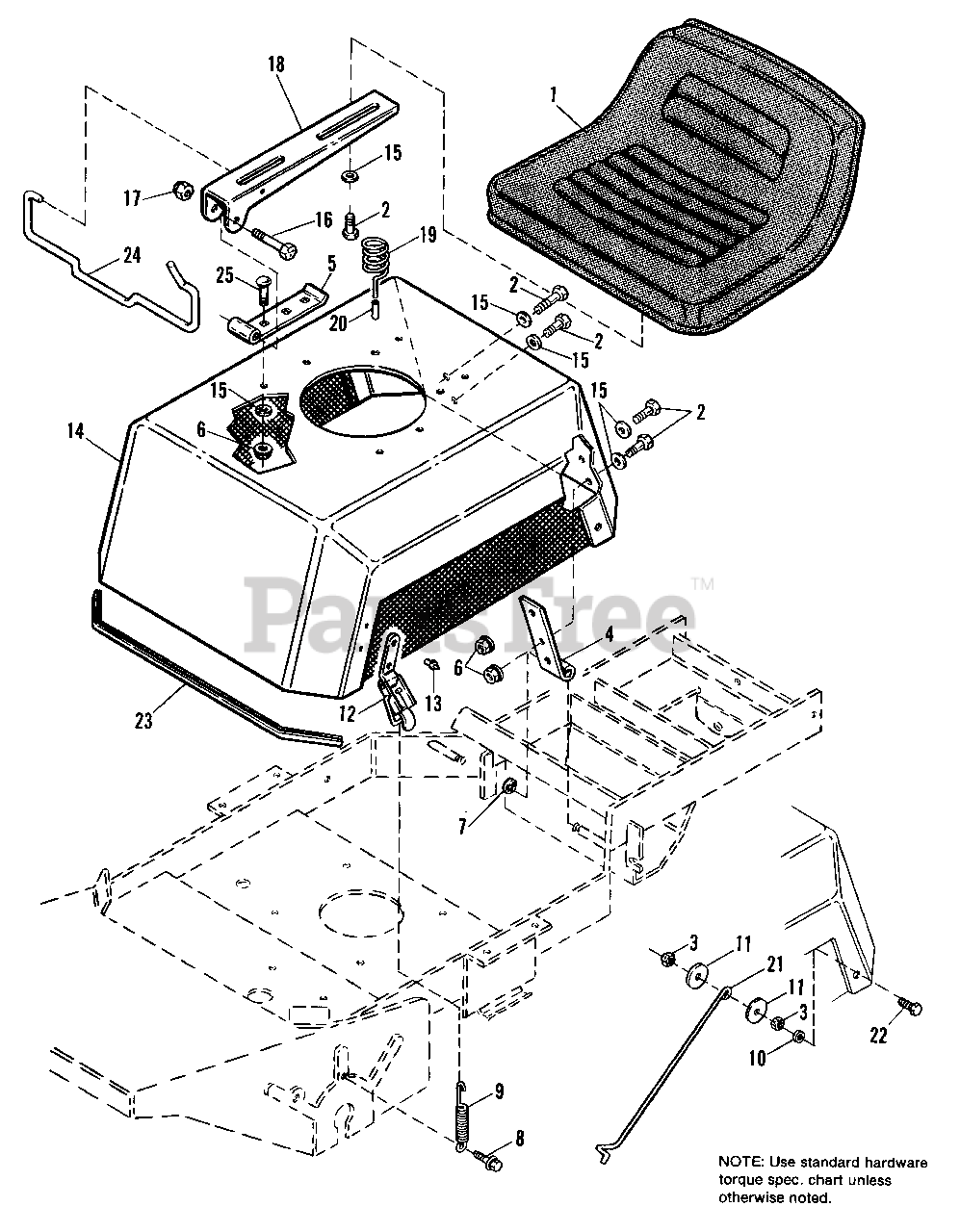

1691668 - Simplicity 42" Rear-Engine Riding Mower, 12hp Seat & Deck Group Parts Diagram

42" Rear-Engine Riding Mower, 12hp

Seat & Deck Group Parts Diagram

  • Title

1

Simplicity 1714315SM

SEAT

$210.99

$

Usually ships in 2-12 days

0

2

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

3

Simplicity 1923358SM

NUT, Hex Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

4

Simplicity 1701560SM

HINGE, Seat Deck

$

$

Not available

5

Simplicity 1701560SM

HINGE, Lower Seat

$

$

Not available

6

Simplicity 1931277SM

NUT, Hex, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Simplicity 2832724SM

RING, Retaining

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 1924856SM

SCREW, Taptite, 5/16-18
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

9

Simplicity 1702722SM

SPRING, Latch

$11.99

$

Usually ships in 2-12 days

0

10

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1960151SM

WASHER, 1/4 x 1-1/4
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

12

Simplicity 1678417SM

LATCH, Seat, Pull Tight

$10.99

$

In Stock, only 1 left!

0

13

Simplicity 1675044SM

RIVET, Seat Latch

$3.99

$

In Stock, only 1 left!

0

14

Simplicity 1705060SM

DECK, Seat (1691654)

$222.99

$

Usually ships in 2-12 days

0

14

Simplicity 1705060SM

DECK, Seat (1691658)

$222.99

$

Usually ships in 2-12 days

0

15

Simplicity 1919326SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 8

0

16

Simplicity 1923701SM

CAPSCREW, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

17

Simplicity 1919439SM

NUT, Hex Esna Lock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1701559SM

HINGE, Upper, Seat

$13.99

$

Usually ships in 2-12 days

0

19

Simplicity 1666690SM

SPRING, Seat

$

$

Not available

20

Simplicity 1666691SM

COVER, Spring

$4.99

$

In Stock, only 4 left!

0

21

Simplicity 1703530SM

ROD, Seat Deck

$13.99

$

Usually ships in 2-12 days

0

22

Simplicity 1921960SM

CAPSCREW, 1/4-20 x 1-1/4

$3.49

$

In Stock, only 1 left!

0

23

Simplicity 1702158

MOLDING, Deck

$

$

Not available

24

Simplicity 1703533SM

LATCH, Seat

$11.99

$

Usually ships in 2-12 days

0

25

Simplicity 1960282SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0
