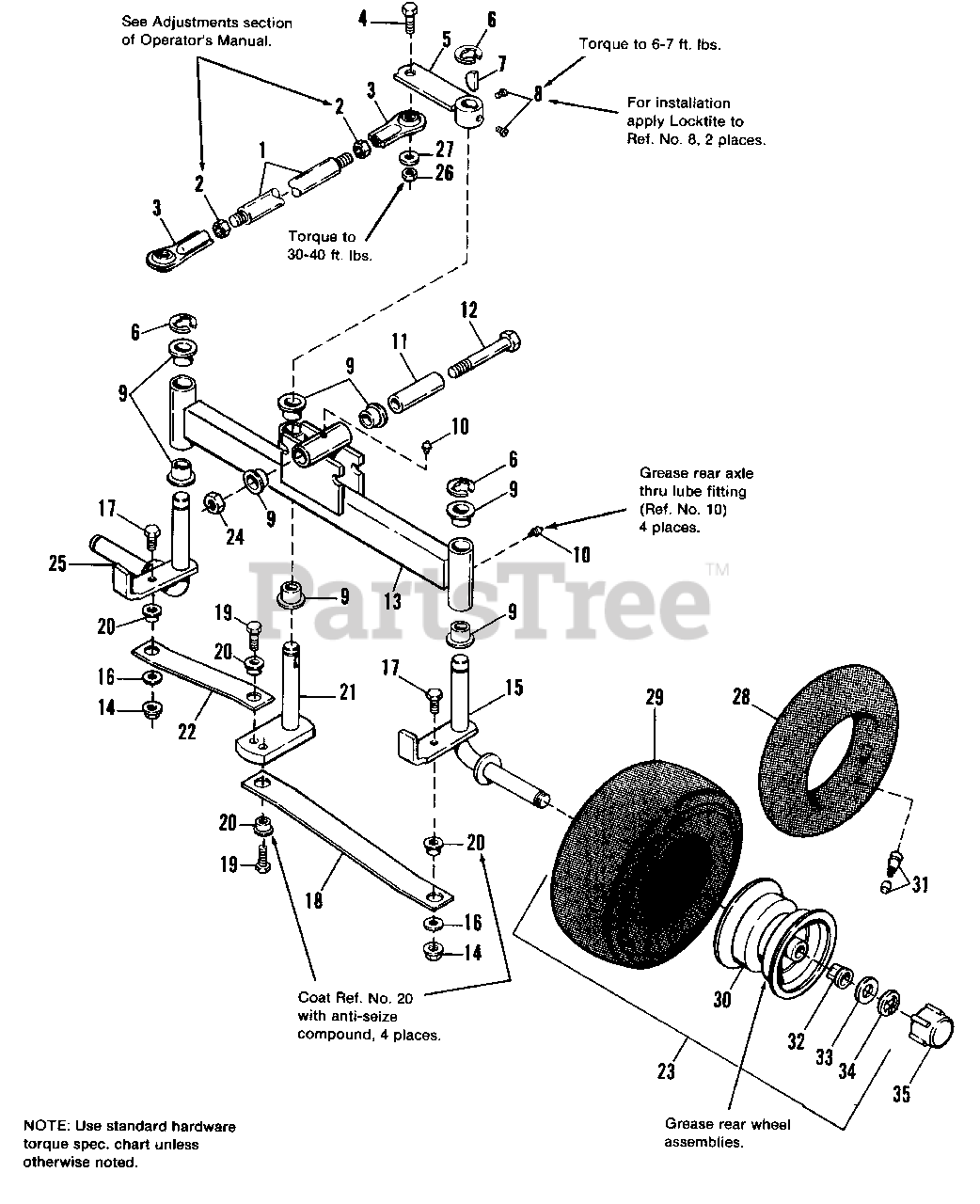

1691668 - Simplicity 42" Rear-Engine Riding Mower, 12hp Rear Axle & Rear Wheel Group Parts Diagram

42" Rear-Engine Riding Mower, 12hp

Rear Axle & Rear Wheel Group Parts Diagram

  • Title

1

Simplicity 1702778SM

DRAG LINK

$

$

Not available

2

Simplicity 1919262SM

NUT, Jam,1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1702779SM

ROD END, Ball Joint

$28.99

$

In Stock, Qty 14

0

4

Simplicity 1920328SM

CAPSCREW, Hex Hd.,1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

Usually ships in 2-12 days

0

5

Simplicity 1703203ASM

STEERING ARM ASSY.

$47.99

$

Usually ships in 2-12 days

0

6

Simplicity 1611710SM

E-RING

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 2830672SM

KEY, HiPro, 3/16 x 5/8

$5.49

$

Usually ships in 2-12 days

0

8

Simplicity 1928804SM

SETSCREW, Cup Pt., 1/4-20 x 5/16

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 2176440SM

BEARING, Nylon

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 2821133SM

LUBE FITTING
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 1678228SM

TUBE, Pivot Support

$24.99

$

Usually ships in 2-12 days

0

12

Simplicity 1926158SM

CAPSCREW, 1/2-13 X 4

$6.99

$

In Stock, only 1 left!

0

13

Simplicity 1703175SM

REAR AXLE ASSY.

$

$

Not available

14

Simplicity 1930645SM

NUT, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Simplicity 1703964ASM

SPINDLE ASSY., L.H.

$75.99

$

Usually ships in 2-12 days

0

16

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1703178SM

ROD, Tie
(Superseded to 1703178ASM)

$9.99

$

In Stock, only 1 left!

0

19

Simplicity 1960378SM

CAPSCREW, Whizlock, 3/8-16 X 7/8

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 1678333SM

SPACER

$9.99

$

In Stock, only 4 left!

0

21

Simplicity 1703172SM

STEERING ARM ASSY

$52.99

$

Usually ships in 2-12 days

0

22

Simplicity 1678313ASM

ROD, Tie

$34.99

$

In Stock, only 1 left!

0

23

Simplicity 1714239SM

WHEEL & TIRE ASSY., White (13 x 5.00-8)

$136.99

$

Usually ships in 2-12 days

0

23

Simplicity 1714239SM

WHEEL & TIRE ASSY., Silver (13 x 5.00-8)

$136.99

$

Usually ships in 2-12 days

0

24

Simplicity 1930644SM

NUT, Esna, Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

25

Simplicity 1703954SM

SPINDLE ASSY., R.H.

$

$

Not available

26

Simplicity 1960379SM

NUT, Esna, Lock, 1/2-13 (Thin)

$4.99

$

In Stock, Qty 18

0

27

Simplicity 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

28

Simplicity 1664090SM

TUBE (Service only, see note below)

$26.99

$

In Stock, only 3 left!

0

29

Simplicity 1709376SM

TIRE, 13X5.00-6

$88.99

$

In Stock, only 1 left!

0

30

Simplicity 1714239SM

WHEEL ASSY., White (13 x 5.00-6)

$136.99

$

Usually ships in 2-12 days

0

30

Simplicity 1714239SM

WHEEL ASSY., Silver (13 x 5.00-6)

$136.99

$

Usually ships in 2-12 days

0

31

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

32

Simplicity 1713167SM

BEARING
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

33

Simplicity 2860202SM

WASHER, 3/4

$4.49

$

In Stock, Qty 20+

0

34

Simplicity 1611710SM

RING, Retaining

$4.49

$

In Stock, Qty 20+

0

35

Simplicity 1673333SM

CAP, Threaded

$5.49

$

In Stock, Qty 5

0
