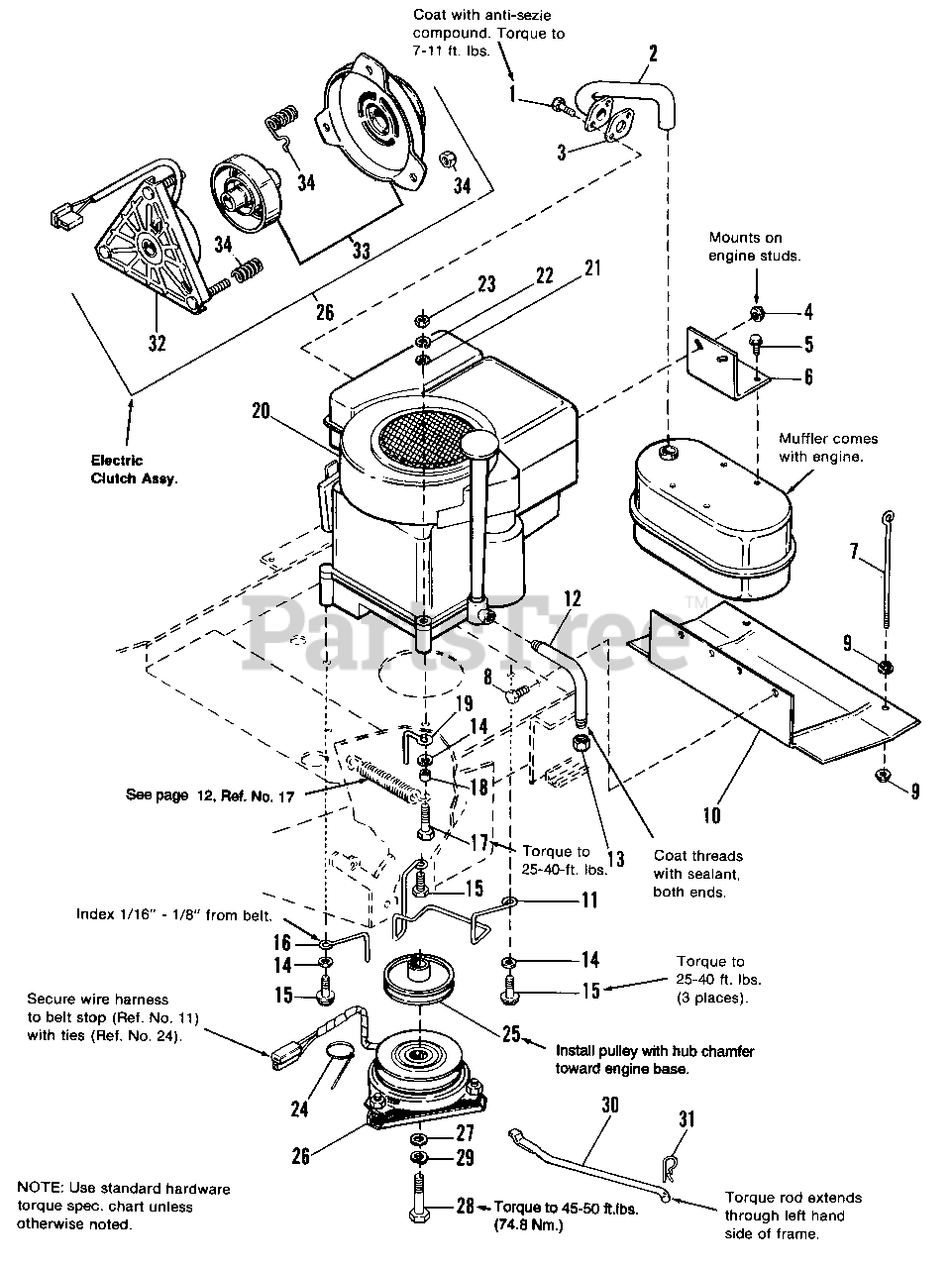

1691668 - Simplicity 42" Rear-Engine Riding Mower, 12hp Engine Group Parts Diagram

42" Rear-Engine Riding Mower, 12hp

Engine Group Parts Diagram

  • Title

1

Simplicity 1930591SM

SCREW, Whizlock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

2

Simplicity 1655860SM

PIPE, Exhaust

$112.99

$

In Stock, only 1 left!

0

3

Simplicity 1650670SM

GASKET, Muffler

$8.49

$

Usually ships in 2-12 days

0

4

Simplicity 1931277SM

NUT, Hex Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

5

Simplicity 1927429SM

SCREW, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 9

0

6

Simplicity 1700164

BRACKET, Muffler

$

$

Not available

7

Simplicity 1676338SM

ROD, Battery Hold Down

$23.99

$

Usually ships in 2-12 days

0

8

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

9

Simplicity 1960294SM

NUT, Flange Whizlock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 10

0

10

Simplicity 1703720SM

HEAT SHIELD ASSY.

$26.99

$

Usually ships in 2-12 days

0

11

Simplicity 1705268SM

STOP, Belt

$30.99

$

Usually ships in 2-12 days

0

12

Simplicity 1664989

DRAIN, Oil

$

$

Not available

13

Simplicity 1667346SM

CAP, Hex, 3/8

$7.49

$

Usually ships in 2-12 days

0

14

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 704010

SCREW, Taptite, 3/8-16 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 2172844SM

STOP, Belt

$26.99

$

Usually ships in 2-12 days

0

17

Simplicity 2860358SM

SCREW, Taptite, 3/8-16 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1666804SM

SPACER

$8.99

$

In Stock, only 1 left!

0

19

Simplicity 1678306SM

STOP, Belt

$

$

Not available

20

ENGINE, 12 HP Briggs & Stratton (Includes muffler)

$

$

Not available

21

Simplicity 2820427SM

LOCKWASHER, Ext. Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

23

Simplicity 2816950SM

NUT, Hex Hd., 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

24

Simplicity 1704739SM

TIE

$

$

Not available

25

Simplicity 1702961

PULLEY ASSY., Drive

$

$

Not available

26

Simplicity 1703074

ELECTRIC CLUTCH ASSY. (Incl. Ref. Nos. 32-34)

$

$

Not available

27

Simplicity 1708264SM

WASHER, 7/16

$8.99

$

In Stock, Qty 5

0

28

Simplicity 1960351SM

CAPSCREW, Hex, 7/16 x 3-1/4

$5.49

$

Usually ships in 2-12 days

0

29

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1703107SM

ROD, Torque

$

$

Not available

31

Simplicity 1918196SM

CLIP, Hair Pin
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

32

Simplicity 1679101

FIELD ASSY., Clutch

$

$

Not available

33

Simplicity 1703074

ROTOR ASSY./ARMATURE ASSY. KIT, Clutch

$

$

Not available

34

Simplicity 1679104SM

ACCESSORY KIT

$12.99

$

Usually ships in 2-12 days

0
