1691666 - Simplicity 48" Mower Deck 42" & 48" Mower - Support Parts Diagram

48" Mower Deck

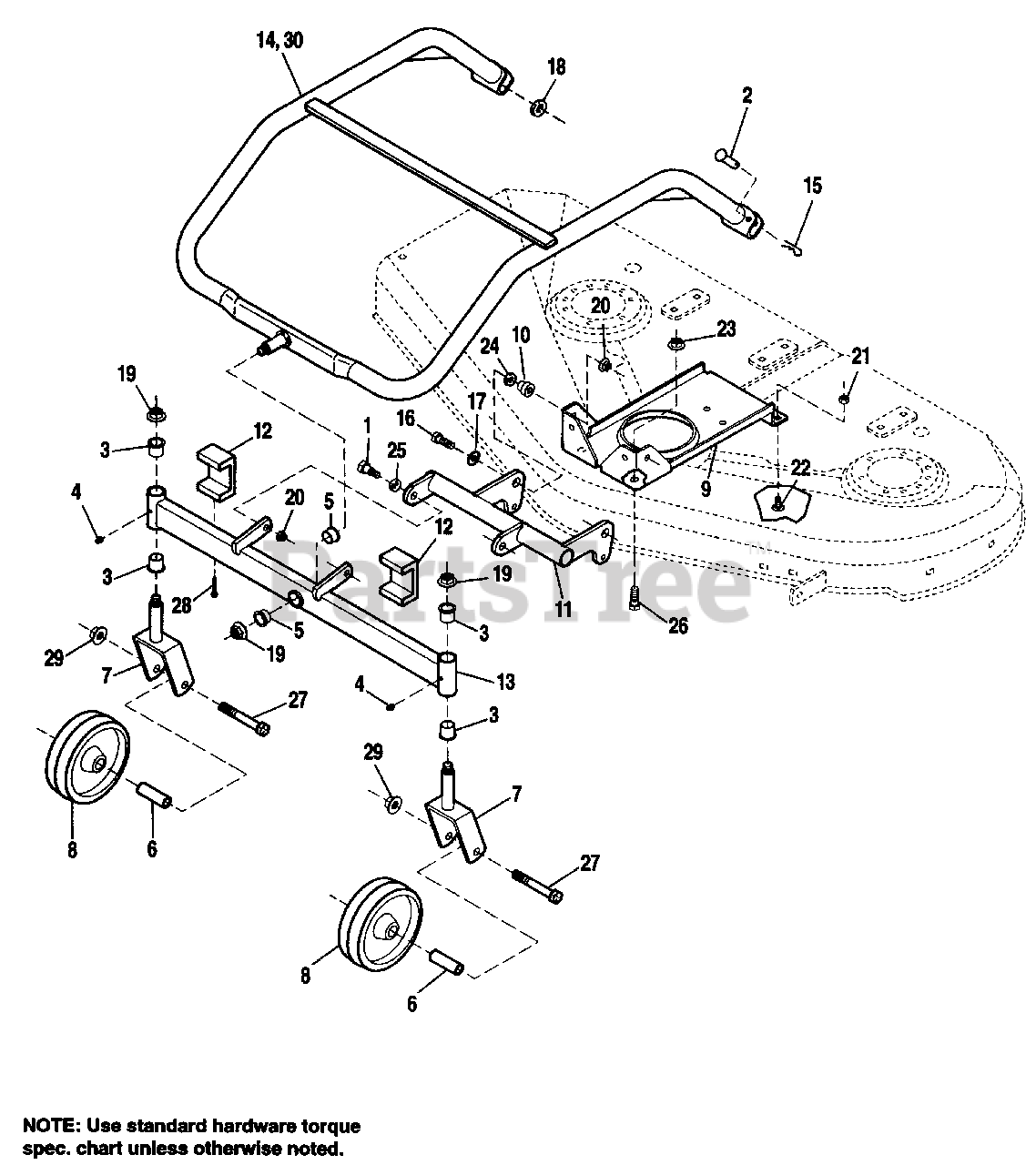

42" & 48" Mower - Support Parts Diagram

  • Title

1

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

2

Simplicity 1729019SM

PIN, Hitch
(Superseded to 703982)

$6.99

$

Usually ships in 2-12 days

0

3

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

4

Simplicity 2821133SM

FITTING, Grease, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

5

Simplicity 1671737SM

BUSHING

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 1678304SM

SPACER

$16.99

$

In Stock, only 1 left!

0

7

Simplicity 1685389SM

YOKE ASSY.

$133.99

$

Usually ships in 2-12 days

0

8

Simplicity 1702483SM

WHEEL

$20.99

$

In Stock, Qty 6

0

9

Simplicity 1703028SM

SUPPORT ASSY.
(Superseded to 1703028ASM)

$67.99

$

Usually ships in 2-12 days

0

10

Simplicity 1703115

SPACER

$

$

Not available

11

Simplicity 1703724SM

ROCKER ARM ASSY.

$94.99

$

Usually ships in 2-12 days

0

12

Simplicity 1703763SM

BEARING, Block

$75.99

$

Usually ships in 2-12 days

0

13

Simplicity 1704458

AXLE ASSY., Mower (Incl. Ref. Nos. 12 & 28)

$

$

Not available

14

Simplicity 1705039SM

MOWER ARM ASSY., 42", Orange

$

$

Not available

15

Simplicity 1918196SM

PIN, Hair Pin
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1921969SM

CAPSCREW, Hex, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

18

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1930644SM

NUT, Centerlock, 1/2-13

$3.49

$

In Stock, Qty 6

0

20

Simplicity 1931211SM

NUT, Hex, Whizlock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 1931277SM

NUT, Hex, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

22

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1935041SM

NUT, Whizlock, 7/16-14

$1.99

$

Usually ships in 2-12 days

0

24

Simplicity 1960020SM

WASHER, Plain

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 1960027SM

WASHER, Plain
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1960043SM

CAPSCREW, Whizlock, 7/16-14 x 1

$7.49

$

Usually ships in 2-12 days

0

27

Simplicity 1960286SM

CAPSCREW, Hex, 1/2-13 x 3-1/2

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 1960365

SCREW, Self-Tapping

$

$

Not available

29

Simplicity 1960379SM

NUT, ESNA, Lock, 1/2-13 (Thin)

$4.99

$

In Stock, Qty 18

0

30

Simplicity 1729557

MOWER ARM ASSY., Black

$

$

Not available
