1691665 - Simplicity 42" Mower Deck 42" Arbor Group Parts Diagram

42" Mower Deck

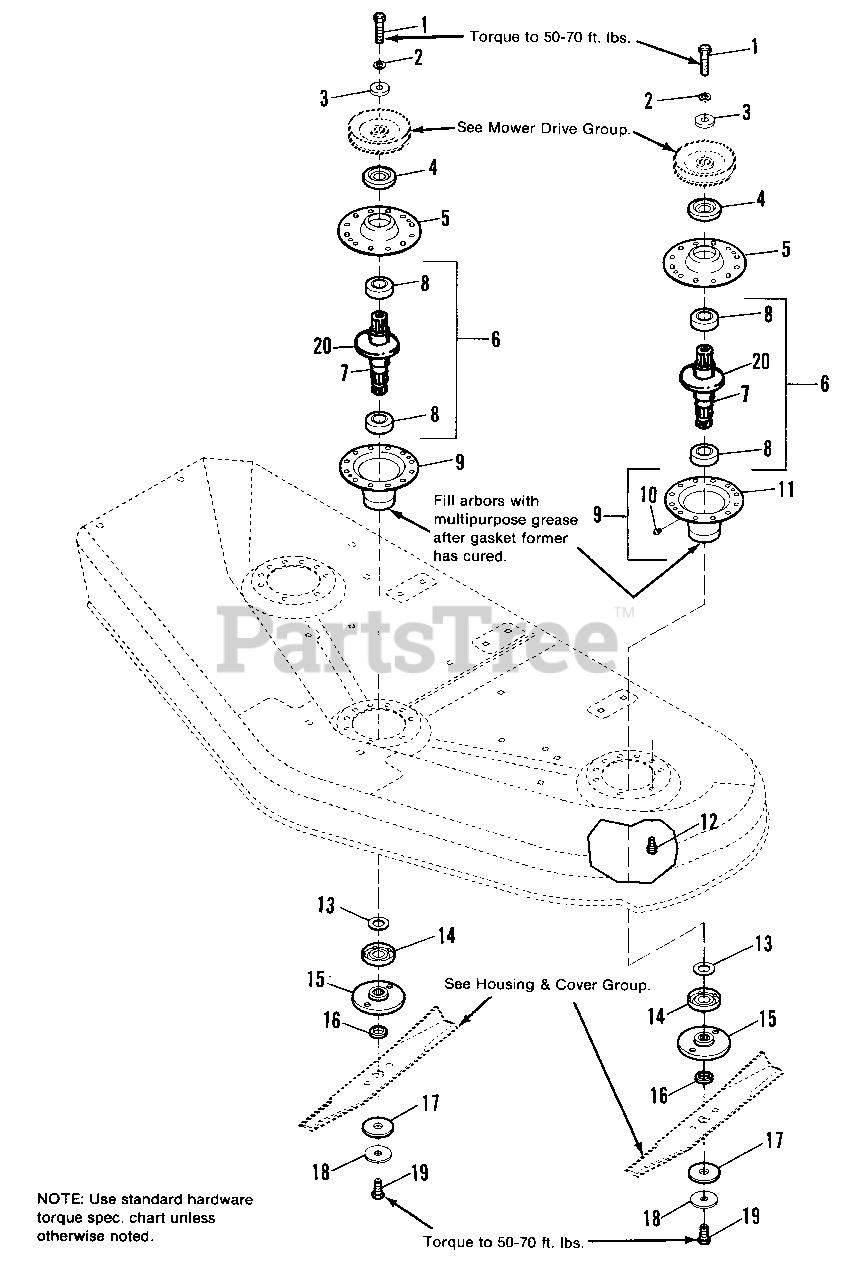

42" Arbor Group Parts Diagram

  • Title

1

Simplicity 1936723SM

CAPSCREW, Hex, 7/16-14 x 1-3/4

$

$

Not available

2

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1933263SM

WASHER, 7/16
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

4

Simplicity 1657969SM

SHIELD, Bearing Upper, Arbor

$7.49

$

In Stock, Qty 20+

0

5

Simplicity 1655729ASM

HOUSING, Top

$14.99

$

Usually ships in 2-12 days

0

6

Simplicity 1685251SM

SHAFT & BEARING ASSY., (Incl. Ref. Nos. 7 & 8)

$99.99

$

In Stock, Qty 13

0

7

Simplicity 1685245SM

SHAFT, Arbor

$74.99

$

In Stock, Qty 6

0

8

Simplicity 2108202SM

BEARING ASSY.

$11.99

$

In Stock, Qty 20+

0

9

Simplicity 1703273ASM

HOUSING ASSY., Arbor Bottom (Incl. Ref. Nos. 10-11)

$38.99

$

In Stock, Qty 20+

0

10

Simplicity 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

11

HOUSING, Bottom (See Ref. No. 9)

$

$

Not available

12

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1700230SM

WASHER, Shim

$4.99

$

In Stock, Qty 20+

0

14

Simplicity 1700229SM

SHIELD, Grass

$10.99

$

In Stock, Qty 20+

0

15

Simplicity 1622777

ADAPTOR, Blade

$

$

Not available

16

Simplicity 1672132SM

COLLAR, Mower Arbor

$12.99

$

In Stock, only 4 left!

0

17

Simplicity 1656927SM

WASHER, Spline

$8.99

$

In Stock, Qty 17

0

18

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

19

Simplicity 2823471SM

CAPSCREW, Hex, 7/16-14 x 1
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0
