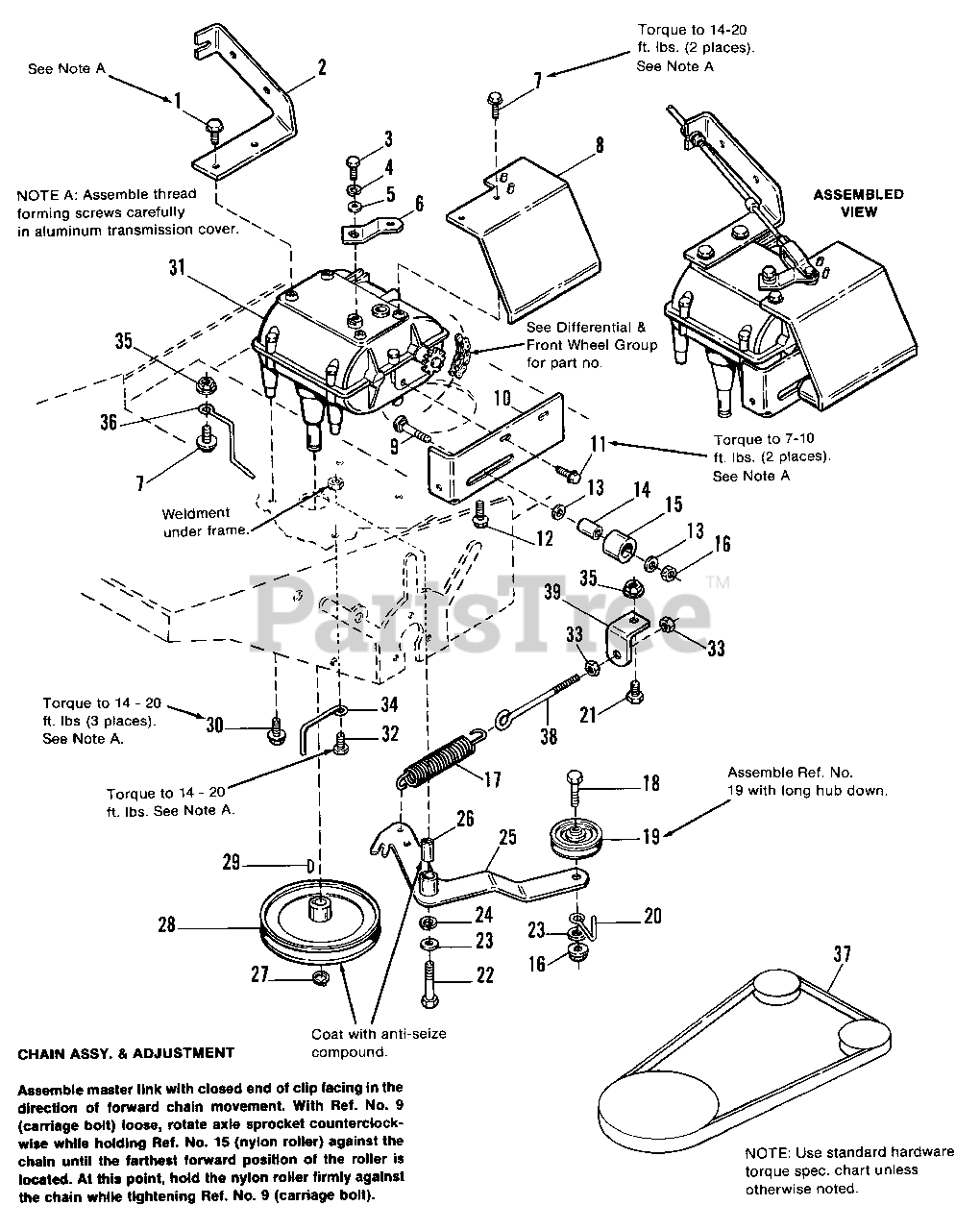

1691654 - Simplicity Rear-Engine Riding Mower, 12hp Transmission Group Parts Diagram

Rear-Engine Riding Mower, 12hp

Transmission Group Parts Diagram

  • Title

1

Simplicity 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

2

Simplicity 1678285

BRACKET, Cable

$

$

Not available

3

Simplicity 1922234SM

CAPSCREW, Hex, 1/4-28 x 5/8

$2.49

$

Usually ships in 2-12 days

0

4

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

5

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 1 left!

0

6

Simplicity 1678283SM

LEVER, Shift

$12.99

$

In Stock, only 1 left!

0

7

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

8

Simplicity 1678372

GUARD, Chain

$

$

Not available

9

Simplicity 1960315SM

CARRIAGE BOLT, 3/8-16 x 2.0

$6.49

$

In Stock, only 1 left!

0

10

Simplicity 1677867

SUPPORT, Transmission

$

$

Not available

11

Simplicity 1927429SM

SCREW, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 9

0

12

Simplicity 1936482SM

SCREW, Taptite, 5/16-18 x 3/4

$2.99

$

Usually ships in 2-12 days

0

13

Simplicity 1922611SM

WASHER, 3/8

$6.99

$

In Stock, only 1 left!

0

14

Simplicity 2170369SM

SPACER

$

$

Not available

15

Simplicity 2170177SM

ROLLER, Nylon

$9.49

$

Usually ships in 2-12 days

0

16

Simplicity 1919439SM

NUT, ESNA Lock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1676351SM

SPRING

$19.99

$

Usually ships in 2-12 days

0

18

Simplicity 1921971SM

CAPSCREW, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

19

Simplicity 1668827SM

PULLEY, Idler

$22.99

$

Usually ships in 2-12 days

0

20

Simplicity 1656054SM

STOP, Belt

$

$

Not available

21

Simplicity 1921332SM

CAPSCREW, Hex, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

22

Simplicity 1922130SM

CAPSCREW, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

23

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1916803SM

LOCKWASHER, 3/8

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 1678054

CLUTCH ARM ASSY.

$

$

Not available

26

Simplicity 1669105SM

SPACER

$13.99

$

In Stock, only 2 left!

0

27

Simplicity 2827103SM

RING, Retaining

$4.49

$

Usually ships in 2-12 days

0

28

Simplicity 1678350

PULLEY ASSY., Transmission

$

$

Not available

29

Simplicity 2805123SM

KEY, Woodruff No. 9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 1930591SM

SCREW, Hex Whizlock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

31

TRANSMISSION, 5 Speed

$

$

Not available

32

Simplicity 1960373SM

SCREW, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

33

Simplicity 1920161SM

NUT, Jam, 5/16-18

$4.49

$

In Stock, Qty 7

0

34

Simplicity 2172845SM

STOP, Belt

$11.99

$

Usually ships in 2-12 days

0

35

Simplicity 1931277SM

NUT, Hex Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

36

Simplicity 1704808

STOP, Belt

$

$

Not available

37

Simplicity 1678354SM

BELT, Drive

$26.99

$

Usually ships in 2-12 days

0

38

Simplicity 1704865

EYEBOLT
(Superseded to 1704865SM)

$18.99

$

Usually ships in 2-12 days

0

39

Simplicity 1669377

BRACKET

$

$

Not available
