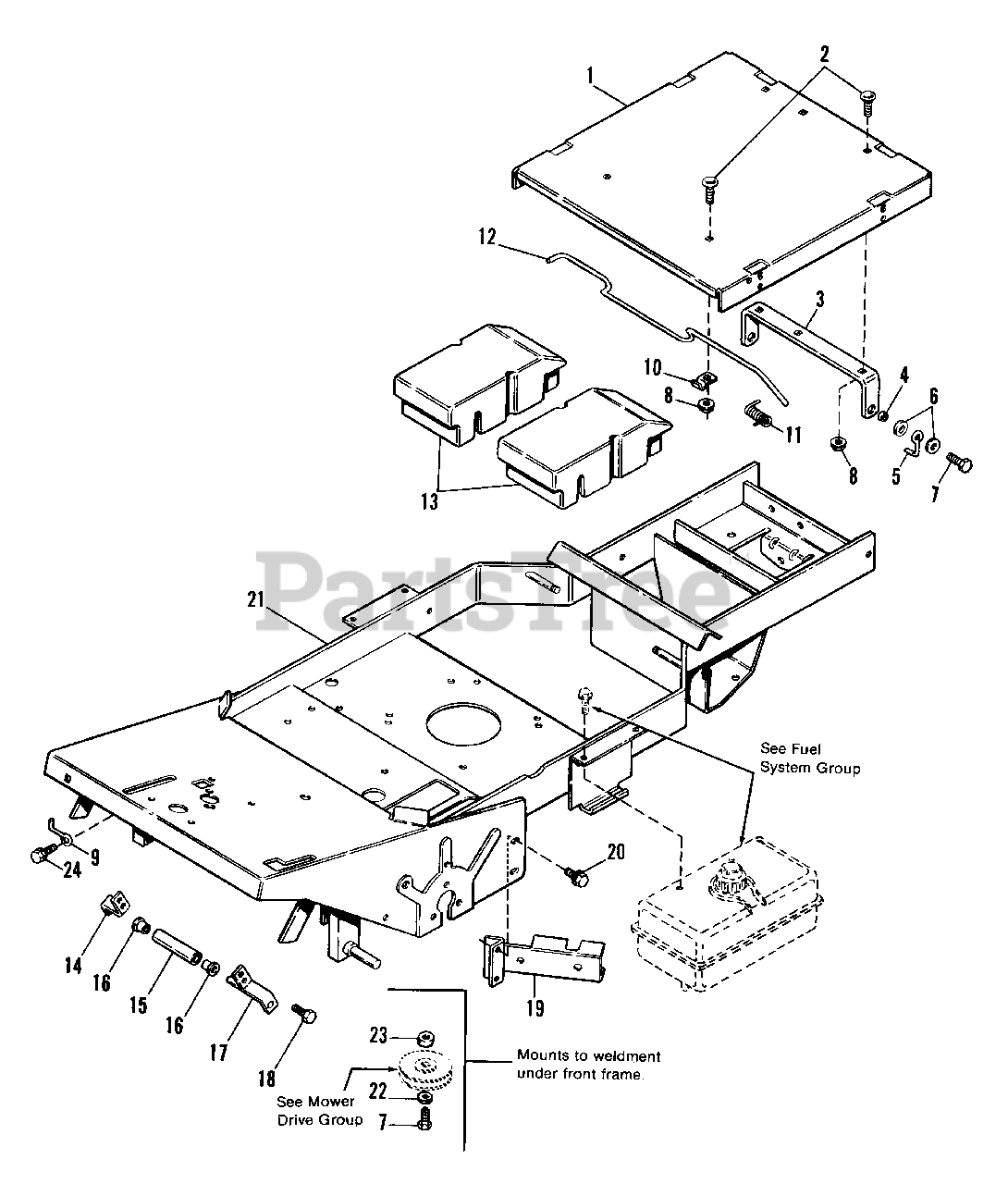

1691654 - Simplicity Rear-Engine Riding Mower, 12hp Frame Group Parts Diagram

Rear-Engine Riding Mower, 12hp

Frame Group Parts Diagram

  • Title

1

Simplicity 1703308SM

PLATFORM (1691654)

$77.99

$

Usually ships in 2-12 days

0

1

Simplicity 703308

PLATFORM (1691658)

$

$

Not available

2

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1704173SM

BRACKET, Pivot

$11.99

$

Usually ships in 2-12 days

0

4

Simplicity 2108717SM

SPACER

$17.99

$

In Stock, only 2 left!

0

5

Simplicity 2170397SM

STOP, Pivot

$11.99

$

Usually ships in 2-12 days

0

6

Simplicity 1926940

WASHER, Plain

$

$

Not available

7

Simplicity 1928635SM

SCREW, Taptite, 5/16-16 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 1931277SM

NUT, Hex, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Simplicity 1678424

RETAINER, Cable

$

$

Not available

10

Simplicity 1664004SM

CLIP

$6.49

$

Usually ships in 2-12 days

0

11

Simplicity 1703310

SPRING, Torsion

$

$

Not available

12

Simplicity 1703309SM

ROD, Latch

$45.99

$

Usually ships in 2-12 days

0

13

Simplicity 1703522

WEIGHT, Rear

$

$

Not available

14

Simplicity 1703774SM

BRACKET, Roller, Front

$4.99

$

Usually ships in 2-12 days

0

15

Simplicity 1703775SM

TUBE, Pivot

$27.99

$

Usually ships in 2-12 days

0

16

Simplicity 1704505SM

BUSHING, Flanged

$

$

Not available

17

Simplicity 1703777SM

BRACKET ASSY.

$15.99

$

Usually ships in 2-12 days

0

18

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1703180SM

SUPPORT ASSY., GasTank

$18.99

$

Usually ships in 2-12 days

0

20

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

21

Simplicity 1703358

FRAME ASSY.

$

$

Not available

22

Simplicity 1922755SM

WASHER, Plain, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

23

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

24

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0
