1691640 - Simplicity SunRunner Front Cut Rear-Engine Riding Mower, 12hp Transmission Drive Group Parts Diagram

SunRunner Front Cut Rear-Engine Riding Mower, 12hp

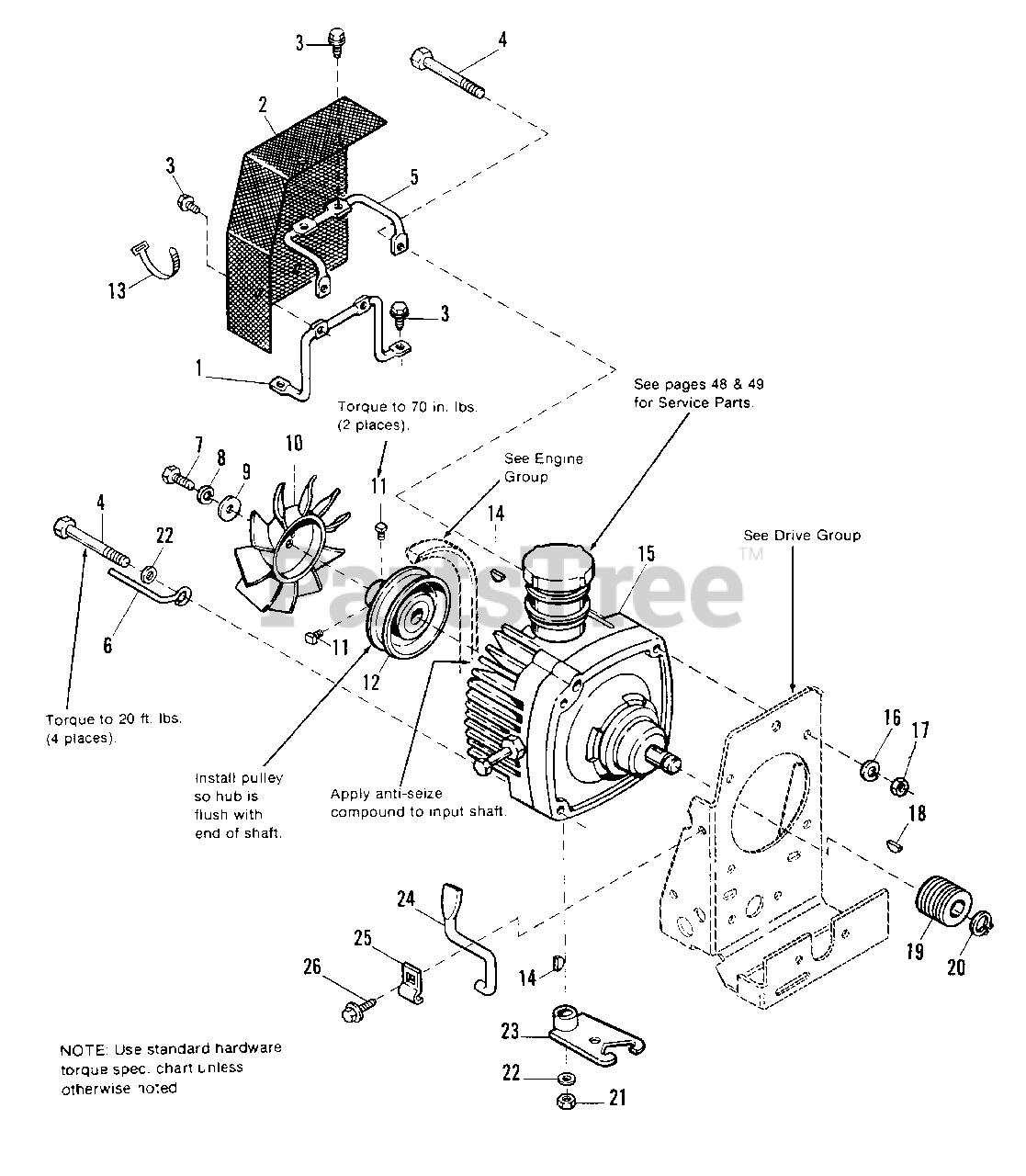

Transmission Drive Group Parts Diagram

  • Title
1

Simplicity 1701219

MOUNTING BRACKET, Fan Guard

$

$

Not available

2

$

$

Not available

3

Simplicity 1925003SM

SCREW, Hex Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

4

Simplicity 1923903SM

CAPSCREW, Hex 3/8-16 x 3

$4.49

$

In Stock, only 1 left!

0

5

Simplicity 1701221SM

MOUNTING BRACKET, Fan Guard

$18.99

$

Usually ships in 2-12 days

0

6

$31.99

$

Usually ships in 2-12 days

0

7

Simplicity 1921958SM

CAPSCREW, Hex, 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

9

Simplicity 1960151SM

WASHER, 1/4 x 1-1/4
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

$

$

Not available

11

Simplicity 1960110SM

SETSCREW, Sq. Hd., Cup Pt., 1/4-28 x 1/2

$7.99

$

In Stock, only 2 left!

0

12

Simplicity 1670855SM

PULLEY, Transmission

$95.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 2805119SM

KEY, Woodruff

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 1700690SM

TRANSMISSION-Hydro(See pages 48 & 49 for Service Parts)

$1738.99

$

Usually ships in 2-12 days

0

16

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

17

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 2810224SM

KEY, Woodruff

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 1700307SM

PULLEY, Drive

$121.99

$

Usually ships in 2-12 days

0

20

Simplicity 1960310SM

RING, Retaining

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 1930645SM

NUT, Hex Lock, 5/16-18
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

22

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

23

Simplicity 1700795SM

CONTROL ARM ASSY.

$45.99

$

Usually ships in 2-12 days

0

24

Simplicity 1701467SM

ROD, Tow Latch

$20.99

$

Usually ships in 2-12 days

0

25

Simplicity 1664004SM

CLIP, Tow Latch

$6.49

$

Usually ships in 2-12 days

0

26

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0
