1691640 - Simplicity SunRunner Front Cut Rear-Engine Riding Mower, 12hp Drive Group Parts Diagram

SunRunner Front Cut Rear-Engine Riding Mower, 12hp

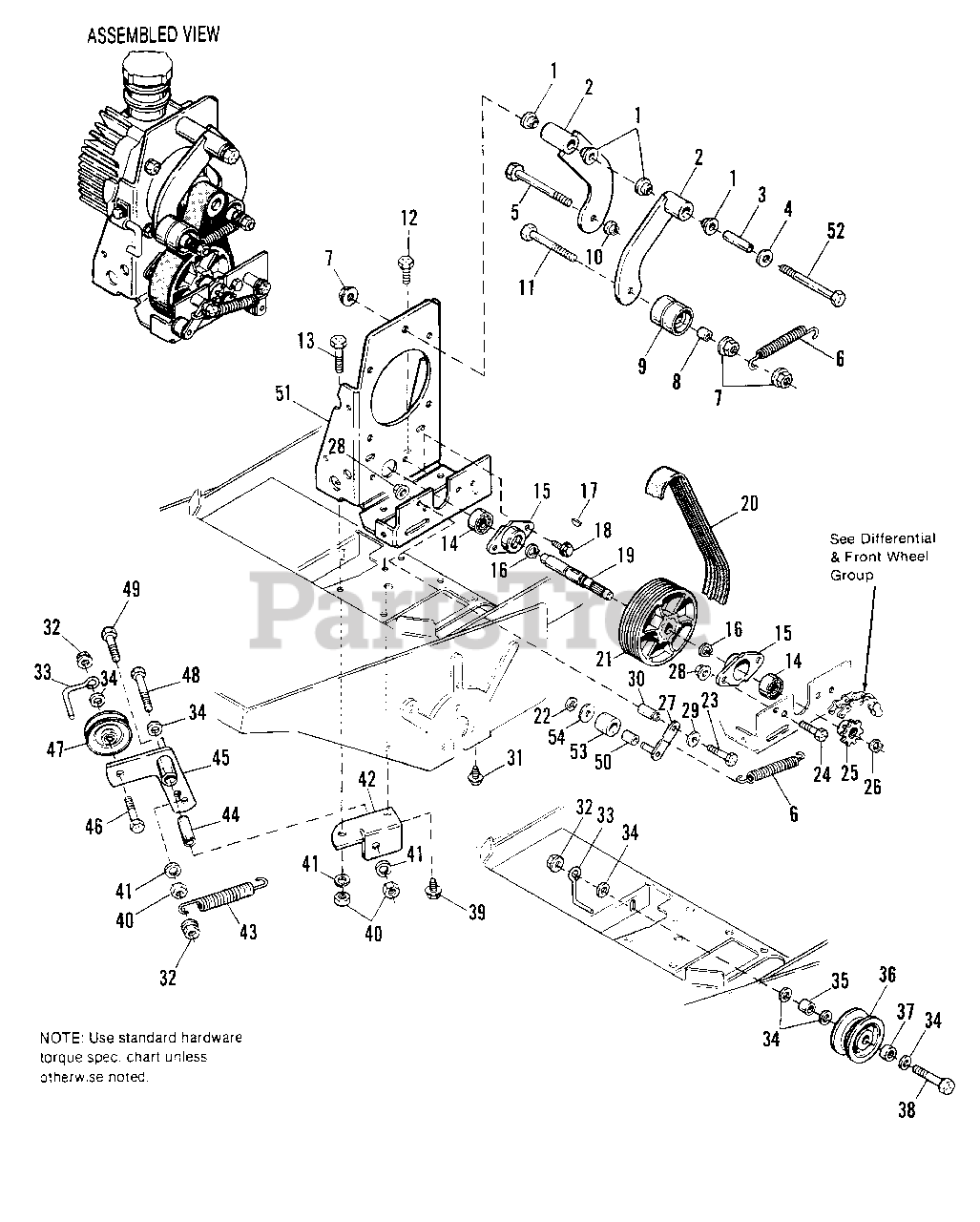

Drive Group Parts Diagram

  • Title

1

Simplicity 2176444SM

BUSHING

$3.99

$

In Stock, Qty 20+

0

2

Simplicity 1700976SM

IDLER ARM ASSY.

$31.99

$

Usually ships in 2-12 days

0

3

Simplicity 1669105SM

TUBE, Pivot

$13.99

$

In Stock, only 2 left!

0

4

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 1923938SM

CAPSCREW, Hex, 3/8-16 x 3-1/2
(Superseded to 703182)

$6.99

$

Usually ships in 2-12 days

0

6

Simplicity 1701763SM

SPRING, Tension, Idler Assy.

$12.99

$

Usually ships in 2-12 days

0

7

Simplicity 1930645SM

NUT, Hex Flangelock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

8

Simplicity 1665699SM

SPACER

$7.49

$

Usually ships in 2-12 days

0

9

Simplicity 1700996SM

PULLEY, Idler

$31.99

$

Usually ships in 2-12 days

0

10

Simplicity 1678333SM

SPACER

$9.99

$

In Stock, only 4 left!

0

11

Simplicity 1923903SM

CAPSCREW, Hex, 3/8-16 x 3

$4.49

$

In Stock, only 1 left!

0

12

Simplicity 1921965SM

CAPSCREW, Hex, 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 1921210SM

CAPSCREW, Hex, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

14

Simplicity 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

15

Simplicity 1667341SM

RETAINER, Bearing
(Superseded to 703155)

$5.99

$

In Stock, Qty 13

0

16

Simplicity 2166017SM

RING, Retaining

$1.99

$

Usually ships in 2-12 days

0

17

Simplicity 2805123SM

KEY, Woodruff
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

18

Simplicity 1928729SM

SCREW, Taptite, 5/16-18 x 3/8

$4.99

$

In Stock, only 2 left!

0

19

Simplicity 1701175SM

JACKSHAFT

$61.99

$

Usually ships in 2-12 days

0

20

Simplicity 1686616SM

BELT, Drive, Poly "V"

$170.99

$

Usually ships in 2-12 days

0

21

Simplicity 1700309SM

PULLEY, DRIVE

$158.99

$

Usually ships in 2-12 days

0

22

Simplicity 2828197SM

'E" RING, Retaining

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

24

Simplicity 1925205SM

CAPSCREW, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

25

Simplicity 1701174SM

SPROCKET, Drive (9 Teeth)

$

$

Not available

26

Simplicity 1960328SM

RING, Retaining

$5.49

$

Usually ships in 2-12 days

0

27

Simplicity 1685462SM

CONTROL ARM ASSY.

$142.99

$

Usually ships in 2-12 days

0

28

Simplicity 1935048SM

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 1919381SM

WASHER, Plain
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

30

Simplicity 1701786SM

SPACER, Control Arm Assy.

$

$

Not available

31

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

32

Simplicity 1930645SM

NUT, Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

33

Simplicity 1656054SM

STOP, Belt

$

$

Not available

34

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

35

Snapper 2118335SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

36

Simplicity 2154534SM

PULLEY, Idler

$32.99

$

In Stock, only 2 left!

0

37

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

38

Simplicity 1923701SM

CAPSCREW, Hex Hd., 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

39

Simplicity 1924856SM

SCREW, Hex Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

40

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

41

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

42

Simplicity 1700619

BRACKET, Clutch Arm

$

$

Not available

43

Simplicity 1676351SM

SPRING

$19.99

$

Usually ships in 2-12 days

0

44

Simplicity 1669105SM

SPACER

$13.99

$

In Stock, only 2 left!

0

45

Simplicity 1700629SM

CLUTCH ARM ASSY.

$35.99

$

Usually ships in 2-12 days

0

46

Simplicity 1921971SM

CAPSCREW, Hex, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

47

Simplicity 1668827SM

PULLEY, Idler

$22.99

$

Usually ships in 2-12 days

0

48

Simplicity 1922130SM

CAPSCREW, Hex Hd., 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

49

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

50

Simplicity 1701787SM

SPACER, Roller

$13.99

$

Usually ships in 2-12 days

0

51

Simplicity 1700640SM

BRACKET, Pump Mount

$39.99

$

Usually ships in 2-12 days

0

52

Simplicity 1922648SM

CAPSCREW, Hex, 3/8-16 x 4
(Superseded to 703875)

$4.99

$

Usually ships in 2-12 days

0

53

Simplicity 1701785SM

ROLLER, Chain

$19.99

$

Usually ships in 2-12 days

0

54

Simplicity 1922611SM

WASHER, Plain, 3/8 x 1-1/4

$6.99

$

In Stock, only 1 left!

0
