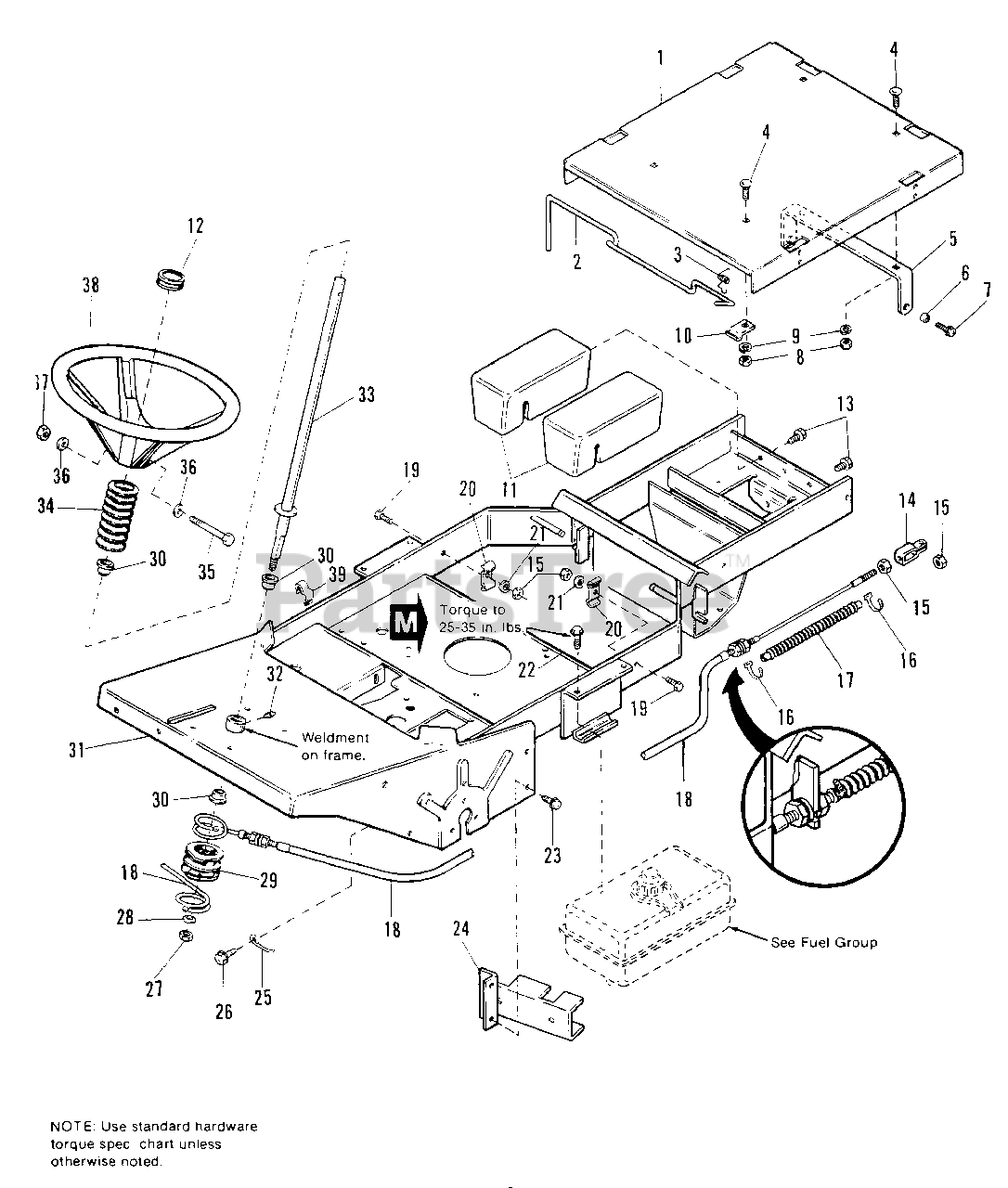

1691634 - Simplicity SunRunner Front Cut Rear-Engine Riding Mower, 12hp Frame & Steering Group - Early Models (Before Serial No. 004185) Parts Diagram

SunRunner Front Cut Rear-Engine Riding Mower, 12hp

Frame & Steering Group - Early Models (Before Serial No. 004185) Parts Diagram

  • Title

1

Simplicity 1703308SM

PLATFORM

$77.99

$

Usually ships in 2-12 days

0

2

Simplicity 1678389

ROD, Latch, Platform

$

$

Not available

3

Simplicity 1678390

SPRING, Torsion, Latch Rod

$

$

Not available

4

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1704173SM

BRACKET, Pivot, Platform

$11.99

$

Usually ships in 2-12 days

0

6

Simplicity 2108717SM

SPACER, Pivot Bracket

$17.99

$

In Stock, only 1 left!

0

7

Simplicity 1923683SM

CAPSCREW, Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

8

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1664004SM

CLIP, Latch Rod

$6.49

$

Usually ships in 2-12 days

0

11

WEIGHT, Rear

$

$

Not available

12

Simplicity 1657017SM

CAP, Steering Wheel

$

$

Not available

13

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1678377

CLEVIS, Steering Cable

$

$

Not available

15

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1701011SM

TIE, Steering Cable Boot, Self-locking

$5.49

$

In Stock, only 2 left!

0

17

Simplicity 1700048SM

BOOT, Rubber, Steering Cable

$

$

Not available

18

Simplicity 1685405SM

CABLE, Steering

$176.99

$

Usually ships in 2-12 days

0

19

Simplicity 1921960SM

CAPSCREW, 1/4-20 x 1

$3.49

$

In Stock, only 1 left!

0

20

Simplicity 1701700

CLAMP, Steering Cable

$

$

Not available

21

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

22

Simplicity 1678380SM

SCREW, Special, Fuel Tank

$

$

Not available

23

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

24

Simplicity 1703180SM

SUPPORT ASSY., Fuel Tank

$18.99

$

Usually ships in 2-12 days

0

25

Simplicity 1678424

RETAINER, Steering Cable

$

$

Not available

26

Simplicity 1664847SM

CAPSCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 1960355SM

LOCKNUT, 1/2-13, ESNA, Heavy
(Superseded to 703567)

$4.49

$

In Stock, only 2 left!

0

28

Simplicity 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1678244

DRUM, Steering Shaft

$

$

Not available

30

Simplicity 2176440SM

BUSHING, Nylon, Steering Shaft

$4.99

$

In Stock, Qty 20+

0

31

Simplicity 1685360

FRAME ASSY. KIT

$

$

Not available

32

Simplicity 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

33

Simplicity 1678310

STEERING SHAFT ASSY.

$

$

Not available

34

Simplicity 1678381SM

TUBE, Cover, Steering Shaft

$10.99

$

Usually ships in 2-12 days

0

35

Simplicity 1925690SM

CAPSCREW, 5/16-18 x 3-1/2

$4.99

$

Usually ships in 2-12 days

0

36

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 9

0

37

Simplicity 1923362SM

NUT, 5/16-18 Centerlock
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 1686651SM

STEERING WHEEL

$190.99

$

In Stock, only 1 left!

0

39

Simplicity 2172436SM

CLIP, Steering Cable

$4.49

$

In Stock, only 3 left!

0
