1691610 - Simplicity Collection Hose & Hitch for 42" & 48" Turbo Mower Turbo Hose & Hitch Group Parts Diagram

Collection Hose & Hitch for 42" & 48" Turbo Mower

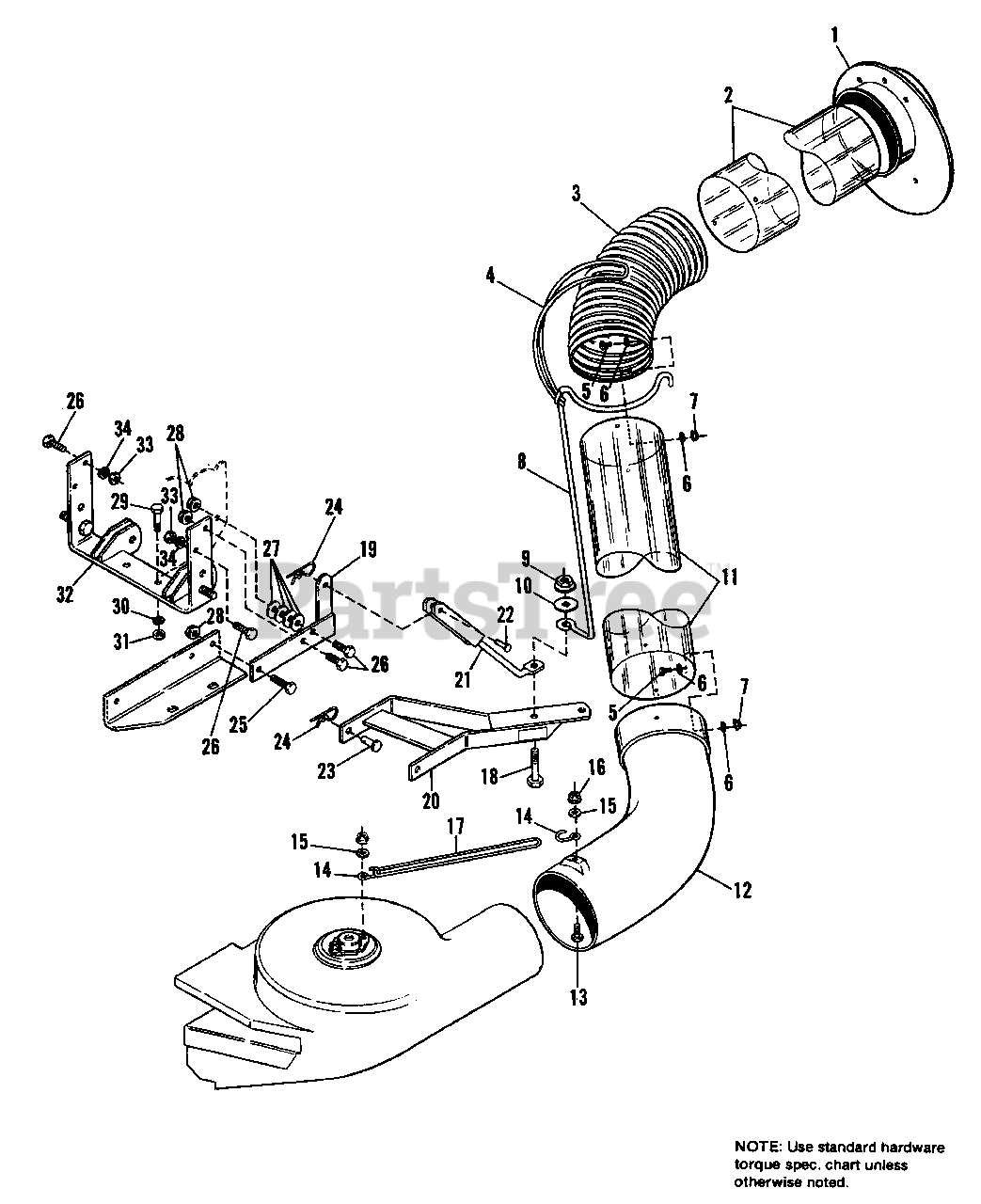

Turbo Hose & Hitch Group Parts Diagram

  • Title

1

Simplicity 1703147SM

CONNECTOR, Cart (7.0" Dia.)

$91.99

$

Usually ships in 2-12 days

0

2

Simplicity 1702762SM

TUBE

$

$

Not available

3

Simplicity 1679895SM

HOSE

$164.99

$

Usually ships in 2-12 days

0

4

Simplicity 1665872SM

STRAP

$11.99

$

In Stock, Qty 7

0

5

Simplicity 1930531SM

SCREW, Truss Hd., #10-32 x 1/2

$4.49

$

In Stock, only 2 left!

0

6

Simplicity 1910531SM

WASHER, Plain, #10

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 1928919SM

NUT, Hex, & Washer Assy., #10-32

$3.99

$

In Stock, Qty 5

0

8

Simplicity 1702517SM

SUPPORT, Tube

$

$

Not available

9

Simplicity 1930644SM

NUT, Hex, Flange, 1/2-13

$3.49

$

In Stock, Qty 6

0

10

Simplicity 1926192SM

WASHER

$19.99

$

Usually ships in 2-12 days

0

11

Simplicity 1702791SM

TUBE ASSY. (Mfg. No. 1691610) (w/decal)

Note: Ref. No. 11 Includes Part No.1675766, Qty. 1, of Cleaning Instruction Decal.

$148.99

$

Usually ships in 2-12 days

0

11

Simplicity 1702792SM

TUBE ASSY. (Mfg. No. 1691609) (w/decal)

Note: Ref. No. 11 Includes Part No.1675766, Qty. 1, of Cleaning Instruction Decal.

$

$

Not available

12

Simplicity 1702516SM

ELBOW

$

$

Not available

13

Simplicity 1925205SM

CAPSCREW, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

14

Simplicity 1702765SM

HOOK

$10.99

$

Usually ships in 2-12 days

0

15

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 6

0

16

Simplicity 1935048SM

NUT, Flange, Lock, 5/16
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 2172744SM

STRAP

$18.99

$

Usually ships in 2-12 days

0

18

Simplicity 1921024SM

CAPSCREW, Hex Hd., 1/2-13 x 2
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

19

Simplicity 1702613SM

SUPPORT ASSY.

$53.99

$

Usually ships in 2-12 days

0

20

Simplicity 1720943SM

DRAWBAR ASSY.

$199.99

$

Usually ships in 2-12 days

0

21

Simplicity 1702578SM

SUPPORT ASSY., Drawbar

$

$

Not available

22

Simplicity 2155037SM

PIN, Round Hd.

$12.99

$

In Stock, only 1 left!

0

23

Simplicity 1960116SM

PIN, Yoke
(Superseded to 5025479YP)

$3.99

$

In Stock, only 2 left!

0

24

Simplicity 1960033SM

CLIP, Spring

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1923027SM

CAPSCREW, Hex Hd., 7/16-14 x 1-3/4
(Superseded to 703171)

$3.99

$

In Stock, Qty 6

0

26

Simplicity 1920677SM

CAPSCREW, Hex Hd., 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 1924940SM

WASHER, Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 1930650SM

NUT, Flange

$5.49

$

In Stock, only 4 left!

0

29

Simplicity 1921176SM

CAPSCREW, Hex Hd., 1/2-13 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

30

Simplicity 1916966SM

WASHER, Lock, 1/2
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

31

Simplicity 1916951SM

NUT, Hex, 1/2-13
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

32

Simplicity 1679731SM

BRACKET ASSY., Hitch

$90.99

$

Usually ships in 2-12 days

0

33

Simplicity 1918213SM

NUT, Hex, 7/16-14

$4.99

$

In Stock, only 2 left!

0

34

Simplicity 1918199SM

WASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

Simplicity 1675766SM

CLEANING INSTRUCTION DECAL

$

$

Not available
