1691607 - Simplicity 42" Turbo Collection System 42" & 48" Turbo Collection System - Blower Group Parts Diagram

42" Turbo Collection System

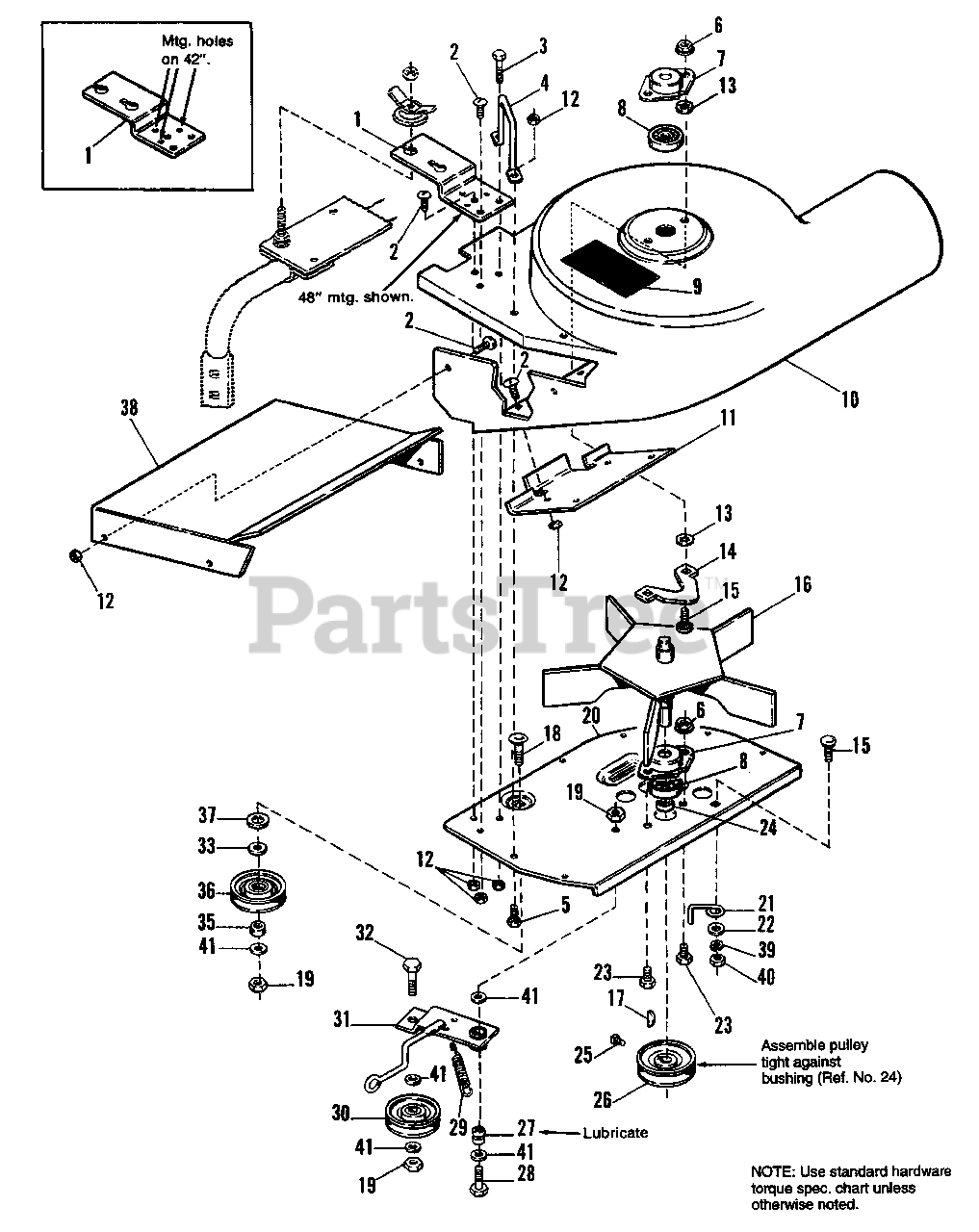

42" & 48" Turbo Collection System - Blower Group Parts Diagram

  • Title

1

Simplicity 1679897SM

MOUNTING PLATE

$18.99

$

Usually ships in 2-12 days

0

2

Simplicity 1921959SM

CAPSCREW, Hex Hd., 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

3

Simplicity 1960346SM

CAPSCREW, Hex, 1/4-20 x 2-1/4

$4.99

$

In Stock, only 1 left!

0

4

Simplicity 1700936SM

STOP, Deflector

$24.99

$

Usually ships in 2-12 days

0

5

Simplicity 1924009SM

CAPSCREW, Hex, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1927557SM

NUT, Range, Lock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1667341SM

BEARING, Retainer
(Superseded to 703155)

$5.99

$

In Stock, Qty 13

0

8

Simplicity 1705897SM

BEARING

$8.49

$

In Stock, Qty 20+

0

9

Simplicity 1700259SM

DECAL, Warning

$27.99

$

Usually ships in 2-12 days

0

10

Simplicity 1702640

HOUSING, Blower

Note: (Incl. Ref. No. 9)

$

$

Not available

11

Simplicity 1679900SM

HOOK, Stoneguard
(Superseded to 1679900ASM)

$107.99

$

Usually ships in 2-12 days

0

12

Simplicity 1930641SM

NUT, Hex Range Whizlock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 2833988

PUSH NUT, Nylon, 1/4-20

$

$

Not available

14

Simplicity 1678811

PLATE, Range

$

$

Not available

15

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

16

Simplicity 1707158SM

FAN ASSY. (5 Blade)

$155.99

$

Usually ships in 2-12 days

0

17

Simplicity 2818312SM

KEY, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 18

0

18

Simplicity 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 9

0

19

Simplicity 1928731SM

NUT, Hex Jam Lock, 3/8-16

$4.99

$

In Stock, only 1 left!

0

20

Simplicity 1702554SM

PLATE, Shroud

$

$

Not available

21

Simplicity 2170397SM

STOP, Belt

$11.99

$

Usually ships in 2-12 days

0

22

Simplicity 1919326SM

WASHER, Plain, 11/32

$4.49

$

In Stock, Qty 6

0

23

Simplicity 1960122SM

CAPSCREW, Thin Hd., 5/16-18 x 3/4

$6.99

$

Usually ships in 2-12 days

0

24

Simplicity 2175647SM

BUSHING

$13.99

$

Usually ships in 2-12 days

0

25

Simplicity 1960619SM

SETSCREW, Socket Hd., 5/16-18 x 3/8

$3.49

$

In Stock, Qty 8

0

26

Simplicity 1706634SM

PULLEY, Driven

$45.99

$

In Stock, only 3 left!

0

27

Simplicity 1666114SM

SPACER
(Superseded to 703140)

$11.99

$

Usually ships in 2-12 days

0

28

Simplicity 1921969SM

CAPSCREW, Hex Hd., 3/8-16 x 1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

29

Simplicity 1679554SM

SPRING, Tension

$7.49

$

Usually ships in 2-12 days

0

30

Simplicity 2174561SM

PULLEY, Idler, Adjustable

$53.99

$

Usually ships in 2-12 days

0

31

Simplicity 1701827SM

IDLER ARM ASSY.
(Superseded to 1701827ASM)

$67.99

$

Usually ships in 2-12 days

0

32

Simplicity 1921210SM

CAPSCREW, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

33

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

34

Simplicity 1935945SM

SCREW, Truss Hd., 1/4-20 x 3/4

$3.49

$

Usually ships in 2-12 days

0

35

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

36

Simplicity 1726348SM

PULLEY, Idler, Fixed

$24.99

$

In Stock, only 4 left!

0

37

Simplicity 1676435SM

WASHER, Plain, 1/2

$8.49

$

Usually ships in 2-12 days

0

38

Simplicity 1702553SM

COVER, Top
(Superseded to 1702553ASM)

$52.99

$

Usually ships in 2-12 days

0

39

Simplicity 1917356SM

WASHER, Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

40

Simplicity 1917372SM

NUT, Hex, 5/16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

41

Simplicity 1924940SM

WASHER, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
