1691606 - Simplicity 48" Turbo Collection System 48" Turbo Collection System - Cover & Support Group Parts Diagram

48" Turbo Collection System

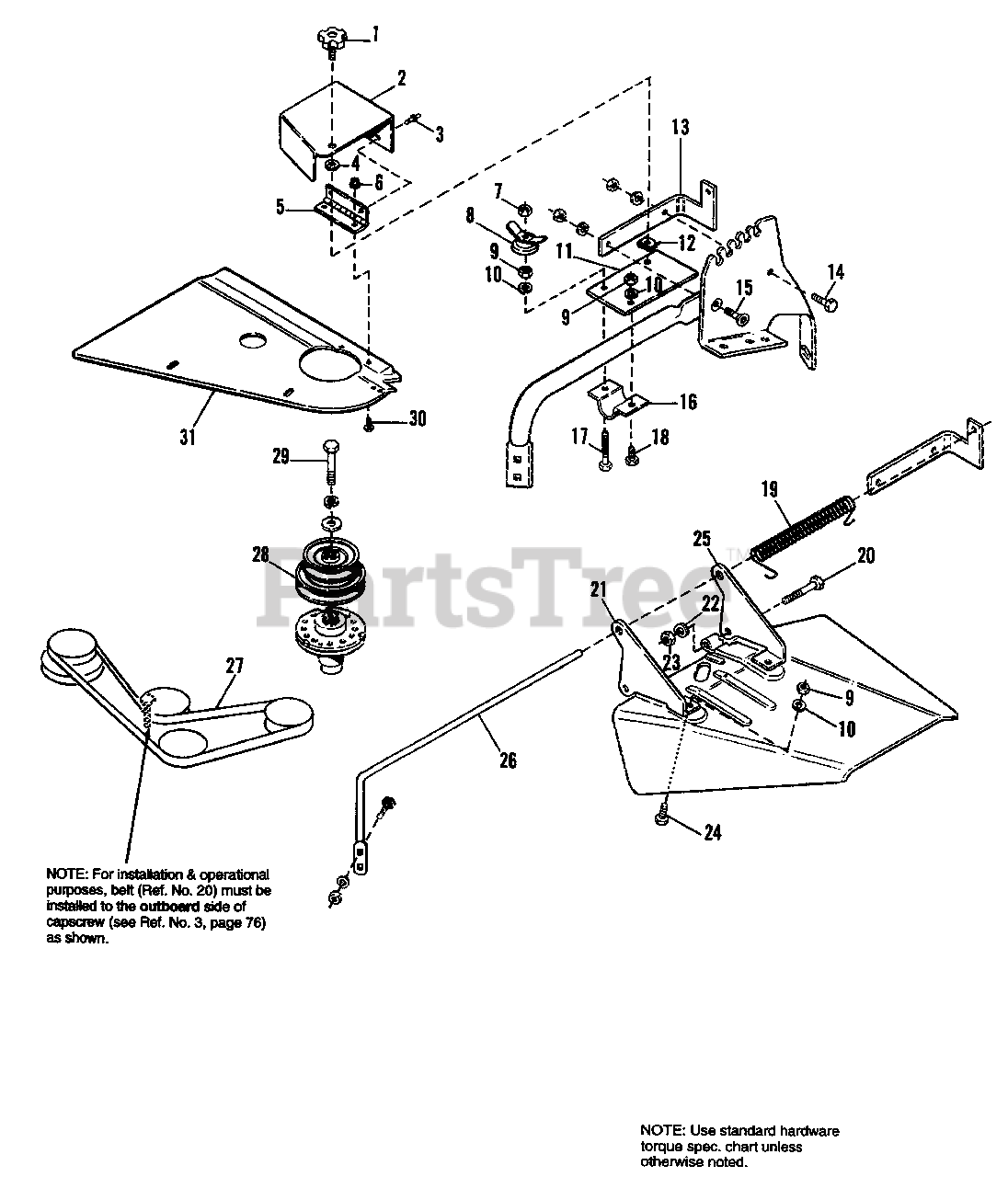

48" Turbo Collection System - Cover & Support Group Parts Diagram

  • Title

1

Simplicity 1700669SM

PLASTIC KNOB

$19.99

$

Usually ships in 2-12 days

0

2

Simplicity 1700728SM

COVER ASSY.

$

$

Not available

3

Simplicity 2828707SM

RIVET

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 2833988

PUSH NUT, 5/16

$

$

Not available

5

Simplicity 1700649SM

HINGE

$25.99

$

Usually ships in 2-12 days

0

6

Simplicity 1928919SM

NUT, Hex Washer, #10-32

$3.99

$

In Stock, only 3 left!

0

7

Simplicity 1923362SM

NUT, Hex Full Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

8

Simplicity 1679163SM

WING NUT ASSY.

$69.99

$

In Stock, only 1 left!

0

9

Simplicity 1917372SM

NUT, Hex Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1700638SM

CLAMP, Upper

$8.99

$

Usually ships in 2-12 days

0

12

Simplicity 2835255

PAL NUT, 5/16-18

$

$

Not available

13

Simplicity 1722049SM

PIVOT ASSY., Deflector

$

$

Not available

14

Simplicity 1921977SM

CAPSCREW, Hex, 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

15

Simplicity 1960486SM

SCREW, Flat Hd., Hex Soc., 5/16-18

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 1679898SM

CLAMP, Lower

$8.49

$

Usually ships in 2-12 days

0

17

Simplicity 1960318SM

CAPSCREW, Hex Hd., 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

19

Simplicity 1700851SM

SPRING, Torsion

$21.99

$

Usually ships in 2-12 days

0

20

Simplicity 1926109

CAPSCREW, Hex Hd., 7/16-14 x 2-1/4

Note: (1691258 & 1691606 only)

$

$

Not available

20

Simplicity 1696110

CAPSCREW, Hex Hd., 7/16-14 x 2-3/4

Note: (1692003 only)

$

$

Not available

21

Simplicity 1700801ASM

PIVOT, Bracket, L.H.

$43.99

$

Usually ships in 2-12 days

0

22

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1918213SM

NUT, Hex, Full, 7/16-14

$4.99

$

In Stock, only 2 left!

0

24

Simplicity 1923325SM

CAPSCREW, Hex, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

25

Simplicity 1700802ASM

PIVOT, Bracket, R.H.

$55.99

$

Usually ships in 2-12 days

0

26

Simplicity 1700800SM

ROD, Hinge

$30.99

$

Usually ships in 2-12 days

0

27

Simplicity 1679914SM

V-BELT
(Superseded to 1734012SM)

$40.99

$

Usually ships in 2-12 days

0

28

Simplicity 1679903ASM

PULLEY ASSY.

Note: (Arbor)

$148.99

$

Usually ships in 2-12 days

0

29

Simplicity 2827120SM

CAPSCREW, Hex Hd., 7/16-14 x 2-1/4

$

$

Not available

30

Simplicity 922121

SCREW, Rd. Hd., Mach., #10-32 x 3/8

$

$

Not available

31

Simplicity 1700013SM

COVER, L.H., Mower
(Superseded to 1700013AYP)

$98.99

$

Usually ships in 2-12 days

0
