1691531 - Simplicity Electric Lift Kit Power Lift Assy. Parts Diagram

Electric Lift Kit

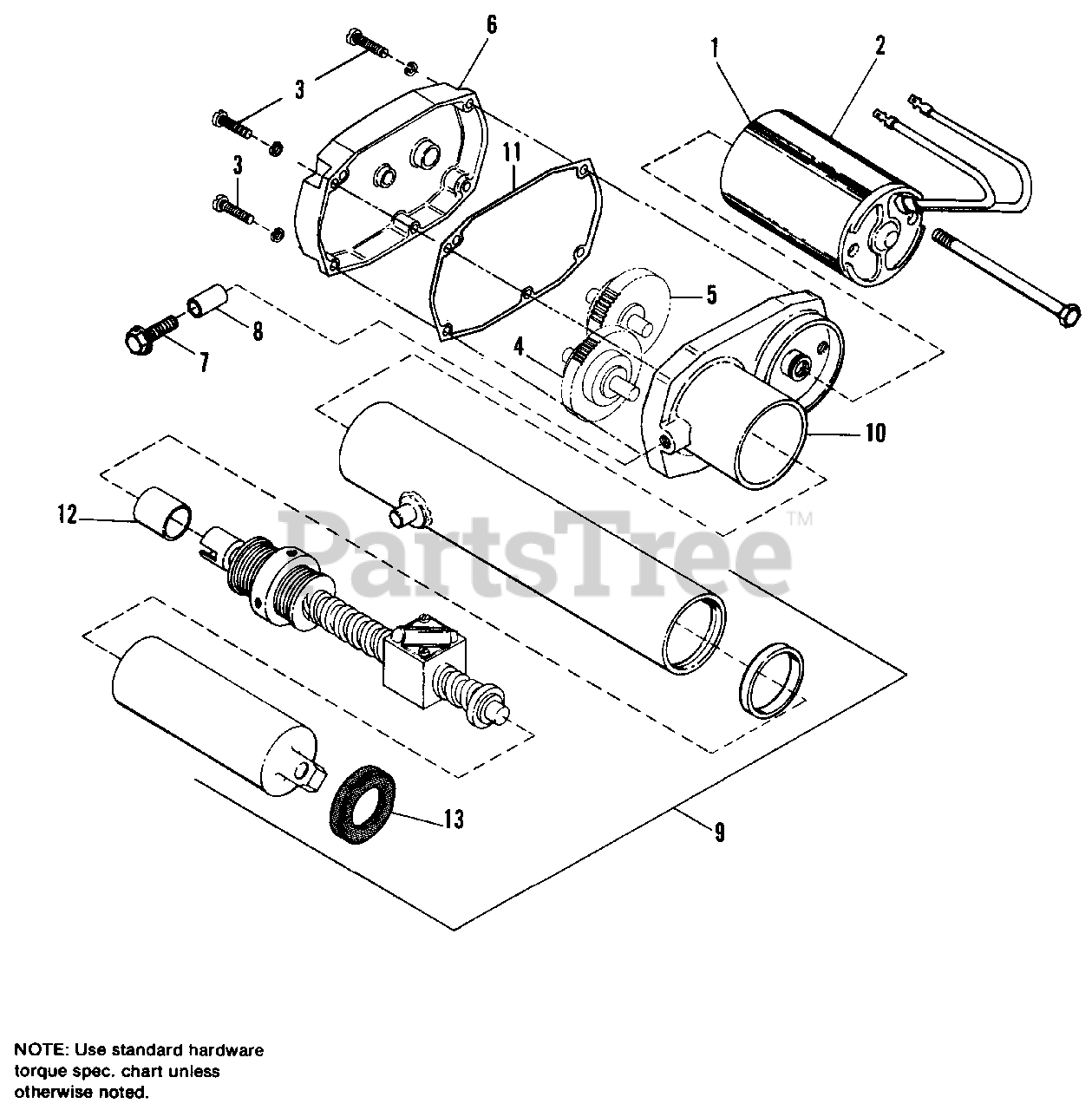

Power Lift Assy. Parts Diagram

  • Title

1

Simplicity 1664756SM

BRUSH, w/Spring Set (Motor)

$

$

Not available

2

Simplicity 1663966

12 VOLT DC MOTOR

$

$

Not available

3

Simplicity 928589

SCREW, Fillister Hd.

$

$

Not available

4

Simplicity 1709105SM

GEAR ASSY., 4th

$780.99

$

Usually ships in 2-12 days

0

5

Simplicity 1709105SM

GEAR ASSY., 2nd & 3rd

$780.99

$

Usually ships in 2-12 days

0

6

Simplicity 1664757

COVER, Housing

$

$

Not available

7

Simplicity 1605773

CAPSCREW, Thd. Forming

$

$

Not available

8

Simplicity 1605778SM

PIN, Drive

$

$

Not available

9

Simplicity 1667787

BALL SCREW ASY.

$

$

Not available

10

Simplicity 1664758

HOUSING, Motor

$

$

Not available

11

Simplicity 1667788SM

GASKET, Cover

$29.99

$

Usually ships in 2-12 days

0

12

Simplicity 1605779

SLEEVE

$

$

Not available

13

Simplicity 1703531SM

SEAL, Rubber

$9.49

$

Usually ships in 2-12 days

0
