Cart Collector

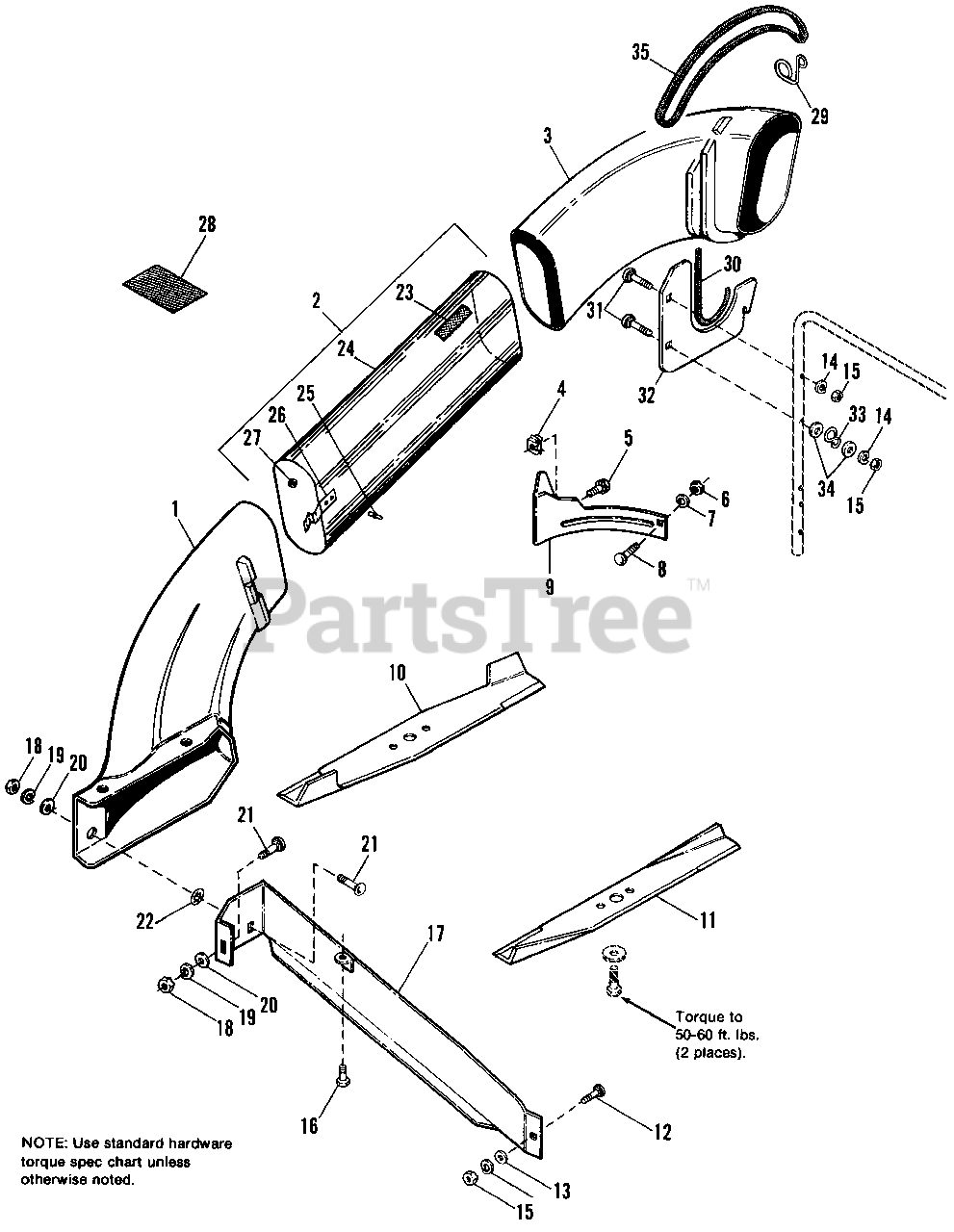

Cart Collector - Tube & Blade Group Parts Diagram

  • Title

1

Simplicity 1705085SM

ADAPTOR

$109.99

$

Usually ships in 2-12 days

0

2

Simplicity 1676881SM

TUBE ASSY.

$

$

Not available

3

Simplicity 1669793SM

ELBOW

$113.99

$

Usually ships in 2-12 days

0

4

Simplicity 2820462

NUT, Retainer, 1/4-20

$

$

Not available

5

Simplicity 1931646SM

SCREW, Whizlock, 1/4-20 x 1/2
(Superseded to 7091579SM)

$3.99

$

In Stock, only 2 left!

0

6

Simplicity 1916622SM

NUT, Hex, 1-4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

8

Simplicity 1960252SM

CARRIAGE BOLT, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

9

Simplicity 1672171A

BAFFLE, Deflector Side

$

$

Not available

10

Simplicity 1671565ASM

BLADE, R.H.
(Superseded to 1726357ASM)

$27.99

$

In Stock, Qty 20+

0

11

Simplicity 1671593ASM

BLADE, L.H.

$24.99

$

Usually ships in 2-12 days

0

12

Simplicity 1931334SM

CARRIAGE BOLT, 5/16-18 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

13

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

15

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

17

Simplicity 1656053ASM

BAFFLE ASSY., Discharge

$84.99

$

Usually ships in 2-12 days

0

18

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

20

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 1931348SM

CARRIAGE BOLT, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 2831942

NUT, Push On

$

$

Not available

23

Simplicity 1675766SM

DECAL, (Cleaning Instructions)

$

$

Not available

24

TUBE (See Ref. No. 2)

$

$

Not available

25

Simplicity 2828706

RIVET

$

$

Not available

26

Simplicity 1673757

SPRING, Tube, Retaining

$

$

Not available

27

Simplicity 2810531

WASHER, Rivet

$

$

Not available

28

Simplicity 1676923SM

DECAL, Warning, Cover

$44.99

$

Usually ships in 2-12 days

0

29

Simplicity 1672688SM

HOOK, Strap

$18.99

$

Usually ships in 2-12 days

0

30

Simplicity 1673874SM

TRIM

$

$

Not available

31

Simplicity 1931338SM

BOLT, Rd. Hd., 5/16-18 x 1-3/4
(Superseded to 703175)

$3.99

$

In Stock, only 1 left!

0

32

Simplicity 1672335

BRACKET, Saddle

$

$

Not available

33

Simplicity 1672689SM

"S" HOOK

$31.99

$

Usually ships in 2-12 days

0

34

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 5

0

35

Simplicity 1665872SM

STRAP, Rubber

$11.99

$

In Stock, Qty 7

0
